What is the difference between 6061 and 5754 aluminum?

6061 is a heat-treatable Al-Mg-Si alloy with higher strength (T6 temper: 310 MPa) but lower corrosion resistance in marine environments. 5754 is a non-heat-treatable Al-Mg alloy (2.6-3.6% Mg) with superior seawater corrosion resistance and better weldability. 6061 is used in aerospace, while 5754 is preferred for marine applications.

What is the difference between 5052 and 5754 Aluminium?

5754 has higher magnesium content (2.6-3.6% vs 2.2-2.8% in 5052) providing 20% higher strength (H34: 240-280 MPa vs 210-250 MPa). Both have excellent corrosion resistance, but 5754 offers better performance in seawater environments. 5052 has slightly better formability and is more economical.

What is the difference between Aluminium 1050 and 5754?

1050 is commercially pure aluminum (99.5% Al) with low strength (65-95 MPa) but excellent corrosion resistance. 5754 is an alloy with medium-high strength (190-305 MPa) and superior seawater resistance due to its magnesium content (2.6-3.6%). 1050 is used in chemical tanks, while 5754 is for structural marine components.

What is 5754 aluminum equivalent to?

5754 aluminum equivalents include: EN-AW 5754 (European standard), AlMg3 (ISO designation), and A95754 (UNS number). It has similar properties to 5054 and 5454 alloys but with optimized seawater corrosion resistance.

Is 5754 aluminum machinable?

5754 has moderate machinability (rating: 50% compared to free-cutting brass). It requires sharp carbide tools and produces long chips. Coolants are recommended for extended tool life. Not ideal for high-precision machining applications.

What is the difference between Al 5754 and Al 5083?

5083 has higher magnesium content (4.0-4.9%) providing greater strength (290-340 MPa) for extreme marine/military applications. 5754 (Mg:2.6-3.6%) offers better formability and cost efficiency for general marine use. 5083 requires special welding procedures, while 5754 has excellent weldability.

What is AMS 5754 material?

There is no AMS 5754 specification. For 5754 aluminum, the primary aerospace specification is AMS 4025, which covers chemical composition and mechanical properties for sheet and plate products used in aerospace applications.

What is the density of 5754 aluminum?

The density of 5754 aluminum is 2.67 g/cm³ - approximately 1/3 the density of steel. This lightweight property makes it ideal for transportation applications where weight reduction is critical.

What is the difference between Aluminium 5754 and 5005?

5005 contains 0.5-1.1% magnesium with lower strength (tensile: 125-145 MPa) primarily used for decorative/architectural applications. 5754 has 2.6-3.6% Mg with significantly higher strength (190-305 MPa) and is engineered for structural marine/industrial applications.

What is 5754 aluminium used for?

Key applications include Marine (ship hulls H112, anti-slip decks H114), Automotive (body panels O temper, fuel tanks H111), Chemical (storage tanks O/H114, pipelines), Construction (building facades H24 anodized), and Energy (battery housings H18).

Welcome! Take a virtual stroll through our factory – no shoes required! Let's go

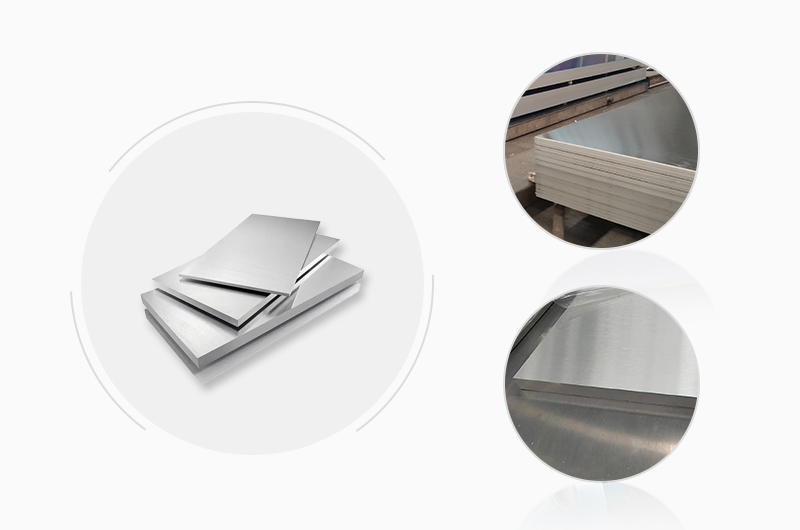

5754 Aluminum Sheet and Plate Background

DNV/ABS/BV certified for marine applications

Excellent for deep drawing applications (O temper)

From soft O to full-hard H18 for various strength requirements

5754 Aluminum Sheet and Plate

Last updated Aug. 1, 2025

Medium-to-high-strength Al-Mg alloy (2.6-3.6% Mg) optimized for seawater corrosion resistance and formability. Ideal for marine structures, automotive body panels, and chemical storage tanks. Features customizable dimensions (0.2-250mm thickness) and specialized tempers for optimal performance in demanding environments.

Alloy Series:: 5000 Series (Al-Mg)
Temper Options:: O, H111, H112, H114, H22, H24, H26, H32, H34, H36, H18
Thickness Range:: 0.2-250mm
Width Range:: 100-2650mm
Max Length:: 12000mm
Key Standards:: ASTM B209, EN 485-2, EN 573-3, AMS 4025

Free Samples Get Quote

What is 5754 Aluminum

Overview & Properties

Specifications

Technical Parameters

Popular 5754 Products

O/H111/H112/H114/H18

5754 vs Similar Alloys

vs 5052/5083/6061

Composition & Properties

Chemical, physical, mechanical

Precision Processing

Machining & Welding

5754 Stock Inventory

Available Sizes

Related Products

Tread plate, oil tanker sheet

Applications

Industry Uses

Packaging & Shipping

Standard seaworthy packaging

Why Choose Us?

Industry-leading expertise, quality assurance

FAQ

Common Questions

Click any section to jump directly to that content

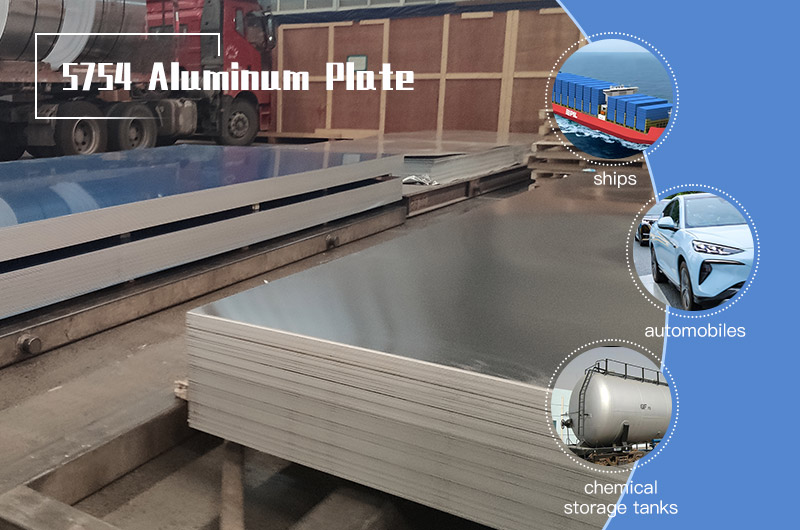

What is 5754 Aluminum Sheet and Plate?

Medium-to-high-strength marine aluminum with exceptional seawater resistance, equivalent designations, and superior cold work performance.

5754 is a medium-to-high-strength Al-Mg alloy (Mg:2.6-3.6%) with exceptional seawater corrosion resistance and weldability. As a non-heat-treatable alloy, it achieves strength through cold working processes. Available in multiple tempers (O/H111/H22/H114 etc.), it balances strength and formability for marine, automotive, and chemical applications.

Standard System	Designation	Description
ASTM	B209	US Standard for Sheet/Plate
EN	EN AW-5754	European Standard (EN 485-2/573-3)
AMS	4025	Aerospace Material Specification
ISO	12215-5	Marine Safety Standard
Classification	DNV/ABS/BV	Marine Certification Bodies

Seawater Corrosion Resistance: Exceptional resistance in marine environments due to optimized Mg content (2.6-3.6%) and controlled Mn/Cr ratios (≤0.6%).

Multi-Temper Versatility: From soft O temper (elongation >22%) to full-hard H18 (tensile strength ≥290 MPa), meeting diverse industrial demands.

Superior Weldability: Maintains Maintains 95% of base metal strength post-weld with TIG/MIG/resistance techniques.

Cold Work Performance: Excellent formability for bending, stamping, and spinning with 30% less springback than 6xxx alloys.

Specifications

Complete dimensional ranges, multi-temper options, surface treatments, and marine certifications for medium-strength 5754 aluminum alloy.

Available Dimensions

0.2-250

Thickness Range (mm)

100-2650

Width Range (mm)

≤12000

Max Length (mm)

Available Tempers

O (Annealed)H111H112H114H22/H32H24/H34H26/H36H18

Surface Treatments

Mill Finish

Anodized

Polished

Brushed

Checkered

Embossed

Etching

Laminated Film

Bright

Compliance Standards

ASTM B209AMS 4015/4016/4017EN 485-2EN 573-3AMS 4025ISO 12215-5EN 14286IATF16949

Marine Certifications

DNVCCSLRNKABSBVKR

Popular 5754 Aluminum Sheet and Plate

O, H111, H112, H114, H18, H22/H32, H24/H34, and H26/H36 temper grades for automotive panels, marine structures, and industrial equipment

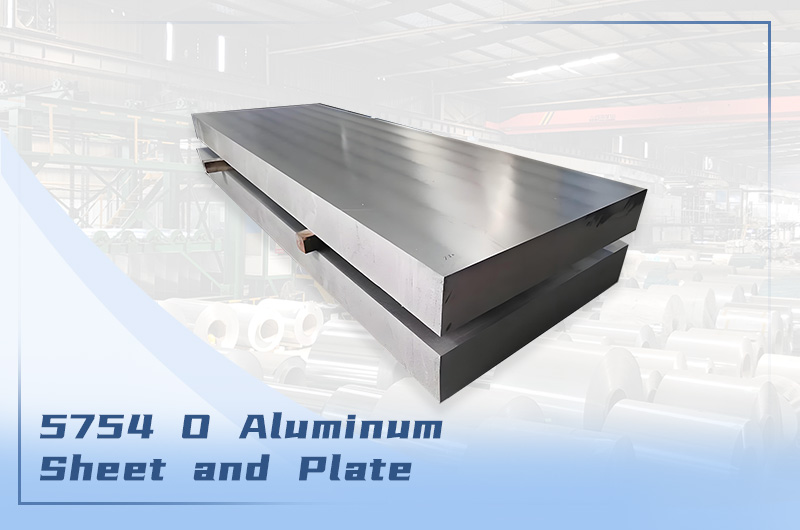

5754-O Aluminum Sheet and Plate

Highest elongation for deep drawing, ideal for car doors/hoods and auto body panels.

Get Quote

H111

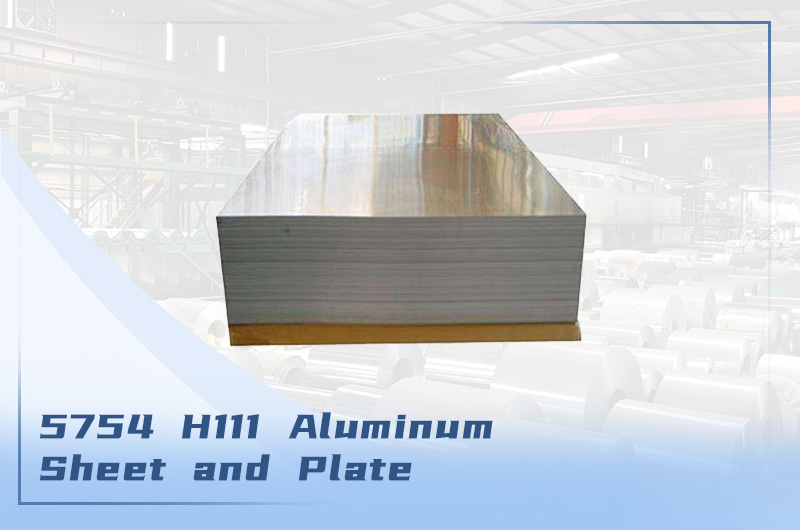

5754-H111 Aluminum Sheet and Plate

Slightly hardened, stabilized by cold rolling+annealing, for auto body and oil tankers.

Get Quote

H112

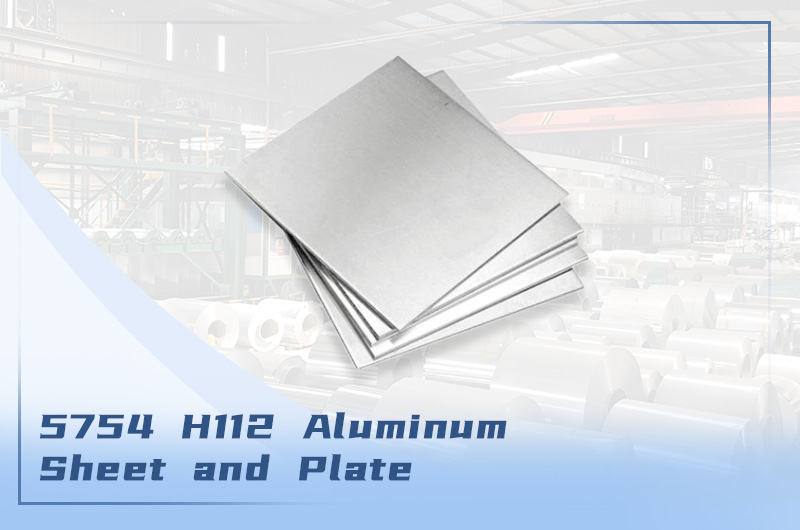

5754-H112 Aluminum Sheet and Plate

Naturally aged; higher strength for ship structures (DNV/ABS/BV/LR/KR certified).

Get Quote

H114

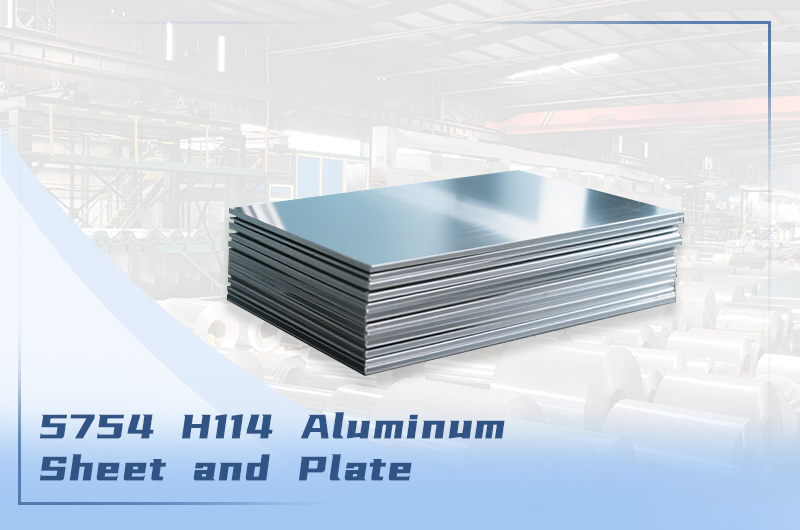

5754-H114 Aluminum Sheet and Plate

Corrosion-optimized for ship anti-slip decks with five-rib pattern.

Get Quote

H18

5754-H18 Aluminum Sheet and Plate

Full-hard temper (tensile strength ≥290 MPa) for battery housings and machine guards.

Get Quote

H22/H32

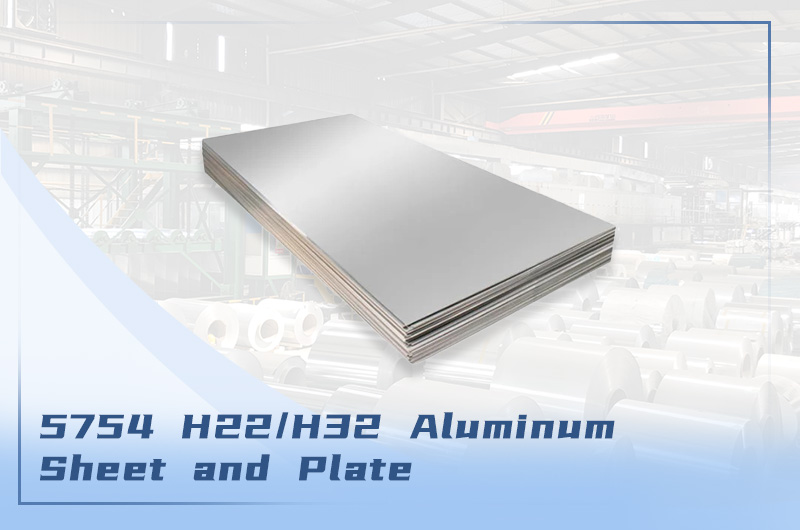

5754-H22/H32 Aluminum Sheet and Plate

Quarter-hard strength (220-270 MPa) for fuel tanks and truck trailers.

Get Quote

H24/H34

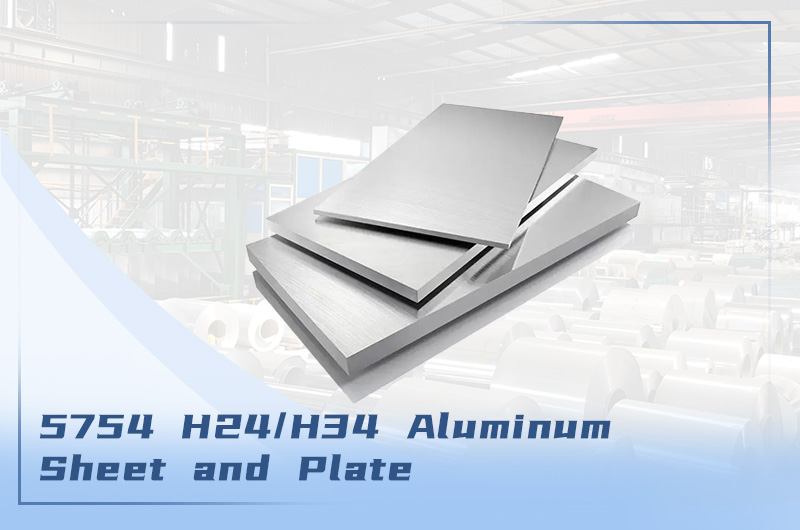

5754-H24/H34 Aluminum Sheet and Plate

Half-hard strength (240-280 MPa) for building frames and pressure vessels.

Get Quote

H26/H36

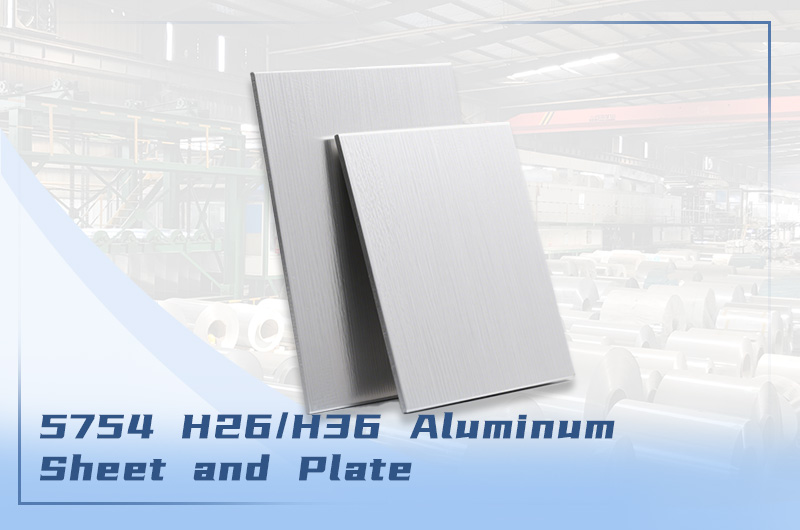

5754-H26/H36 Aluminum Sheet and Plate

Three-quarter-hard (265-305 MPa) for cargo box reinforcements.

Get Quote

Need Custom Specifications?

We provide custom 5754 aluminum sheet and plate in various tempers, thicknesses, and surface finishes

Get Quote Technical Support

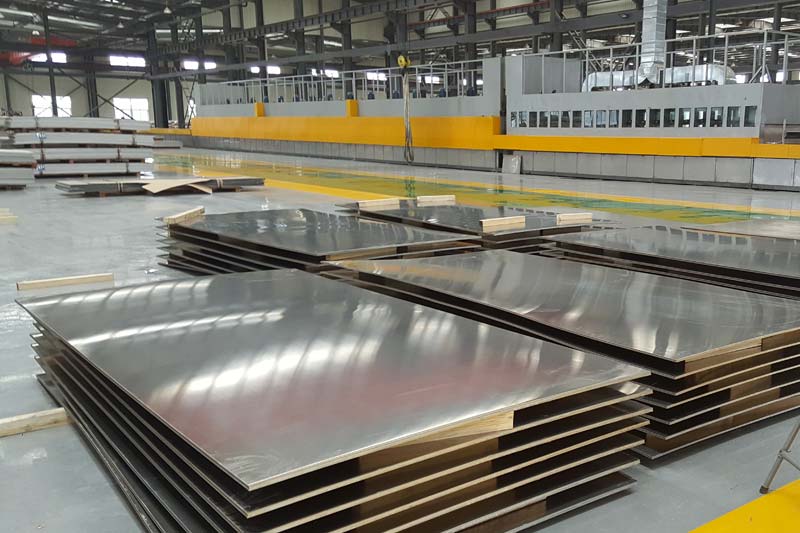

5754 vs. Similar Alloys

Comparative analysis of marine-grade 5754 aluminum against similar alloys

5754 vs 5052 Aluminum Plate

Property	5754	5052
Main Elements	Mg(2.6-3.6%)	Mg(2.2-2.8%)
Strength	Medium-High (190-305 MPa)	Medium (210-270 MPa)
Corrosion Resistance	Excellent (seawater/marine)	Good (general humidity)
Ductility	Slightly lower	Excellent
Cost	Higher	Lower (most economical)
Common Applications	Auto structural parts (upgraded strength)	Electronics, lightweight panels

Selection Guidelines

Choose 5754: When higher strength and superior seawater corrosion resistance are required

Choose 5052: For cost-sensitive projects with excellent formability requirements

5754 vs 5083 Aluminum Plate

Property	5754	5083
Main Elements	Mg(2.6-3.6%)	Mg(4.0-4.9%)
Tensile Strength	190-305 MPa	290-340 MPa (H116)
Formability	Better (less Mg)	Lower
Corrosion Resistance	Excellent	Excellent (extreme marine)
Cost	Medium	High (+30%, military-grade)
Typical Uses	General ships, transport tanks	Warships, submarines

Selection Guidelines

Choose 5083: For extreme marine environments and military applications

Choose 5754: When better formability and cost efficiency are priorities

5754 vs 6061 Aluminum Plate

Property	5754	6061
Alloy Type	Non-heat-treatable Al-Mg	Heat-treatable Al-Mg-Si
Corrosion Resistance	Superior (marine/humid)	Good
Strength	Medium (190-305 MPa)	High (up to 310 MPa T6)
Heat Treatment	Not applicable	Can be strengthened
Weldability	Excellent (minimal strength loss)	Good (HAZ weakness)
Typical Applications	Marine/chemical equipment	Aerospace, structural frames

Selection Guidelines

Choose 6061: When maximum strength and heat treatability are required

Choose 5754: For superior corrosion resistance in marine/chemical environments

Chemical Composition & Properties

Balanced Mg-Mn alloy with 2.6-3.6% magnesium content, engineered for automotive body panels and marine applications

Chemical Composition (wt%)

Element	Content (%)	Role
Mg (Magnesium)	2.6-3.6	Core element; enhances strength/corrosion resistance
Mn (Manganese)	≤0.50	Grain refinement, corrosion resistance
Cr (Chromium)	≤0.30	Inhibits intergranular corrosion (Mn+Cr≤0.6%)
Si (Silicon)	≤0.40	Impurity control limit
Fe (Iron)	≤0.40	Impurity control limit
Cu (Copper)	≤0.10	Strict limit; avoids reduced corrosion resistance
Zn (Zinc)	≤0.20	Impurity control limit
Other	≤0.15	Refines as-cast structure
Al (Aluminum)	Balance	-

Key Note: Controlled Mg content provides superior seawater corrosion resistance while maintaining formability.

Physical Properties

Parameter	Value	Unit
Density	2.66	g/cm³
Melting Range	600-645	°C
Thermal Conductivity	140	W/(m·K)
Electrical Conductivity	34%	IACS

Cold Working: Achieves strength through cold working; not heat-treatable.

Temperature Resistance: Stable performance up to 100°C.

Mechanical Properties

Temper	Thickness (mm)	Tensile (MPa)	Yield (MPa)
O/H111	0.2-50.0	190-240	≥80
H112	6.0-12.5	≥190	≥100
H112	>12.5-25.0	≥190	≥90
H112	>25.0-40.0	≥190	≥80
H12	0.2-40.0	220-270	≥170
H14	0.2-25.0	240-280	≥190
H16	0.2-6.0	265-305	≥205
H18	0.2-3.0	≥290	≥250
H22/H32	0.2-40.0	220-270	≥130
H24/H34	0.2-25.0	240-280	≥160

Corrosion Resistance: Exceptional resistance to seawater and industrial chemicals.

Weldability: Compatible with TIG/MIG/resistance welding; stable weld strength.

Formability: Suitable for bending, stamping, spinning.

Precision Processing Solutions

Optimized capabilities for marine-grade 5754 aluminum with superior seawater corrosion resistance

Machining Guidelines

Tooling Requirements

Requires sharp tools due to moderate machinability; carbide tools recommended for best results

Chip Control

Produces long chips during machining; proper chip management is essential

Cooling fluids recommended to extend tool life and prevent material build-up

Forming Capabilities

Cold Working Performance

Achieves strength through cold working processes; not heat-treatable

Forming Methods

Bending:Excellent in O/H111 tempers

Stamping:Suitable for automotive parts

Spinning:Ideal for tank components

Forming Advantages

30% less springback than 6xxx alloys

Excellent deep drawing capability in O temper

Suitable for complex shapes in automotive applications

Welding & Finishing

Excellent Weldability

Compatible with TIG/MIG/resistance welding; maintains 95% of base metal strength post-weld

Recommended Methods

TIG Welding:For precision joints

MIG Welding:For high-speed production

Resistance Welding:For auto body panels

Surface Treatments

Anodizing:For building facades (30-year durability)

Polishing:Mirror finish (Ra≤0.3μm) for food applications

Laminated Films:Blue/clear/black&white (50μm/80μm)

Marine Certification

Certified by DNV, ABS, BV, LR, KR classification societies

Complies with ISO 12215-5 Marine Safety Standard

H112 temper certified for ship structural applications

5754 Aluminum Sheet in Stock

Comprehensive inventory of 5754 aluminum sheets and plates in various tempers, thicknesses, and dimensions

Description	Standard	Temper	Thickness (IN)	Width (IN)	Length (IN)
0.03"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.03	47.2	Custom
0.04"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.04	78.7	Custom
0.05"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.05	94.5	Custom
0.06"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.06	47.2	Custom
0.08"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.08	94.5	Custom
0.10"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.10	78.7	196.9
1/8"t 5754 O/H111 Aluminum Sheet	ASTM B209	O/H111	0.125	78.7	393.7
0.16"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.16	78.7	Custom
0.20"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.20	102.4	Custom
1/4"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.25	78.7	Custom
0.31"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.31	102.4	236.2
0.39"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.39	102.4	Custom
0.47"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.47	137.8	Custom
0.55"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.55	137.8	236.2
5/8"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.625	102.4	236.2
0.79"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.79	137.8	Custom
0.98"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	0.98	137.8	236.2
1.18"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	1.18	149.6	236.2
L.57"t 5754 O/H111 Aluminum Plate	ASTM B209	O/H111	1.57	149.6	Custom

Custom Sizes

Custom cutting services available for 5454 aluminum sheets and plates to meet your project specifications.

Quality Assured

All 5454 materials include mill test certificates and comply with ASTM B209, EN 573, and marine-grade certifications.

Fast Delivery

Quick turnaround for 5454 aluminum sheets with efficient global logistics for marine and industrial projects.

Custom Sizes

Custom cutting services available for 5754 aluminum sheets and plates to meet your project specifications.

Quality Assured

All 5754 materials include mill test certificates and comply with ASTM B209 and marine-grade certifications (DNV/ABS/BV).

Fast Delivery

Quick turnaround for 5754 aluminum sheets with efficient global logistics for marine and industrial projects.

Applications

Marine & Offshore

5754 aluminum provides exceptional seawater corrosion resistance for marine environments

Ship Structures

Hull structures (H112 temper)
Ship tanks and pipes (O temper)
Offshore platform supports (H32/H111)
Ship anti-slip decks (H114 five-rib plate)

Marine Components

H114 aluminum tread plates (2-10mm)
H112 ultra-wide marine plates (3800mm)
DNV/ABS/BV certified components
Refrigerated truck floors (H114)

Automotive & Transport

Lightweight and corrosion-resistant solutions for transportation

Automotive Body

Car doors/hoods (O temper, deep drawing)
Auto body panels (O/H111 temper)
Fuel tanks (H111/O, EN14286 anti-leak)
Battery housings (H18, ≤3mm thickness)

Transportation Equipment

Truck trailers (H22/H32, 30% lighter)
Cargo box reinforcements (H26/H36)
Tanker partitions (H22 laser-cut)
High-speed rail sound barriers (H26)

Chemical & Energy

Resistance to chemicals and corrosion for industrial applications

Chemical Equipment

Chemical tanks (O/H114, resists acids/alkali)
Pressure vessels (H24/H34, low/medium pressure)
Oil pipelines (H111, sulfide corrosion resistance)
Food processing tanks (O temper + mirror polish)

Energy Solutions

Battery enclosures (H18, new energy vehicles)
Electrical enclosures (H26 + conductive oxidation)
Solar panel frames
Heat exchanger components

5754 construction application background

Construction & Structures

Durable and corrosion-resistant solutions for building environments

Building Components

Building facades (H24 + anodized)
Industrial frames (H34, yield strength≥160 MPa)
Curtain wall panels (H24 anodized, 30-year)
Roofing and cladding systems

Special Applications

Machine guards (H18, lighter than steel)
Container floors (H114 five-rib + coating)
Refrigerated truck linings (H114)
Structural supports and reinforcements

Packaging & Shipping

Robust protection system ensuring your 5754 aluminum arrives in perfect condition.

Standard Marine Packaging

Fumigated Wooden Pallets: IPPC certified for international shipping
PVC Waterproof Film: Full-wrap protection against moisture
Impact-Resistant Steel Corners: 50G collision tested protection
Optimized Loading: Max 2 tons/pallet; stackable in 3 layers
Cost Efficiency: Reduces shipping costs by 40%

Why Partner With Us?

Certified marine & defense aluminum solutions with precision processing and rigorous quality control.

Industry Certifications

Marine Grade: DNV/LR/ABS/GL/KR/NK certified for shipbuilding
Military Standard: MIL-DTL-46027 compliant armor plates
Precision Processing: Laser cutting (±0.2mm tolerance)
Surface Finishing: Anodizing (Ra 0.8μm mirror finish)

Ready-to-Ship Inventory

5,000+ Tons: Immediate availability for urgent projects
Marine Stock: 6.35mm H116 ship plate ready for cutting
Processing Capacity: 200+ tons daily cutting/forming
Global Logistics: 72-hour dispatch to major ports

Military-Grade QC

OES Spectroscopy: Element deviation ≤0.01%
Ultrasonic Testing: Defect detection >99.9%
Standards Compliance: ASTM/EN/MIL certified production
Documentation: Full mill test certificates provided

Note: All technical parameters align with ASTM, EN, and MIL standards. For full inventory or certification documents, contact our technical team.

5754 Aluminum FAQ

Authoritative answers about 5754 aluminum automotive applications, seawater resistance, and machining characteristics

Ready to Order 5454 Aluminum?

Contact our experts for custom quotes and technical support.

Get Quote Request Samples

5754 Aluminum Sheet and Plate

Table of Contents

What is 5754 Aluminum

Specifications

Popular 5754 Products

5754 vs Similar Alloys

Composition & Properties

Precision Processing

5754 Stock Inventory

Related Products

Applications

Packaging & Shipping

Why Choose Us?

FAQ

What is 5754 Aluminum Sheet and Plate?

Specifications

Available Dimensions

Available Tempers

Surface Treatments

Compliance Standards

Marine Certifications

Popular 5754 Aluminum Sheet and Plate

5754-O Aluminum Sheet and Plate

5754-H111 Aluminum Sheet and Plate

5754-H112 Aluminum Sheet and Plate

5754-H114 Aluminum Sheet and Plate

5754-H18 Aluminum Sheet and Plate

5754-H22/H32 Aluminum Sheet and Plate

5754-H24/H34 Aluminum Sheet and Plate

5754-H26/H36 Aluminum Sheet and Plate

5754 vs. Similar Alloys

5754 vs 5052 Aluminum Plate

Selection Guidelines

5754 vs 5083 Aluminum Plate

Selection Guidelines

5754 vs 6061 Aluminum Plate

Selection Guidelines

Chemical Composition & Properties

Chemical Composition (wt%)

Physical Properties

Mechanical Properties

Precision Processing Solutions

Machining Guidelines

Forming Capabilities

Forming Advantages

Welding & Finishing

Marine Certification

5754 Aluminum Sheet in Stock

Custom Sizes

Quality Assured

Fast Delivery

Custom Sizes

Quality Assured

Fast Delivery

Related 5754 Aluminum Products

5754 H114 Tread Plate

5754 O Auto Body Sheet

5754 H111 Oil Tanker Sheet

5754 H112 Ultra-Wide Marine Plate

5754 H18 Battery Enclosure Sheet

5754 H24 Anodized Curtain Wall Panel

Applications

Marine & Offshore

Ship Structures

Marine Components

Automotive & Transport

Automotive Body

Transportation Equipment

Chemical & Energy

Chemical Equipment

Energy Solutions

Construction & Structures

Building Components

Special Applications

Packaging & Shipping

Standard Marine Packaging

Shipping Standards

Why Partner With Us?

Industry Certifications

Ready-to-Ship Inventory
