Aluminum Sheet and Plate
Worthwill is a high-quality manufacturer, supplier, and stockist of hot-rolled aluminum plates, aluminum sheets, cast aluminum plates, and forged aluminum plates.

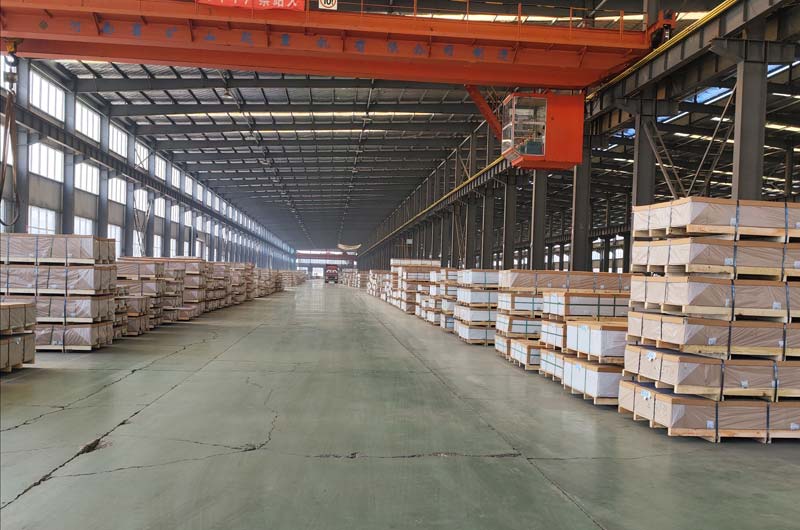

The company specializes in aluminum sheets and plates with alloy series including 1000, 2000, 3000, 5000, 6000, and 7000 series. With a standing inventory of thousands of tons, Worthwill can rapidly meet diverse customer demands.
- Alloys:
- 1050, 1060, 1100, 3105, 3003, 3004, 5052, 5754, 6061.
- Thickness:
- 0.2mm - 250mm.
- Width:
- 500mm - 2650mm.
- Surface Treatment:
- Polished, mill finished, brushed, anodized, color coated, mirror finish.
- Standards: :
- ASTM B209, EN 485, GB/T3880, GJB1541,etc.
Alloys & Specifications
We supply a full range of aluminum sheet and plate products from 1000 to 7000 series, covering all major alloys and tempers. Each series is engineered for distinct performance characteristics to meet the demands of aerospace, marine, automotive, construction, and electronics industries. Not sure about the difference between aluminum sheet and plate? Check our detailed guide.

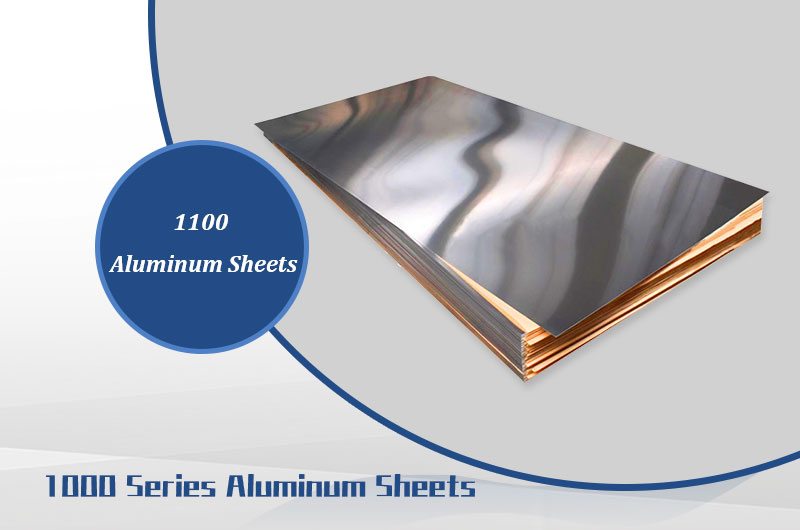

1000 Series Aluminum Sheets
- Alloy: 1050, 1060, 1070, 1100, 1200 etc.
- Temper: O, H12, H14, H16, H18, H19, H22, H24, H26, etc.
- Thickness: 0.2mm - 250mm
- Width: 500mm - 2650mm
- Length: 500mm - 12000mm
- Standards: ASTM B209, EN 573, EN 485, AMS 4001, GB/T3880, etc.
- Features: Exceptional purity, superior softness, excellent electrical conductivity, and outstanding formability.

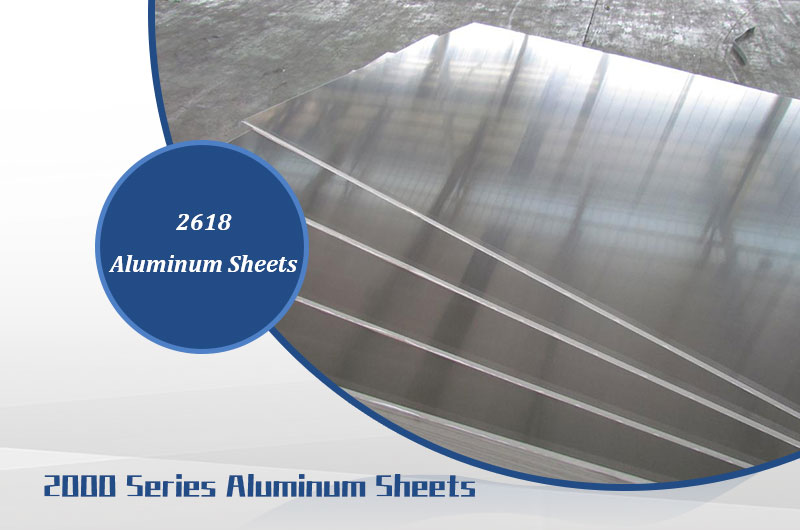

2000 Series Aluminum Plates
- Alloy: 2014, 2024, 2219, 2618 etc.
- Temper: O, T3, T4, T6, T351, T451, T42, T651, T851, etc.
- Thickness: 0.2mm - 250mm
- Width: 1000mm - 2650mm
- Length: 2000mm - 12000mm
- Standards: ASTM B209, EN 573, EN 485, AMS 4001, GB/T3880, GJB1541, etc.
- Features: High strength, excellent machinability, good fatigue resistance, but relatively poor corrosion resistance.

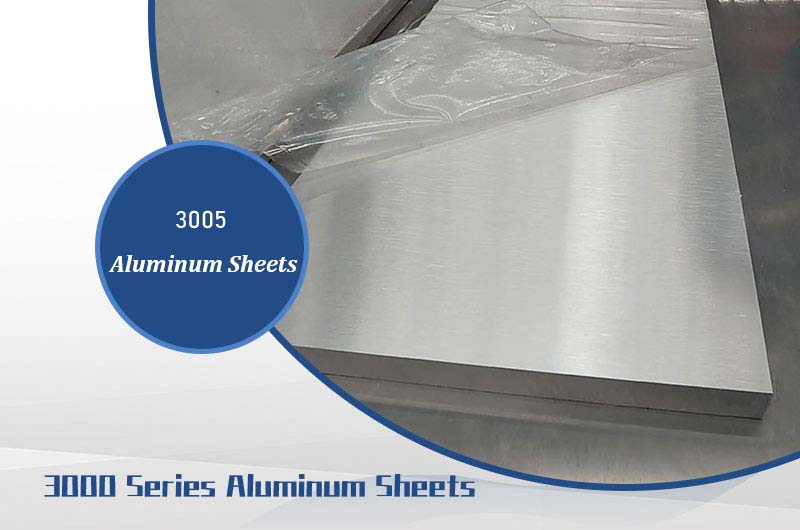

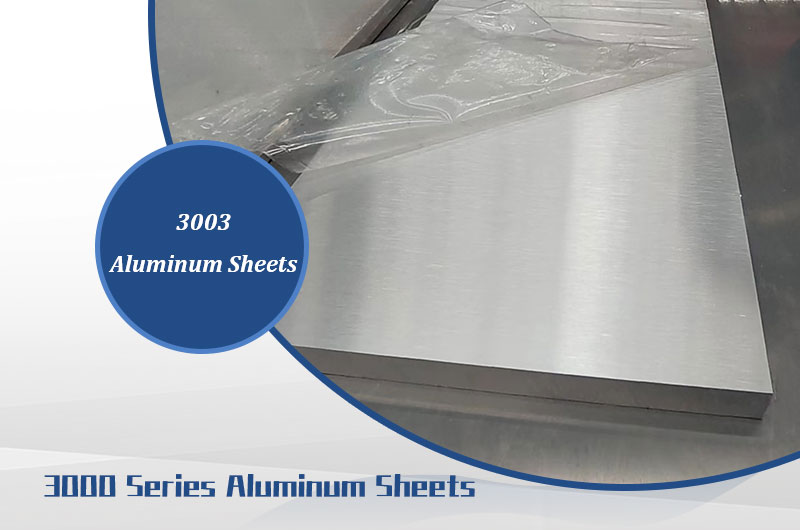

3000 Series Aluminum Sheets
- Alloy: 3003, 3004, 3005, 3105 etc.
- Temper: O, H12, H14, H16, H18, H19, H22, H24, H26, etc.
- Thickness: 0.2mm - 200mm
- Width: 500mm - 2650mm
- Length: 500mm - 20000mm
- Standards: ASTM B209, EN 573, EN 485, AMS 4001, GB/T3880, etc.
- Features: Excellent corrosion resistance, moderate strength, and superior workability.

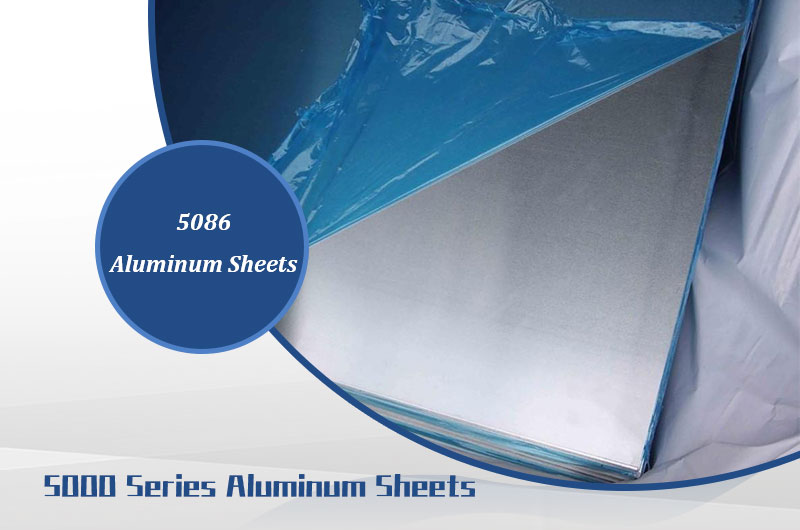

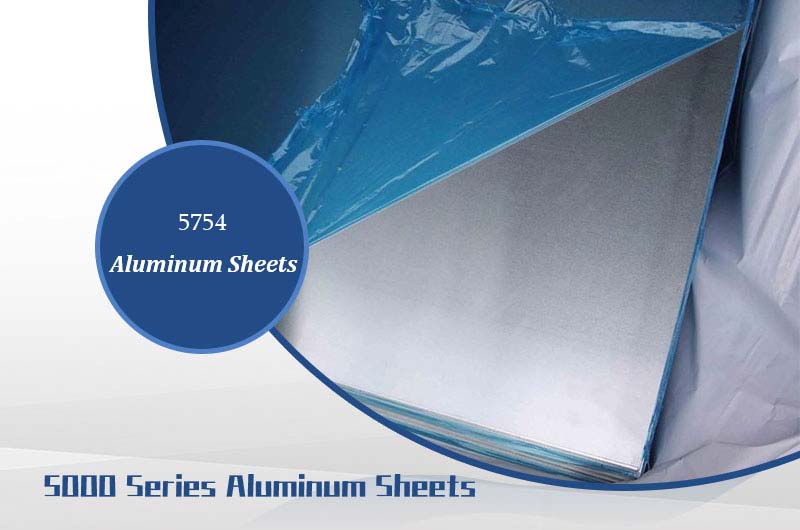

5000 Series Aluminum Sheets
- Alloy: 5005, 5052, 5083, 5086, 5154, 5454, 5754 etc.
- Temper: O, F, H111, H112, H18, H22, H24, H26, H32, H34, H36 etc.
- Thickness: 0.2mm - 250mm
- Width: 1000mm - 2650mm
- Length: 500mm - 12000mm
- Standards: ASTM B209, EN 573, EN 485, AMS 4001, GB/T3880, GJB1541, etc.
- Features: Exceptional corrosion resistance, high strength, and excellent weldability.

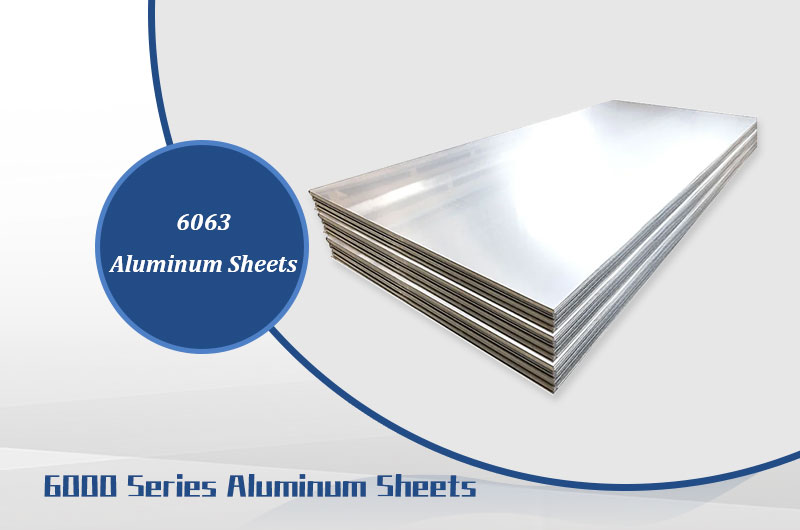

6000 Series Aluminum Sheets and Plates
- Alloy: 6061, 6082, 6063, 6013, 6101 etc.
- Temper: O, F, T3, T4, T6, T651 etc.
- Thickness: 0.2mm - 200mm
- Width: 500mm - 2650mm
- Length: 500mm - 12000mm
- Standards: ASTM B209, EN 573, EN 485, AMS 4001, GB/T3880, etc.
- Features: Heat-treatable with balanced high strength, excellent corrosion resistance, workability, and weldability.

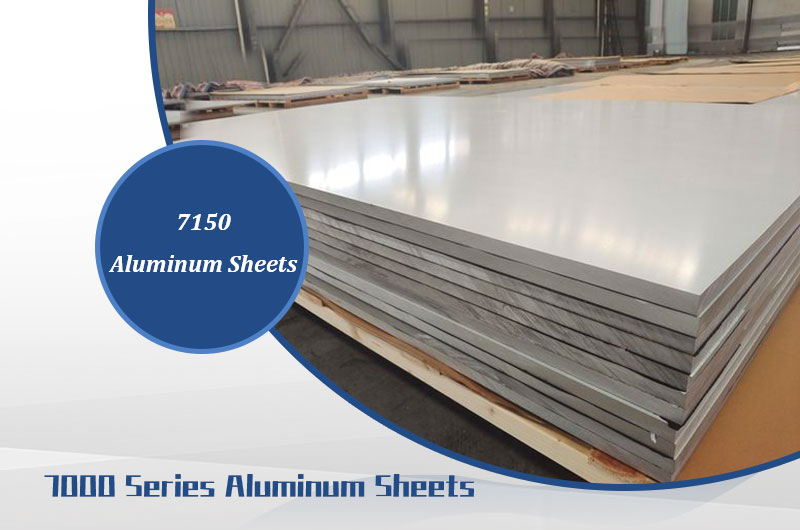

7000 Series Aluminum Plates
- Alloy: 7005, 7021, 7050, 7075, 7150 etc.
- Temper: O, T3, T4, T6, T351, T451, T42, T651, T73, T76, T851, etc.
- Thickness: 0.2mm - 250mm
- Width: 1000mm - 2650mm
- Length: 2000mm - 12000mm
- Standards: ASTM B209, EN 573, EN 485, AMS 4001, GB/T3880, GJB1541, etc.
- Features: Excellent fatigue resistance and strength, with corrosion resistance superior to 2000-series but inferior to 5000-series alloys, combined with outstanding machinability.
How to Choose the Right Aluminum Sheet or Plate
Selecting the ideal aluminum alloy depends on your application, environment, and performance requirements. Follow these steps to find the best match.
Define Your Application
Identify the end-use environment — aerospace, marine, automotive, construction, or electronics. Each industry has specific alloy and certification requirements.
Evaluate Key Properties
Match properties to your needs: strength (2000/7000), corrosion resistance (5000), formability (1000/3000), or balanced performance (6000).
Select Temper & Dimensions
Choose the appropriate temper (O for annealed, H for strain-hardened, T for heat-treated) and specify thickness, width, and length for your project.
Surface & Processing
Determine if you need special surface finishes (anodized, polished, coated) or secondary processing (CNC machining, welding, bending, cutting).
Verify Standards
Ensure compliance with industry standards (ASTM B209, EN 485, AMS) and certifications (DNV for marine, AS9100 for aerospace, IATF16949 for automotive).
Request a Quote
Contact our team with your specifications. We offer competitive pricing, custom cutting, fast delivery from 5000+ tons of inventory, and technical support.

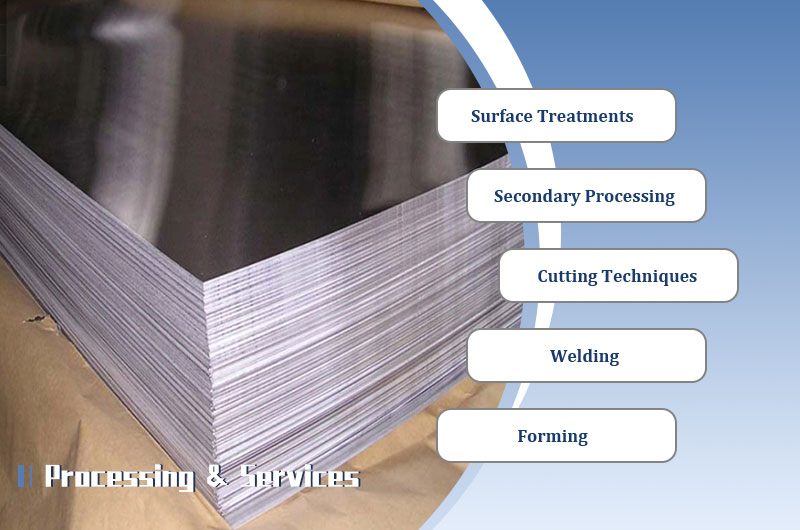

Processing & Services
- Surface Treatments: Coating, polishing, anodizing, electroplating, spraying.
- Secondary Processing: Cutting, milling, drilling, turning, CNC machining.
- Cutting Techniques: Waterjet, plasma, laser, precision sawing.
- Welding: Advanced TIG/MIG welding for reliability.
- Forming: Bending, stamping (punching, engraving, embossing).
- Heat Treatment: Solution treatment, aging, annealing for optimal mechanical properties.

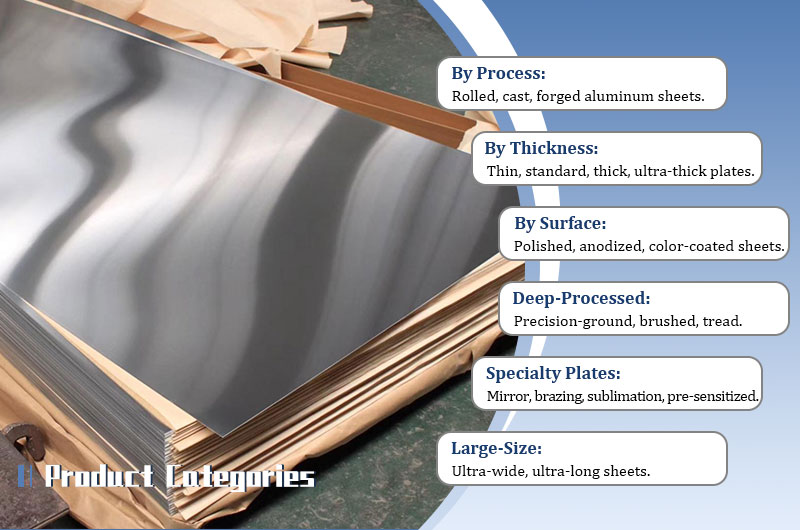

Types of Aluminum Sheet and Plate
- By Process: Rolled sheet, cast aluminum sheet, forged aluminum sheets.
- By Thickness: Thin aluminum sheet, standard, ultra-thick aluminum plates. Learn sheet vs plate differences.
- By Surface: Polished aluminum sheet, anodized aluminum sheet, color-coated sheets.
- Deep-Processed: Precision-ground sheets, brushed sheets, tread sheets, stucco embossed sheets, corrugated sheets, perforated sheets.
- Specialty Plates: Mirror sheets, brazing sheets, sublimation sheets, pre-sensitized sheets, CTP sheets, deep-drawn sheets.
- Large-Size: Ultra-wide, ultra-long sheets.
Applications
Our aluminum sheets and plates serve critical roles across a wide range of industries worldwide.
Aerospace
- Alloys: 2024, 2014, 2219, 2618 (2000), 6061, 6082, 6013 (6000), 7075, 7049, 7050 (7000).
- Requirements: Lightweight, high strength, fracture toughness, fatigue resistance, heat/corrosion resistance.
- Certifications: AS9100, OHSAS 18001, ISO14001, ISO 9001, NADCAP HT/NDT, IATF16949.
- Alloys: 5052, 5083, 5086, 5454, 5754 (5000), 6061, 6082 (6000).
- Features: Corrosion resistance, strength-to-weight ratio, weldability.
- Certifications: BV, DNV, NK, CCS, ABS, KR, LR.
Automotive
- Alloys: 6013, 6016, 6061, 6063, 6082, 6111, 6022, 6181 (6000), 5052, 5182, 5083, 5754, 5049 (5000), 2024, 7075, 1100.
- Advantages: Impact resistance, formability, weldability.
- Standards: IATF16949.
Tank Trucks
- Alloys: 5182, 5083, 5454, 5754, 5052.
- Specs: Up to 2650mm width, 16m length; mirror/slip-resistant surfaces.
- Standards: ASTM B209, EN14286.
Beverage & Closure Sheets
- Closures: 3105, 8011, 1060 (H14/H16, 0.13mm - 1.50mm).
- Cans: 3004/3104 (body), 5052/5182 (lid), 5182 (pull-tab).
- Process: Temperature-controlled rolling/annealing, DOS treatment.
Tooling & 3C Electronics
- Tooling Alloys: 2024, 5052, 5083, 5086, 6061, 7075.
- 3C Electronics: 5252, 6013, 6063, 7021, 7075 (phones); 5052, 5252, 6061, 6063 (computers); 1050, 1060, 1070, 5052, 5252, 6063 (devices).
- Advantages: Lightweight, high thermal conductivity, formability.
Aluminum Sheet and Plate Pricing
Aluminum sheet price = Aluminum ingot price + Processing fees (labor, facility) + Transportation costs.
- Aluminum ingot price: Updated daily around 10:30 AM (offers three options: daily, 3-day, or 5-day averages).
- Processing costs: Vary by alloy series and production techniques.
- Transportation: Calculated based on trade terms; self-pickup available.

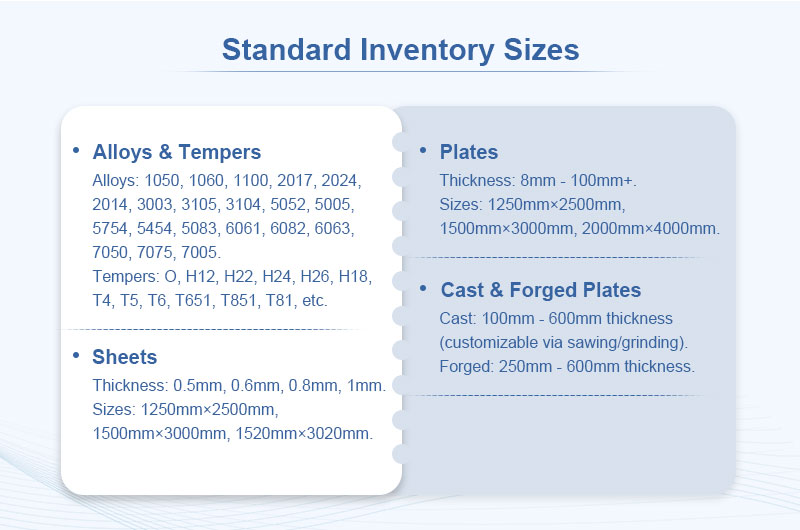

Standard Inventory Sizes
Alloys & Tempers
- Alloys: 1050, 1060, 1100, 2014, 2024, 3003, 3104, 3105, 5005, 5052, 5083, 5454, 5754, 6061, 6063, 6082, 7005, 7050, 7075.
- Tempers: O, H12, H22, H24, H26, H18, T4, T5, T6, T651, T851, T81, etc.
Aluminum Sheets in Stock
- Thickness: 0.5mm, 0.6mm, 0.8mm, 1mm.
- Sizes: 1250mm x 2500mm, 1500mm x 3000mm, 1520mm x 3020mm.
Aluminum Plates in Stock
- Thickness: 8mm - 100mm.
- Sizes: 1250mm x 2500mm, 1500mm x 3000mm, 2000mm x 4000mm.

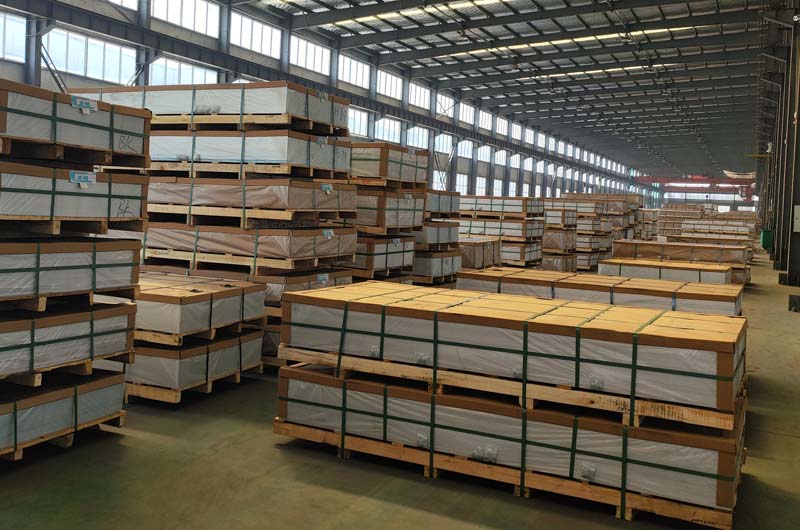

Packaging and Delivery
- Package the inspected and qualified aluminum sheets to prevent damage during transportation and storage.
- Common packaging methods include wooden pallets, wooden boxes, etc.
- Arrange logistics according to customer requirements to deliver the products to the designated location.
- Supported trade terms: FOB, CIF, CFR, and EXW.
- Standard lead time: 7-15 days for stock items; 20-35 days for custom orders.
Quality Assurance
Every aluminum sheet and plate undergoes rigorous quality control throughout the entire production process to ensure consistent performance and reliability.
Raw Material Inspection
Chemical composition analysis using spectrometer; incoming material certificates verified against international standards.
Dimensional Accuracy
Precision measurement of thickness, width, length, and flatness using calibrated instruments with tight tolerance control.
Mechanical Testing
Tensile strength, yield strength, elongation, and hardness tests performed per ASTM E8/E8M standards.
Surface Quality Check
Visual and instrument-based inspection for scratches, dents, oxidation spots, and coating uniformity.
Certifications & Traceability
Mill test certificates (MTC) provided with every shipment. Full traceability from raw material to final delivery.
Why Choose Us
- Supply Chain: Located in China's aluminum processing hub with direct access to raw material sources, ensuring competitive pricing and stable supply.
- Expertise: 20+ years in aluminum processing; equipped with advanced rolling, cutting, and heat treatment facilities; dedicated R&D team.
- Customization: Full-range services for special sizes, alloys, surfaces, and deep processing to meet exact project specifications.
- Quality: Strict QC with full traceability; certified to ISO 9001, ISO 14001, SGS standards.
- Inventory: 5000+ tons in stock across all major alloys; fast delivery for urgent orders.
- Global Reach: Exported to 60+ countries with reliable logistics partnerships and responsive after-sales support.
Frequently Asked Questions
Find answers to common questions about our aluminum sheet and plate products, ordering, and services.
What is the minimum order quantity (MOQ) for aluminum sheets?
What is the difference between H temper and T temper in aluminum?
T temper (e.g., T3, T6, T651) refers to heat-treated aluminum, used in heat-treatable alloys such as the 2000, 6000, and 7000 series. The aluminum is strengthened through solution heat treatment and aging.
