Embossed Aluminum
Our embossed aluminum products are available in various textures and surface treatment options — including anodized, pre-painted(coated), polished mirror, and kraft paper clad finishes — ensuring durability, aesthetics, and performance for a wide range of applications.
- Shape & Form:
- Sheet, Coil.
- Alloy:
- 1050, 1060, 1100, 3003, 3004, 5052, 8011, etc.
- Temper:
- O, H14, H24, H26, H32, etc.
- Thickness:
- 0.06mm – 5.0mm.
- Width:
- 30mm – 1500mm.
- Coil ID:
- 505mm.
- Single Coil Weight:
- 1.0 – 2.5 tons.
- Texture:
- Orange Peel, Rhombus, Hemisphere, Cobblestone, Water Ripple, Lychee Peel, Rice Grain.
- Common Thickness:
- .016", .032", .040", 1/8".
- Common Standard Sizes:
- 1220mm × 2440mm (4' × 8'), 1220mm × 3050mm (4' × 10').
Overview of Embossed Aluminum
What is Embossed Aluminum?
Embossed aluminum is a type of aluminum alloy material whose surface has been mechanically pressed through specialized embossing rollers to create various raised patterns and textures. This process enhances the aesthetics, slip resistance, and durability of aluminum sheets and coils, making embossed aluminum widely used across multiple industries including construction, automotive, household appliances, and industrial insulation.
Embossed aluminum is commonly available in two forms: sheet and coil. The most popular embossed pattern is the stucco (orange peel) texture, which is widely used in insulation jacketing and refrigerator linings.

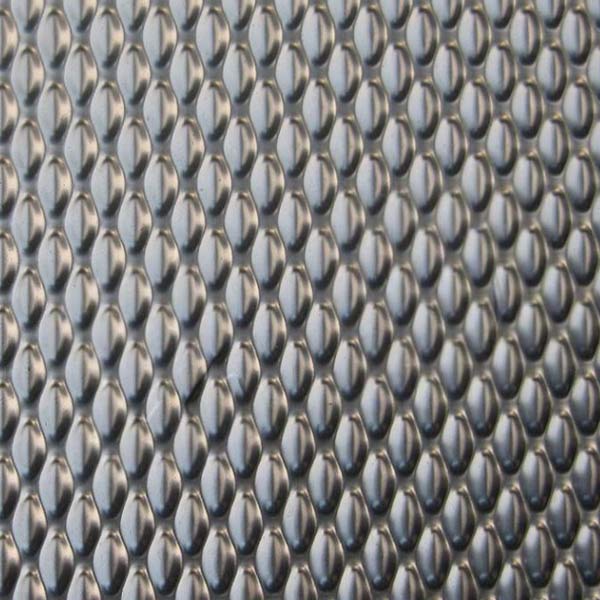

Available Textures
Worthwill offers a wide range of embossed aluminum textures, including but not limited to:
- Orange Peel (Stucco) Pattern
- Rhombus (Diamond) Pattern
- Hemisphere Pattern
- Cobblestone (Hammer / Bean) Pattern
- Water Ripple Pattern
Advantages
Features and Benefits
- Aesthetically Appealing Various embossed textures provide decorative effects for different applications.
- Lightweight & Durable High strength-to-weight ratio, suitable for long-term use.
- Corrosion Resistant Naturally resistant to corrosion, further enhanced with anodizing or coating.
- High Thermal Efficiency Excellent thermal conductivity for heat dissipation and insulation applications.
- Anti-Slip Surface Textured surface provides better grip and reduces the risk of slipping.
- Easy to Clean & Maintain Smooth aluminum base allows simple cleaning with neutral cleaners.
Most Popular

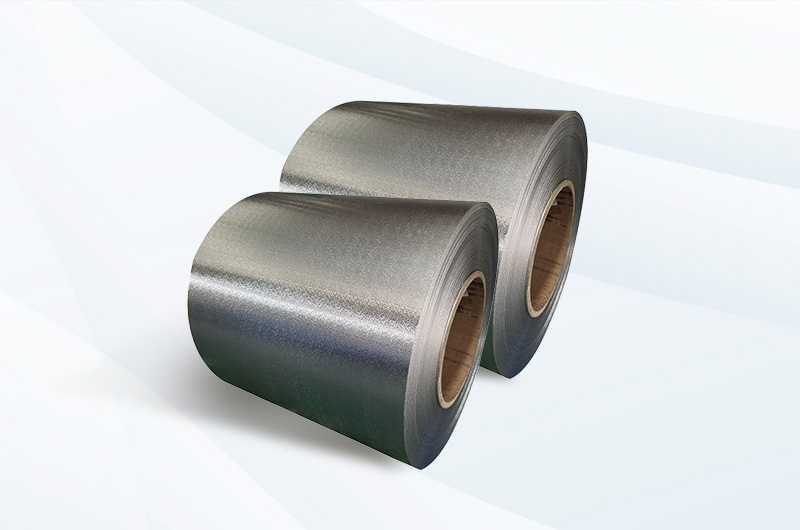

Stucco Embossed Aluminum
Stucco embossed aluminum is the most widely used type of embossed aluminum. Its surface features an irregular texture resembling traditional stucco or orange peel, providing excellent anti-glare properties, enhanced grip, and superior aesthetics.
It is particularly popular in insulation jacketing, refrigerator linings, roofing, and wall cladding applications.
Common Alloys
1060, 1100, 3003, 3105, 5005
Thickness
0.2mm – 3.0mm
Width
30mm – 1500mm
Typical Texture
Orange Peel / Stucco
Surface Treatment
Embossed Aluminum Surface Treatment Options
We offer multiple surface treatment options for embossed aluminum coils and sheets, each designed to enhance specific properties such as corrosion resistance, aesthetics, or reflectivity.
Anodized Embossed Aluminum
Anodizing creates a dense aluminum oxide film on the surface, significantly enhancing corrosion resistance, wear resistance, and aesthetics. The anodized layer also provides an excellent base for dyeing in various colors.
- Shape & Form: Sheet, Coil
- Thickness: 0.06mm – 3.0mm
- Width: 30mm – 1500mm
- Anodizing Film: 3μm – 25μm (max 60μm)
Color Coated Embossed Aluminum
Color coated embossed aluminum has one or more layers of coating applied to the surface, improving weather resistance, UV resistance, and providing a wide range of color options for decorative applications.
- Shape & Form: Sheet, Coil
- Colors: White, gray, brown, etc. (customizable)
- Coating Thickness: 15μm – 35μm
- Texture: Orange Peel, Cobblestone
Polished Mirror Embossed Aluminum
Polished mirror embossed aluminum features a highly reflective surface achieved through specialized polishing processes. It is an ideal material for lighting reflectors, decorative panels, and solar energy applications.
- Shape & Form: Sheet, Coil
- Thickness: 0.3mm – 2.0mm
- Reflectivity: ≥ 82%
- Texture: Orange Peel, Cobblestone
Kraft Paper Clad Embossed Aluminum
Kraft paper clad embossed aluminum has a layer of kraft paper laminated to one side, combining aluminum's corrosion resistance with kraft paper's moisture barrier properties. It is commonly used as insulation jacketing.
- Alloy: 1050A, 3003
- Shape & Form: Sheet, Coil
- Thickness: 0.2mm – 3.0mm
- Kraft Paper Weight: 30 – 150 g/m²
Get free samples? Work with us →
Texture Options
Embossed Aluminum Textures
Embossed aluminum textures are created by pressing patterns onto the aluminum surface using specialized embossing rollers. Each texture provides unique aesthetic and functional properties to suit different applications.
Orange Peel (Stucco)
Rhombus (Diamond)
Hemisphere
Cobblestone
Water Ripple
Lychee Peel
Rice Grain
Diamond
Customization
Customizable Options
We provide comprehensive customization for embossed aluminum products, including color, coating type, dimensions, and surface finish to meet your specific requirements.
Available Colors
Bone White
Ascot White
Sandstone
Concord Cream
Bright Silver
Champagne
Rocky Grey
Regal Blue
Sierra Tan
Medium Bronze
Brite Red
Black
Custom colors are also available upon request.
Coating Options
Polyester (PE)
Standard weather and corrosion resistance. Service life: 7–8 years.
High Durability Polyester (HDP)
Enhanced weather resistance. Service life: up to 15 years.
Fluorocarbon (PVDF)
Superior corrosion and weather resistance. Service life: 20–25 years.
Dimensions & Specifications
| Cut to Size | As required |
| Surface Gloss | 15% – 85% |
| Coating Thickness | 15 – 35 μm |
| Single Coil Weight | 1.0 – 2.5 tons |
Ready to Ship
Embossed Aluminum Sheets and Coils in Stock
We maintain stock of various embossed aluminum sheets and coils in common sizes including 4' × 10', 6' × 96', 8' × 96', and more. Contact us for current pricing and availability.
White Embossed Aluminum Sheet
Black Embossed Aluminum Sheet
Red Embossed Aluminum Sheet & Coil
Embossed Aluminum 4' × 10'
We also offer custom cutting to your required sizes.
Contact Us for Pricing →Manufacturing
Production Process of Embossed Aluminum
Raw Material Preparation
Select suitable aluminum alloy materials (such as 1050, 1060, 3003, etc.) and verify that quality and dimensions meet production requirements.
Rolling
Roll the aluminum ingot through a rolling mill to the desired thickness, typically between 0.2mm and 3.0mm for standard embossed products.
Annealing
Anneal the rolled aluminum to eliminate internal stresses and optimize hardness and ductility for the embossing process.
Embossing
Pass the aluminum through embossing rollers to create the desired texture (orange peel, rhombus, cobblestone, etc.). Typical texture depth ranges from 0.08mm to 0.25mm.
Surface Treatment (Optional)
Apply surface treatments as required: anodizing for enhanced corrosion resistance, color coating for aesthetic applications, or polishing for mirror-finish reflectivity.
Cutting & Slitting
Cut or slit the embossed aluminum to the required dimensions. Common sheet sizes include 4' × 10', 6' × 96', and 8' × 96'. Coils are slit to the required width.
Quality Inspection
Conduct comprehensive quality inspections covering dimensional accuracy, surface quality, texture uniformity, and coating adhesion to ensure compliance with international standards.
Logistics
Packaging and Delivery
- All products are carefully packaged with protective film and interleaving paper to prevent surface damage during transportation and storage.
- Standard packaging options include wooden pallets, wooden boxes, and steel frames, selected based on product size and destination.
- Logistics are arranged according to customer requirements, with worldwide delivery via sea freight, air freight, or land transport.
Maintenance
How to Clean Embossed Aluminum?
Embossed aluminum requires minimal maintenance. Follow these simple steps to keep it looking its best:
- Use mild soapy water or a pH-neutral metal cleaner — avoid strong acids or alkalis.
- Wipe gently with a soft microfiber cloth following the texture direction.
- Rinse thoroughly with clean water to remove all cleaning solution.
- Dry with a clean cloth to prevent water spots and streaking.
Use Cases
Applications of Embossed Aluminum
Automotive & Transportation
- Heat shield sheet
- Interior decorative panel
- Anti-slip floor mat
- Step plate
Construction & Decoration
- Wall cladding panel
- Roofing sheet
- Ceiling panel
- Decorative flooring
Household Appliances
- Refrigerator & freezer lining
- Air conditioner casing
- Washing machine drum
- Kitchen appliance panel
Industrial Applications
- Equipment housing
- Stucco embossed jacketing →
- Industrial step plate
- Working platform
Technical Data
Embossed Aluminum Alloy Comparison
The following table compares the key properties of common aluminum alloys used for embossed aluminum products. Values may vary depending on temper condition.
| Alloy | Tensile Strength (MPa) | Elongation (%) | Thermal Conductivity (W/m·K) | Density (g/cm³) | Melting Range (°C) | Corrosion Resistance | Formability |
|---|---|---|---|---|---|---|---|
| 1050 | 76–145 | 12–30 | 229 | 2.71 | 646–657 | Excellent | Excellent |
| 1060 | 69–131 | 12–28 | 234 | 2.70 | 646–657 | Excellent | Excellent |
| 1100 | 90–165 | 5–35 | 222 | 2.71 | 643–657 | Excellent | Excellent |
| 3003 | 110–200 | 4–25 | 193 | 2.73 | 643–654 | Good | Good |
| 3004 | 150–250 | 3–20 | 163 | 2.72 | 629–654 | Good | Good |
| 5052 | 170–290 | 7–25 | 138 | 2.68 | 607–649 | Excellent | Fair |
| 8011 | 100–165 | 6–20 | 190 | 2.71 | 640–658 | Good | Good |
* Property values vary depending on temper condition (O, H12, H14, H16, H18, etc.). Contact us for specific temper data.
