Why Choose 1350 Aluminum Busbar?
1350 aluminum busbar, also known as EC Grade Aluminum (Electrical Conductor Grade), is the pure aluminum grade designated by international electrical standards. It complies with ASTM B233 standard and is the ideal choice for export power equipment.
- International Standard:Compliant with ASTM B233, directly recognized in European and American markets
- Certification Hassle-Free:Pass UL/CE material review on first attempt, no additional explanation needed
- Cable Compatible:Same material as aluminum core cables, more stable and reliable connections
- Consistent Quality:Strictest impurity control, stable conductivity performance across batches
Selection Tips:For standard projects without certification requirements, choose [1060]. For ultimate conductivity, choose [1070 busbar].

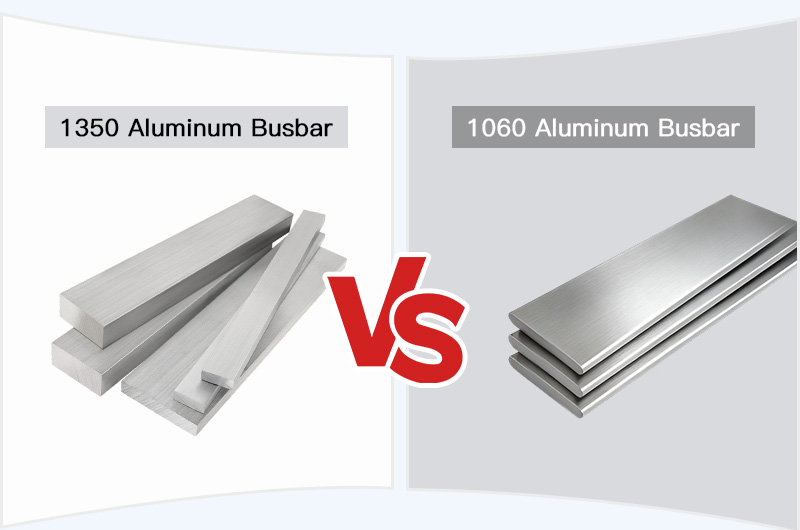

1350 vs 1060 Busbar: Key Differences
1350's aluminum content (99.5%) is lower than 1060 (99.6%), so why is it called "Electrical Aluminum"? Because 1350 aluminum busbar has stricter impurity control.
| Element | 1350 | 1060 | Notes |
| Al | ≥99.50% | ≥99.60% | 1060 is higher |
| Si | ≤0.10% | ≤0.25% | 1350 is 2.5× stricter |
| Mn | ≤0.01% | ≤0.03% | 1350 is 3× stricter |
| B | ≤0.05% | — | 1350 exclusive control |
Silicon (Si) and Manganese (Mn) are the main impurities affecting conductivity.1350 achieves more stable conductivity performance through strict control of these two elements.
Actual Conductivity Comparison:
| Grade | Conductivity (IACS) |
| 1350 | 61.8-62% |
| 1060 | 61-62% |
Conductivity is almost identical, but 1350 is an international electrical standard grade that passes material review directly during export certification.
Product Specifications & Technical Parameters
Basic Parameters
| Item | Detailed Data |
| Alloy Grade | 1350 (EC Grade Pure Aluminum) |
| Also Known As | EC Aluminum, Electrical Aluminum |
| Aluminum Content | ≥ 99.50% |
| Electrical Conductivity | ≥ 61.8% IACS |
| Resistivity | ≤ 0.0280 μΩ·m |
| Common Tempers | O, H111 (Extruded), H112 (Sawn), H14 |
| Standards | ASTM B233, GB/T 3190, EN 573-3 |
Chemical Composition (Compared to 1060)
| Element | 1350 Standard | 1060 Comparison | Notes |
| Al | ≥99.50% | ≥99.60% | — |
| Si | ≤0.10% | ≤0.25% | 1350 is 2.5× stricter |
| Fe | ≤0.40% | ≤0.35% | — |
| Cu | ≤0.05% | ≤0.05% | Same |
| Mn | ≤0.01% | ≤0.03% | 1350 is 3× stricter |
| B | ≤0.05% | — | 1350 exclusive control |
| Cr+Mn+Ti+V | ≤0.03% | — | 1350 composite limit |
Mechanical Properties
| Temper | Tensile Strength (MPa) | Elongation (%) | Hardness (HB) |
| O (Soft) | 55-75 | ≥25 | 18-25 |
| H111 | 60-85 | ≥15 | 20-28 |
| H112 | 60-90 | ≥12 | 22-32 |
| H14 | 85-115 | ≥5 | 30-38 |
Dimension Range
| Item | Range |
| Thickness | 2 - 50mm |
| Width | 10 - 200mm |
| Length | 1000 - 12000mm |

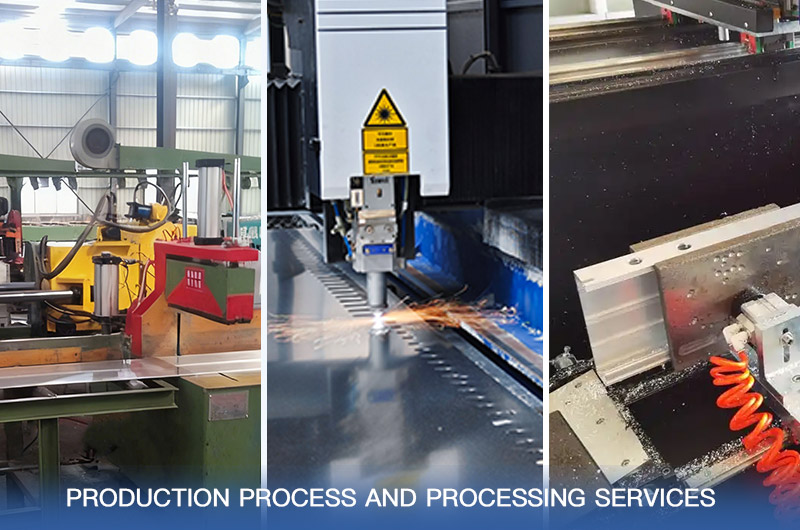

Production Process & Processing Services
Production Process
| Process | Temper Code | Features | Application |
| Extrusion | H111 | Rounded corners (R-corner), eliminates corona discharge | High-voltage distribution cabinets |
| Hot Rolling & Sawing | H112 | Uniform thickness, large cross-section | Busway systems |
| Cold Rolling & Slitting | — | Can produce ultra-thin | Transformer windings |
One-Stop Processing Services
| Processing Type | Options |
| Surface Treatment | Tin plating, nickel plating, silver plating, anodizing |
| Machining | Punching, tapping, slot milling |
| Bending & Forming | Flat bend, edge bend, Z-bend |
| Insulation Treatment | Heat shrink tubing, dip coating |

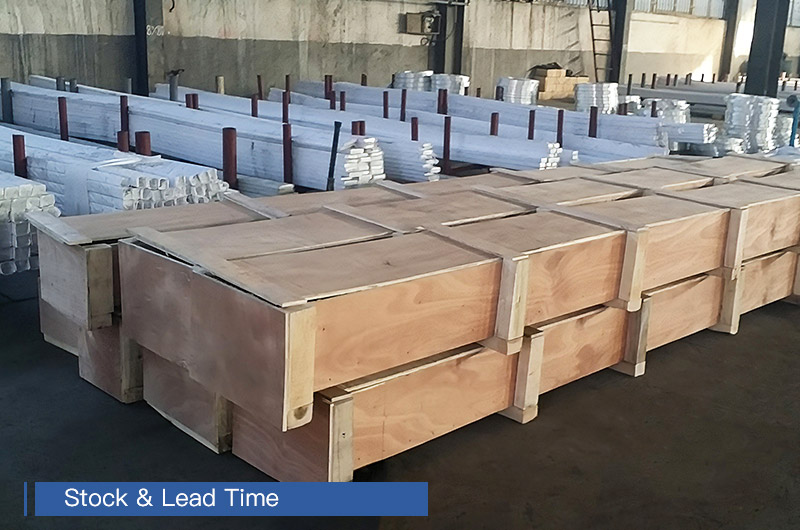

Stock & Lead Time
| Specification | Status |
| 5-12mm thick × 50-100mm wide | In Stock |
| Other standard specifications | 10-15 days |
| Special specifications | Custom (MOQ 500kg) |
Certification Support
Complete certification documentation support available for 1350 aluminum busbar:
| Document | Purpose |
| Mill Test Certificate (MTC) | Material certification |
| Chemical Composition Test Report | Proves compliance with ASTM B233 |
| Conductivity Test Report | Proves ≥61.8% IACS |
| SGS/BV Third-Party Report | Third-party endorsement (if needed) |
| Certificate of Origin (CO) | Export customs clearance |
Worthwill 1350 complies with the following international standards:
| Standard Number | Standard Name | Applicable Region |
| ASTM B233 | Aluminum 1350 Drawn Wire for Electrical Purposes | North America |
| IEC 60105 | Specification for Aluminum Conductors for Electrical Purposes | International |
| EN 573-3 | Aluminium and Aluminium Alloys - Chemical Composition | Europe |
| GB/T 3190 | Chemical Composition of Wrought Aluminium and Aluminium Alloys | China |
Typical Applications
| Application Field | Specific Scenario | Why 1350? |
| Power Distribution Equipment | ANSI/IEC Standard Switchgear, Distribution Boxes | Perfectly compliant with ASTM B233 standard, meets international project acceptance requirements. |
| Transformer Manufacturing | Dry-Type/Oil-Immersed Transformer Windings | Strict impurity control (Si≤0.1%), high conductivity consistency, reduces load losses. |
| Cable Accessories | Cable Joints, Connection Terminals | Same material as internationally standard aluminum core cables, eliminates thermal expansion differences, safer contact. |
| Rail Transit | Subway/Light Rail Power Supply Systems | Meets high international standards for material reliability and flame retardant compatibility in rail transit. |

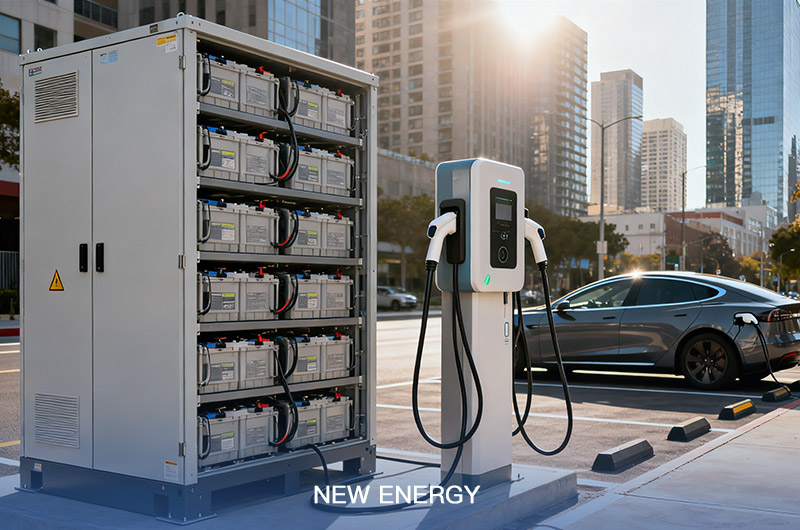

| New Energy | Energy Storage Systems (ESS), EV Charging Stations | Transparent and traceable material composition, helps equipment quickly pass UL/CE certification. |
| EPC Projects | Overseas Power Turnkey Projects | Provides MTC and third-party test reports, avoiding material compliance risks in overseas projects. |
Packaging & Logistics
Export-Grade Packaging:
- Interleaving paper between layers to prevent scratches
- Plastic film + desiccant for moisture protection
- Fumigation-free wooden cases + steel strapping
Accompanying Documents:
- Mill Test Certificate (MTC)
- Chemical Composition Report
- Conductivity Test Report
- Packing List & Commercial Invoice
- Certificate of Origin (if needed)
Frequently Asked Questions (FAQ)
Q: What is the equivalent grade for 1350 in China?
A: The equivalent is 1050A, or 1350 can be used directly. It's recommended to mark drawings as "1350/EC Grade" to avoid ambiguity.
Q: Can 1060 be used instead of 1350?
A: Technically yes (similar conductivity), but material substitution documentation may be required for export certification. It's recommended to use 1350 directly for export projects to save hassle.
Q: How much more expensive is 1350 compared to 1060?
A: Approximately 3-5% more expensive, mainly due to impurity control costs.
Q: How is 1350's bending performance?
A: Same as 1060, O-temper 90° bend without cracking. Both are pure aluminum with almost identical processing characteristics.
Q: Can you provide ASTM B233 material certification?
A: Yes. We provide MTC, chemical composition report, and conductivity report. SGS third-party reports can be arranged if needed.
