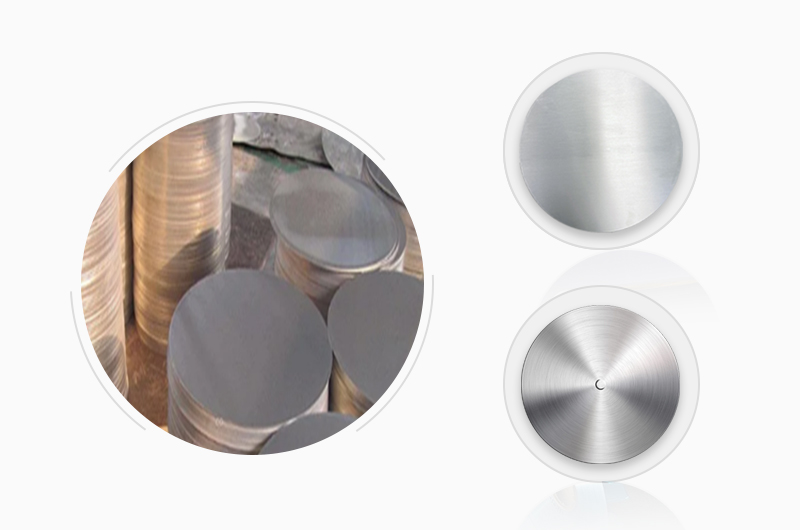

Aluminum Circles and Discs
Worthwill is a trustworthy supplier, stockist, and manufacturer of aluminum circles and aluminum discs. We offer top-quality heavy-gauge aluminum circles, discs, rings, and gussets. Supports surface treatment processes such as anodizing, color coating, mirror polishing, brushed, etc.
Our aluminum round circle plates are perfect for making cookware (like pots, pans, and fryers), lampshades, road signs, and more.
- Alloys:
- 1050, 1060, 1070, 1100, 3105, 3003, 3004, 5052A, 5052, 5754, 6061, 8011.
- Temper:
- O, H12, H14, H16, H18, H24, H32, H34, H36, H38, H111, H112, etc.
- Shapes:
- Round, square, rectangular, triangular, triangle, and special-shaped.
- Thickness:
- 0.02mm - 12mm(0.001" - 48").
- Diameter:
- 10mm - 1200mm(0.400" - 48").
- Surface Treatment:
- Polished, mill finished, brushed, anodized, color coating, mirror finish, enamel process.
- Standards: :
- ASTM B209, AMS-QQ-A-250/11, EN 570/573, ROHS.
Aluminum Circles and Aluminum Discs Overview
Although "aluminum circle" and "aluminum disc" are commonly referred to as "round aluminum plate, " they have subtle differences in specific situations according to industry standards and applications, (aluminum circle VS. aluminum disc).
What Are Aluminum Circles?
Aluminum Circle refers to a circular aluminum sheet, emphasizing its geometric round shape. It can be flat or semi-processed and is often used as a raw material for further manufacturing.
What Are the Aluminum Discs?
Aluminum Disc also denotes a circular aluminum sheet but sometimes highlights specific processing or application purposes, such as finished products ready for direct manufacturing use.
Specifications of Worthwill's Aluminum Circle and Disc
Alloys
- 1000 series:1050, 1060, 1070, 1100.
- 3000 series: 3003, 3004, 3005, 3105.
- 5000 series: 5052A, 5052, 5754.
- 6000 series:6061 T6, 6061 T651.
- 8000 series: 8011.
Temper
- Annealed temper: O.
- Cold worked temper: H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H111, H112 etc.
- Annealed temper: T6, T651 etc.
Dimensions
- Thickness: 0.02mm - 12mm(0.001" - 48").
- Diameter: 10mm - 1200mm(0.400" - 48").
Additional Services:
- Single-sided or double-sided film covering
- Paper adding
- Cutting to size
- Drilling / Punching
Standards or Certifications:
ASTM B209, AMS-QQ-A-250/11, EN 570/573, ROHS, SGS
Packaging and Transportation:
Worthwill uses standard marine transportation packaging with three layers of moisture-proof film, desiccant, and steel strapping to ensure goods arrive undamaged.
Production Processes and Technological Innovations
Aluminum circles and discs can be categorized into DC (hot-rolled) and CC (cast-rolled) types based on production processes. DC aluminum circles are ideal for deep-drawing applications like rice cooker liners.CC aluminum circles are more cost-effective and can substitute DC circles in some deep-drawing scenarios.
CC Aluminum Circle vs DC Aluminum Circle
| Feature | Cast-Rolled Aluminum Circle | Hot-Rolled Aluminum Circle |
|---|---|---|
| Raw Material | Cast-rolled coil | Cast-rolled aluminum slab |
| Production Process | Processed via cold rolling | Produced through hot rolling |
| Surface Quality | Average | Good |
| Mechanical Properties | Average | Very good |
| Deep-Drawing | Different | Good |
| Anodizing Effect | Average | Good |
| Applications | Traffic signs, etc. | Cookware, lighting, etc. |
| Productivity | High | Average |
| Cost-Effectiveness | Higher | Lower |
Surface Treatment Processes
- Anodizing: Produces a 5-35μm oxide film to enhance corrosion resistance.
- Mirror polishing: Achieves a reflectivity of over 86%.
- Embossing: Creates patterns like orange peel or hammer texture.
- Brushed: Circular/Spiral brushing, linear brushing, etc.
- Teflon Coating: Teflon coating on aluminum circles and discs.
- Color Coating: PE, PVDF coating on aluminum circles and discs.
Forming Technologies
- Die Stamping: Suitable for mass production with low costs and high efficiency.
- Conventional Cutting: Employs a circle cutting machine, ideal for large-diameter aluminum circles.
- Laser Cutting: Achieves precision of ±0.1mm for complex shapes (e.g., ventilation holes).
- Spinning: Used for seamless forming of lamp reflectors and gas cylinder bottoms, requiring a material elongation of ≥10%.
Application Fields
| Application Field | Alloy | Thickness Range | Diameter Range | Material Process | Case Examples |
|---|---|---|---|---|---|
| Cookware | 1060-O | 1/4" - 3/4" | 4" - 24" | DC/CC | Pressure cookers, frying pans, non-stick pans |
| Cookware | 3003-O | 1/4" - 3/4" | 4" - 24" | DC | Rice cooker liners |
| Cookware | 5052 | 1/4" - 3/4" | 4" - 24" | DC | Non-stick coating base materials |
| Lighting | 1100-O | 0.02" - 0.25" | 10" - 20" | DC/CC/Anodized/Polished | LED lampshades, reflectors, recessed lights |
| Road Signs | 1100-H14 | 1.5mm - 6.0mm(0.06" - 0.24") | Custom | CC/Chemical Treatment/Color Coating | Traffic signs, warning signs |
| Building Decoration | 3003/5052 | 0.2mm - 200mm(0.010" - 8") | 10mm - 3500mm(0.400" - 138") | DC + Color Coating | Façades, ceilings |
| Industrial Spinning | 6061-T6, T651 | 3mm - 10mm(0.12" - 0.400") | Custom | High-Precision Spinning | Satellite components, cryogenic tankers, filter housings |
| Electronic Components | 1050, 1060, 1070 | 0.02mm - 0.5mm(0.001" - 0.02") | Custom | DC | Electronic components, packaging |
| Molds | 1050, 1060, 1070 | 3mm - 10mm(0.12" - 0.400") | Custom | DC | Molds, structural components |
| Bottle Caps | 3003, 3004, 3005, 3105 | Custom | 10mm - 100mm(0.400" - 4") | DC | Bottle caps |
| Electronic Parts | 3003, 3004, 3005, 3105 | Custom | 10mm - 100mm (0.400" - 4") | DC | Electronic parts |
| Aerospace | 6061-T6, T651 | Custom | Custom | DC | Aerospace brackets, hydraulic components |
| Mechanical Structural Components | 6061-T6, T651 | Custom | Custom | DC | Mechanical structural components |
| Pearl Coated Cookware | 8011 | Custom | Custom | DC | Pearl coated cookware |
Round Aluminum Plate Alloy Comparison
| Alloy | Welding | Machining/Grinding | Bending/Forming | Wear Resistance | Corrosion Resistance | Tensile Strength (ksi) | Yield Point (ksi) | Elongation % in 2" | Modulus of Elasticity (ksi) | Shear Strength (ksi) | Fatigue Limit (%) | Brinell Hardness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | Excellent | Good | Poor | Good | Good | 22 | 18 | 35 | 10 | 14 | 10 | 60 |
| 1060 | Excellent | Good | Poor | Good | Good | 22 | 18 | 35 | 10 | 14 | 10 | 60 |
| 1070 | Excellent | Good | Poor | Good | Good | 24 | 19 | 30 | 10 | 15 | 10 | 65 |
| 1100 | Excellent | Good | Poor | Good | Good | 26 | 21 | 30 | 10 | 16 | 10 | 70 |
| 3105 | Good | Good | Fair | Good | Good | 30 | 24 | 20 | 10 | 18 | 12 | 80 |
| 3003 | Good | Good | Fair | Good | Good | 33 | 27 | 15 | 10 | 20 | 12 | 85 |
| 3004 | Good | Good | Fair | Good | Good | 40 | 32 | 15 | 10 | 24 | 14 | 95 |
| 5052A | Fair | Good | Good | Good | Excellent | 50 | 35 | 10 | 10 | 30 | 14 | 120 |
| 5052 | Fair | Good | Good | Good | Excellent | 45 | 35 | 12 | 10 | 30 | 14 | 105 |
| 5754 | Fair | Good | Good | Good | Excellent | 45 | 35 | 12 | 10 | 30 | 14 | 105 |
| 6061 | Fair | Good | Fair | Good | Excellent | 45 | 40 | 12 | 10 | 30 | 14 | 95 |
| 8011 | Good | Good | Fair | Good | Good | 35 | 28 | 15 | 10 | 22 | 12 | 100 |
Popular Aluminum Circles and Discs
.250" Aluminum Round Plate
.250" Aluminum Circle Plate
.375" Round Aluminum Circle
.500" Aluminum Ring Plate
.500" Aluminum Square Plate
.250" Aluminum Gusset Plate
.750" Aluminum Circle Plate
.750" Aluminum Round Disc
Stock of aluminum Circle & Disc
We have a large stock of aluminum circle and aluminum disc, with thickness ranging from 1/4" to 3", and We also support customizing aluminum discs of different specifications and thicknesses.
Quality Control
- Chemical Composition: Raw materials' chemical composition is checked via spectrometer and compared with standards to confirm alloy grades match orders and prevent errors.
- Production Control: Molds are regularly maintained and cleaned, stamping parameters are optimized to minimize surface defects. High-precision equipment ensures dimensional accuracy, and mechanical properties are monitored with necessary corrective actions.
- Inspection: Finished products undergo visual, dimensional, mechanical, grain, and chemical testing to ensure they meet quality standards.
- Packaging and Continuous Improvement: Suitable packaging materials and standardized operations are used. A quality traceability system is in place, customer feedback is addressed, and ongoing quality improvement is pursued.
Aluminum Circle and Aluminum Disc Pricing
The price of aluminum circles is influenced by processing methods, aluminum ingot prices, exchange rates, shipping costs, etc. Generally, the price of aluminum circles varies with different alloys and dimensions. The pricing formula is as follows:
- Aluminum circle price = Aluminum ingot price + Processing fee (including labor and venue costs) + Shipping cost
- Quotations are valid for an average of 3 working days, with special circumstances explained separately.
Why Choose Worthwill’s Aluminum Round Plate?
Worthwill is a professional aluminum circle and disc manufacturer, supplier and stockist in China. We always keep an aluminum circle inventory of over 500 tons, including 1050, 1060, 1070, 3003, 6061, etc. Our products are certified to CE, ISO9001, ROHS, and other standards. We have six mold stamping production lines, six laser cutting production lines, and over 20 circle - drawing machines. Non - standard size customization is supported.
- Clean surface, no oil or scratches.
- Burr - free edges.
- Excellent drawing and deep - drawing properties.
- Great anodizing performance.
- Fully customizable specifications.
- Third - party testing supported.
- Various testing supported.
