99.6% High-Purity Aluminum

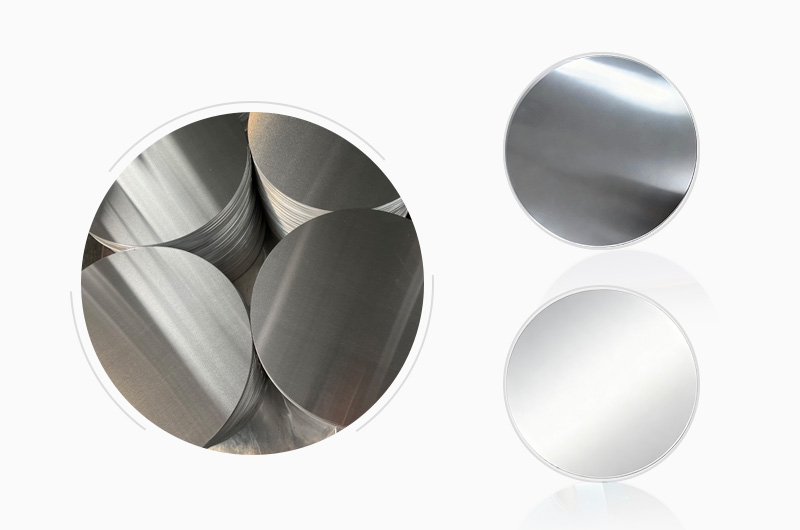

1060 Aluminum Circle Disc

Precision-cut circular blanks from AA1060 pure aluminum. Unmatched thermal & electrical conductivity, superior formability, and the perfect choice for cookware, reflectors, and electronic components.

99.6%

Purity

230

W/m·K

62%

IACS

Aluminum circle Manufacturing Process
Live Action High Precision Line
INTRODUCTION

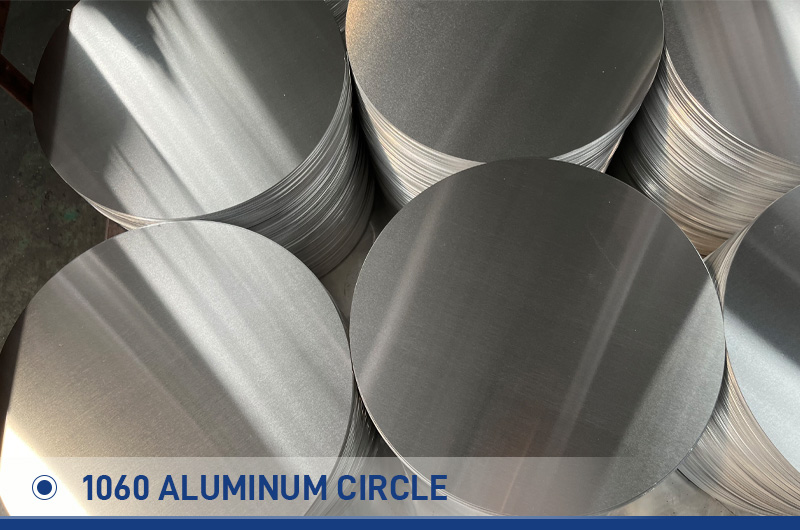

What Are 1060 Aluminum Circles?

1060 aluminum circles (AA1060/Al 99.6) are precision-cut circular blanks manufactured from high-purity aluminum sheets containing minimum 99.6% aluminum content. These versatile discs are produced using advanced cutting technologies.

Laser Cutting

For high precision requirements

Water Jet Cutting

For thicker materials

Stamping

For high-volume production

KEY PROPERTIES

Material Properties of 1060 Aluminum

Superior purity delivers unmatched performance

Al

≥99.6%

Aluminum Content

Superior conductivity

2.70 g/cm³

Density

65% lighter than steel

230 W/m·K

Thermal Conductivity

Excellent heat distribution

62% IACS

Electrical Conductivity

Ideal for electronics

WHY 1060

Core Advantages

The go-to choice for manufacturers who need purity, conductivity, and formability

HIGHEST PURITY

Superior Conductivity

With 99.6% aluminum content, 1060 delivers unmatched thermal and electrical performance for demanding applications.

230

W/m·K Thermal

62%

IACS Rating

65%

Lighter Than Steel

Excellent Formability

  • Up to 43% elongation in O-temper
  • Deep drawing & spinning ready
  • Complex shapes achievable

Premium Surface Quality

  • Mill finish Ra ≤ 0.8μm
  • Mirror polish Ra ≤ 0.1μm
  • Up to 95% reflectivity

Natural Corrosion Protection

  • Self-healing oxide layer
  • Atmospheric resistance
  • Anodizing enhances protection

Cost-Effective Solution

  • Competitive base pricing
  • Low tooling wear
  • Minimal scrap rate
TECHNICAL DATA

Complete Specifications

Compliant with ASTM B209 / EN 485-2 / JIS H4000 / GB/T 3880

Mechanical Properties

Temper Tensile Elongation Application
O 55-75 MPa 25-43% Deep drawing
H12 75-95 MPa ≥12% Light forming
H14 85-105 MPa ≥9% General use
H16 95-120 MPa ≥6% Lampshades
H18 115-145 MPa ≥5% Reflectors
← Slide to view data →

Chemical Composition

Symbol Element Value
Al Aluminum ≥99.6%
Si Silicon ≤0.25%
Fe Iron ≤0.35%
Cu Copper ≤0.05%
Mn Manganese ≤0.03%
Zn Zinc ≤0.05%
← Slide to view data →

20-1500

Diameter (mm)

0.2-10

Thickness (mm)

±0.02

Tolerance (mm)

Ra≤0.1

Mirror Finish (μm)

Tolerance Chart

Thickness Dia ≤455 Dia 455-1000 Dia 1000-1500
0.4 - 6.0mm ±0.079mm ±0.099mm ±0.018mm
← Slide to view details →
SURFACE OPTIONS

Surface Treatment Solutions

Choose the perfect finish for your application needs

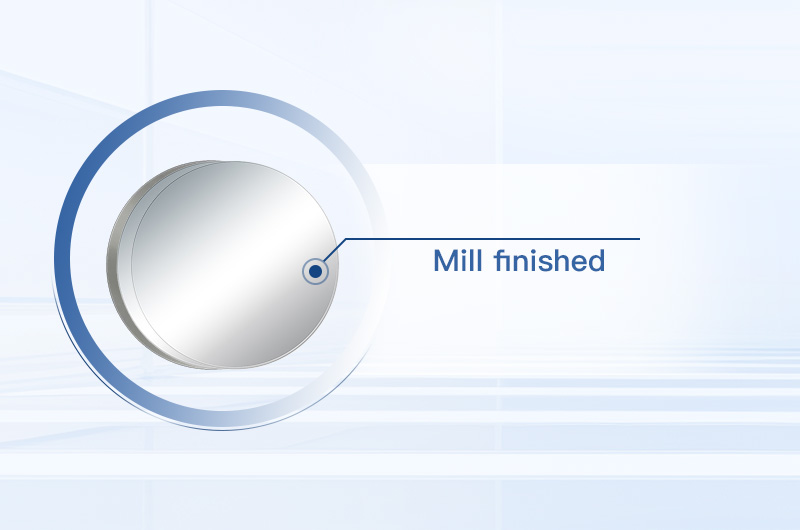

Mill Finish

Standard industrial finish, oil-free and ready for processing

  • Surface Ra ≤ 0.8μm
  • Oil-free surface
  • Cost-effective

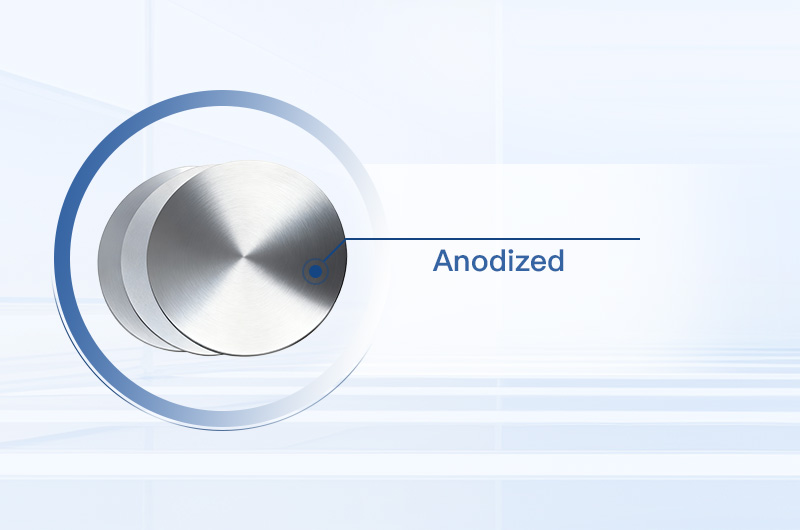

Anodizing

Enhanced durability and decorative colors

  • Film 5-35μm thick
  • Adhesion ≥4B
  • Custom colors

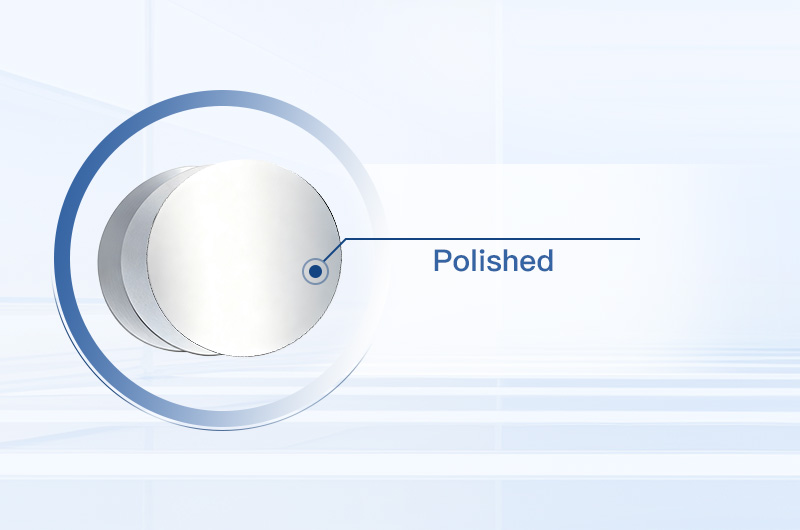

Mirror Polish

Ultra-bright finish for reflector applications

  • Ra ≤ 0.1μm
  • Reflectivity ≥88%
  • Up to 95% available

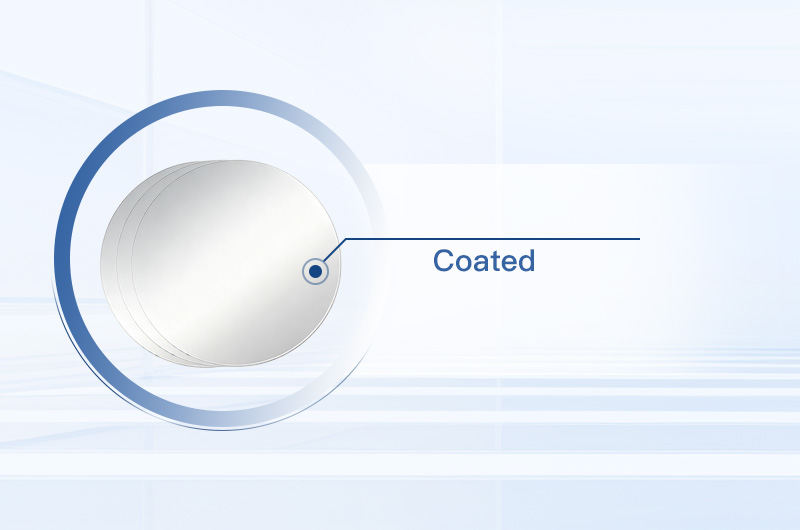

Powder Coating

Durable colored finishes for outdoor use

  • Thickness 40-120μm
  • 500hr salt spray test
  • Any RAL color
APPLICATIONS

Industry Solutions

Trusted by manufacturers across cookware, lighting, electrical, and architectural sectors

1060 aluminum circle for Cookware Manufacturing

Cookware & Kitchenware

Non-stick pan bases (0.5-3mm) Pressure cooker bottoms (2-4mm) Stock pot discs (1-3mm) Pizza pans & baking sheets

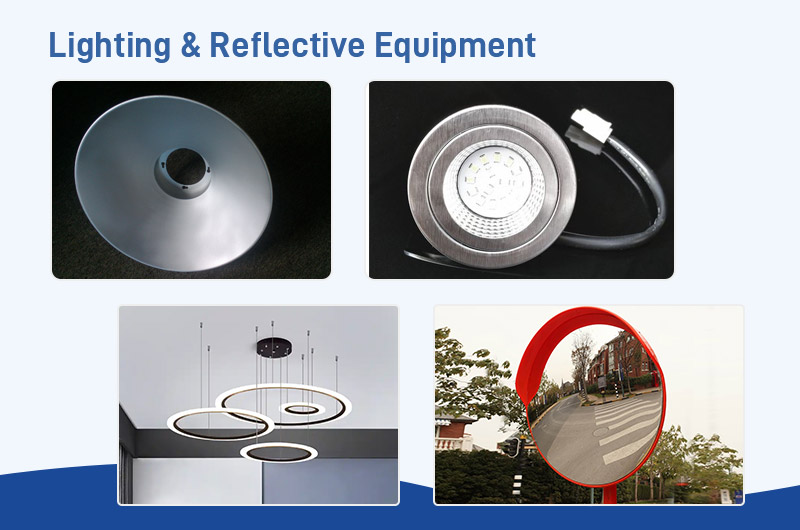

1060 aluminum circle for LED Lighting Reflector Systems

Lighting & Reflector Systems

Up to 95% reflectivity Excellent heat dissipation Easy spinning for complex shapes LED system compatible

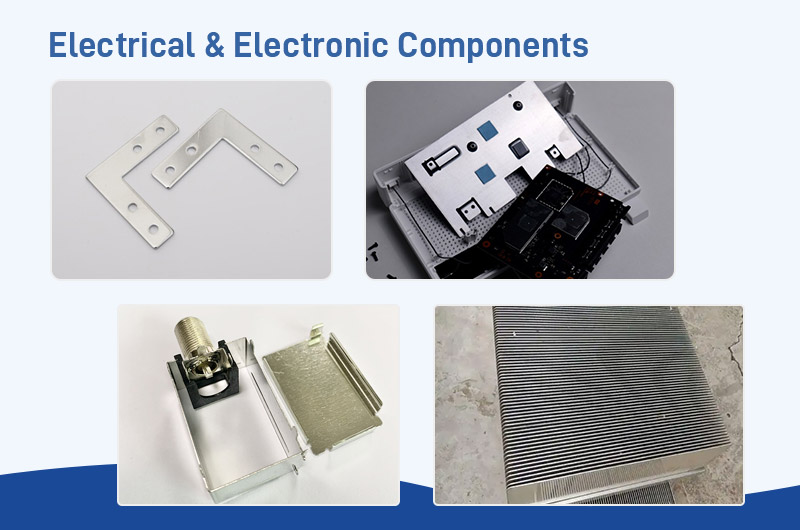

1060 aluminum circle for Electrical and Electronic Components

Electrical & Electronics

Heat sinks (3-10mm) Capacitor shells (0.5-2mm) Transformer components (1-4mm) 62% IACS conductivity
1060 aluminum circle for Signage and Architectural Applications

Signage & Architecture

Traffic signs (1-3mm) Building facade circles (2-4mm) Decorative ceiling panels Custom architectural elements
SELECTION GUIDE

Technical Selection Guide

Find the right specification for your application

Application Grade Thickness Diameter Surface
Non-stick Cookware 1060-O 0.5-3mm 100-400mm Mill finish + Coating
LED Reflectors 1060-H18 0.5-1.5mm 50-300mm Mirror polishing
Traffic Signs 1060-H24 1-3mm 300-1200mm Mill finish/Coating
Heat Sinks 1060-H14 3-10mm 50-500mm Mill finish/Anodizing
Pressure Cookers 1060-O 2-4mm 200-350mm Mill finish
Lampshades 1060-H16 0.8-2mm 100-600mm Anodizing/Polishing
QUALITY ASSURANCE

Manufacturing Excellence

Rigorous quality control at every production stage

01

Raw Material Verification

  • 100% spectral analysis of ingots
  • Purity certification: ≥99.6%
  • Trace element control
02

In-Process Monitoring

  • 30% batch sampling
  • Real-time laser monitoring
  • Flatness ≤0.5mm/meter
03

Final Inspection

  • 100% visual inspection
  • 10% mechanical testing
  • Burr-free edge guarantee
ISO 9001:2015
ISO 14001:2015
FDA Approved
RoHS Compliant
REACH Compliant
COMPARISON

1060 vs 3003: Which One?

Both are excellent choices — the best one depends on your priorities

1060

Pure Aluminum

99.6% Purity

  • Higher thermal conductivity (230 W/m·K)
  • Better electrical conductivity (62% IACS)
  • Higher reflectivity potential (95%)

Best for: Heat sinks, LED reflectors, electrical components, applications needing conductivity

3003

Al-Mn Alloy

1.0-1.5% Manganese

  • Superior strength (20% stronger)
  • Better corrosion resistance
  • Better deep drawing performance

Best for: Cookware, pressure cookers, deep-drawn pots, applications needing strength

FAQ

Frequently Asked Questions

Why Choose Worthwill?

More than just a supplier — we're your manufacturing partner.

500+

Tons Monthly Capacity

7-15

Days Lead Time

100kg

Low MOQ Available

15+

Years Experience

Direct Factory Pricing

No middlemen, no markups. You get the best prices direct from our production facility.

Full Customization

From prototypes to mass production. Any size, any temper, any surface treatment you need.

Global Shipping

We ship worldwide with full tracking. Export-standard packaging keeps your order safe.

Free Samples

Qualified inquiries get free samples to test before ordering. See the quality yourself.

Get Your Custom Quote Today

Ready to source high-quality 1060 aluminum circles? Contact our team with your specifications.

For a quick quote, please provide:

Diameter and thickness
Quantity needed
Temper specification
Surface treatment
Application details
Delivery location
