Stucco Embossed Aluminum Jacketing Cladding

As a professional manufacturer, Worthwill specialize in providing durable, high-performance protective solutions for the insulation systems of pipes, air ducts, and HVAC equipment.

What is Stucco Embossed Aluminum Jacketing?

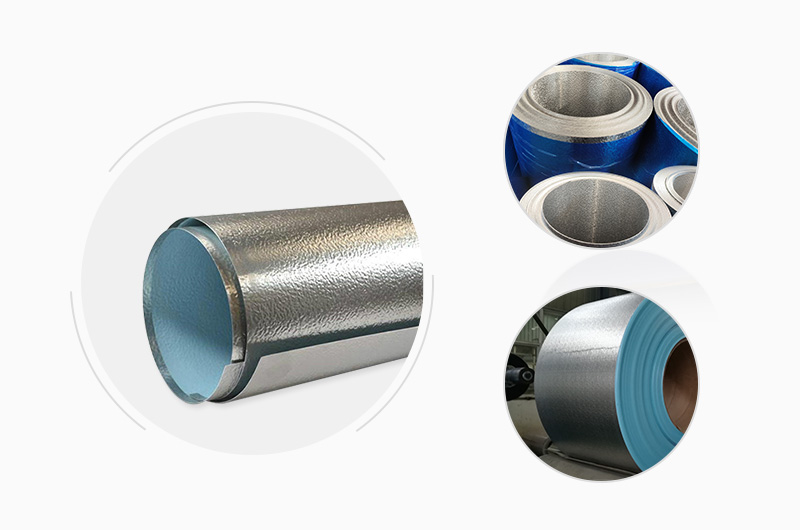

Stucco Embossed Aluminum Jacketing (Aluminum Cladding) is an aluminum protective layer specifically designed for insulation systems. Through precision embossing, a rough, stucco-like texture is formed on the aluminum surface — this not only solves the problems of ordinary aluminum sheets (such as easy scratching and high reflectivity) but also blocks moisture, UV rays, and physical damage. It is a core component for industrial/commercial insulation protection.

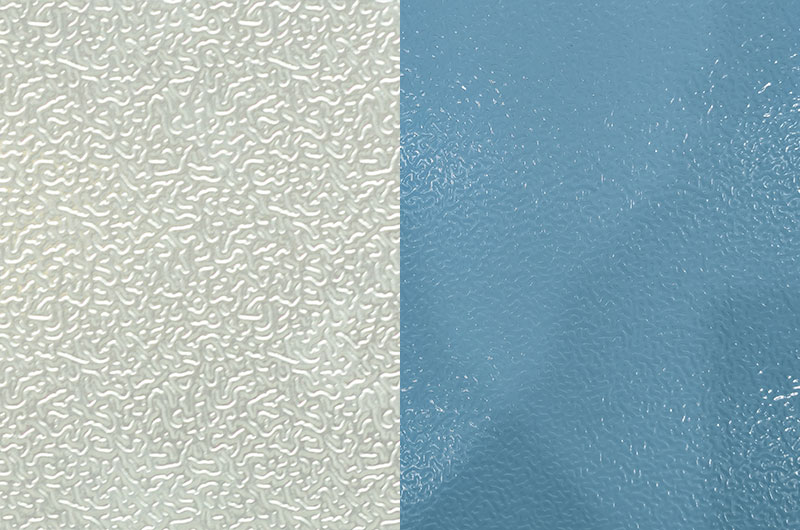

Core Textures

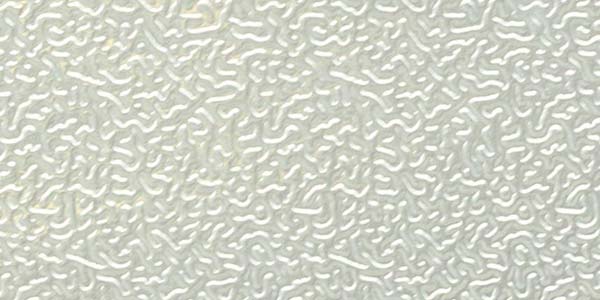

Orange Peel Texture: The most commonly used type. Its fine concave-convex surface hides scratches, reduces reflectivity, and eliminates glare hazards near roads or in workshops.
Cobblestone Texture: Customizable, with stronger graininess and higher rigidity. Suitable for heavy-duty equipment that requires high protection levels.

Three Moisture Barrier Options

Polysurlyn Moisture Barrier: Suitable for humid outdoor scenarios, with strong corrosion resistance.
Polycraft Moisture Barrier: More cost-effective, ideal for dry indoor environments to meet basic moisture protection needs.
Painted：PE, HDPE or PVDF coating + Anodized.

Why to Stucco Emboss?

Stronger Structure: 15% higher bending resistance, safeguarding the integrity of insulation systems.
Cost Savings: 20% lower damage rate and 27% reduction in life-cycle costs.
Safety & Compliance: Low-reflectivity design eliminates glare risks, meeting safety standards.
Longer Service Life: Enhanced corrosion protection, with a service life of up to 25 years.
Better Aesthetics: Texture hides scratches, suitable for various application scenarios.

Benetits

Specifications

Item	Detailed Parameters
Alloy Grade	1060, 1100, 3003, 3105, 5005 (Customizable high-corrosion-resistance alloys like 5052 available)
Temper	O, H12, H14, H16, H24, H26, H44, H46 (H14/H16 are commonly used for balanced strength and workability)

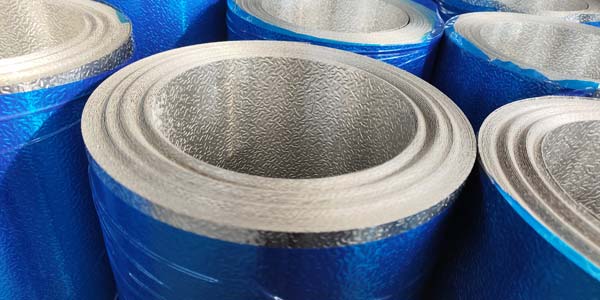

Shape & Form	Jump roll, Small roll, Sheet
Embossing Depth	0.08–0.4mm (standard), max. 1.2mm (custom deep embossing)
Thickness	0.3mm–1.5mm (equivalent to 0.012–0.05 inches)
Width	914mm, 1000mm, 1219mm (36 inches); customizable up to ≤1500mm
Length	Standard: 20/25/30/60/90 meters/roll, 100 feet (30.48 meters)/roll; Customizable sheet length
Surface Treatment	Color coating (PE/PVDF fluorocarbon paint), Anodization, Laminating
Certifications	GB/T 3880, ASTM B209 (Aluminum Alloy Standard), ISO 9001 (Quality Management System)

Product Types

Based on the combination of coating and moisture barrier, our products are divided into three categories to cover the needs of different scenarios:

Stucco Embossed Aluminum Jacketing with Polysurlyn

Moisture barrier: Polysurlyn
Structure: 3 layers
Process: Hot pressing
Film thickness: 76µm

Stucco Embossed Aluminum Jacketing with Polycraft

Moisture barrier: Polykraft
Structure: Kraft paper + polyethylene
Film thickness: 1.5 mil to 6 mil
Weight: 0.95 oz/yd² to 2.95 oz/yd²

Painted Stucco Embossed Aluminum Jacketing

Coating: PE, PVDF coating
Colors: Red, White, Gray, Brown, Blue, etc.
Coating thickness: 15µm to 35µm (customizable)
Patterns: Orange Peel, Cobblestone, etc.

Base Aluminum Alloys Performance

Different alloys are suitable for different scenarios; the key performance comparison of core alloys is as follows:

Alloy	Density (g/cm³)	Melting Point (℃)	Tensile Strength (MPa)	Elongation (%)	Corrosion Resistance	Application Scenarios
1060	2.68–2.70	660	110–136	3–5	General	Dry indoor areas, low-strength requirements
1100	2.71	660	90	6–35	Good	Mildly corrosive environments, easy-to-process parts
3003	2.73	640	142–178	≥20	Excellent	Outdoor pipes, storage tanks (main product)
3105	2.73	635–655	95–140	20–25	Excellent	Large-diameter pipes, low-pressure equipment
5005	2.70	635–655	155–195	≥2	Superior	High-corrosion environments (coastal areas, chemical plants)

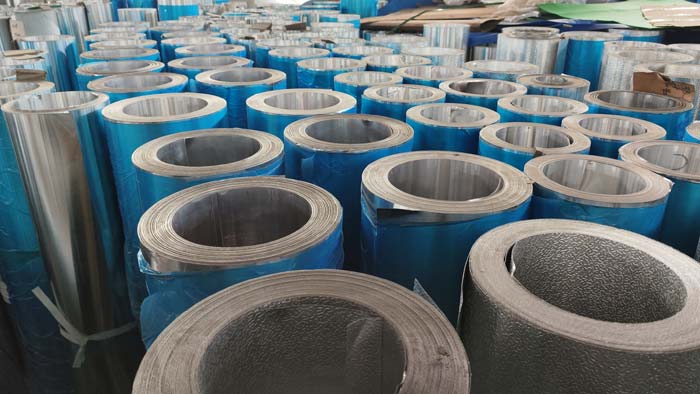

Inventory

To shorten the delivery cycle, we maintain regular stock as follows:

Thickness: 0.3mm (0.012 inches), 0.4mm (0.016 inches), 0.5mm (0.02 inches), 0.6mm (0.024 inches), 0.8mm (0.032 inches), 1.0mm (0.04 inches)
Width: 914mm, 1000mm, 1219mm (36 inches)
Length: 30 meters/roll, 100 feet (30.48 meters)/roll
Texture: Orange Peel (default)
Moisture Barrier: Polysurlyn (main stock); Polycraft (available in 5–7 days upon request)
Custom Specifications (e.g., special width, color, deep embossing): Delivery in 25–45 days, supporting small-batch customization (minimum order quantity: 1 ton)

Note: Inventory is subject to change; please contact us before purchase.

Mill Finish vs. Stucco Embossed Aluminum Jacketing

Comparison Dimension	Mill Finish	Stucco Embossed
Appearance	Smooth and flat, prone to showing scratches and stains	Uniform texture, hides scratches, long-term aesthetics
Damage Resistance	Easy to scratch/dent, high transportation damage rate (≈8%)	Scratch-resistant, low transportation damage rate (≈3%)
Glare Issue	High reflectivity (＞60%), prone to safety hazards	Reflectivity ≤30%, no glare issues
Rigidity	Low, easy to sag over long spans	High, suitable for larger-diameter pipes (≤8 feet)
Application Scenarios	Dry indoor areas, low-foot-traffic, concealed installations	Outdoor, workshops, road sides, exposed installations
Maintenance Frequency	2–3 times/year (needs cleaning and repainting)	Once every 5 years (only regular inspection)

Comparison to Alternatives

Material	Core Advantages	Main Disadvantages	Advantages of Our Stucco Embossed Aluminum Jacketing
Mill Finish Aluminum Sheets	Neat appearance, high recycling rate (＞95%)	Easy to scratch, high reflectivity, frequent maintenance	Better damage resistance, no glare, 50% lower maintenance cost
Stainless Steel Jacketing	Excellent corrosion resistance (25–30 years salt spray life)	Heavy (density: 7.93g/cm³), 30% higher cost	1/3 lighter, 20% lower cost, easier installation
PVC Jacketing	Lightweight (density: 1.4g/cm³), low cost	Fast UV aging (brittles in 5–8 years), poor fire resistance	3x longer service life (20–25 years), ASTM E84 Class A fire rating

Applications

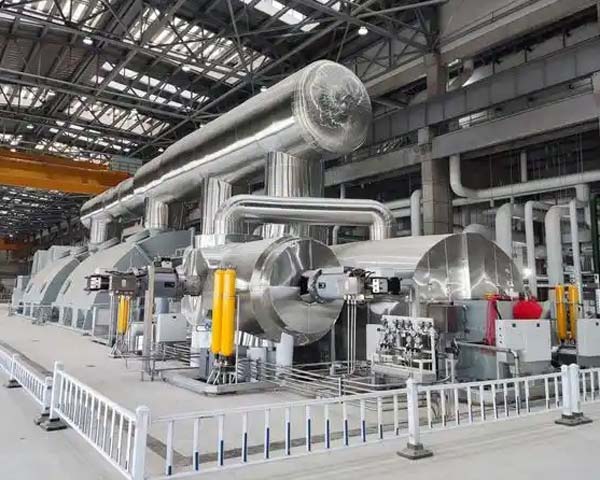

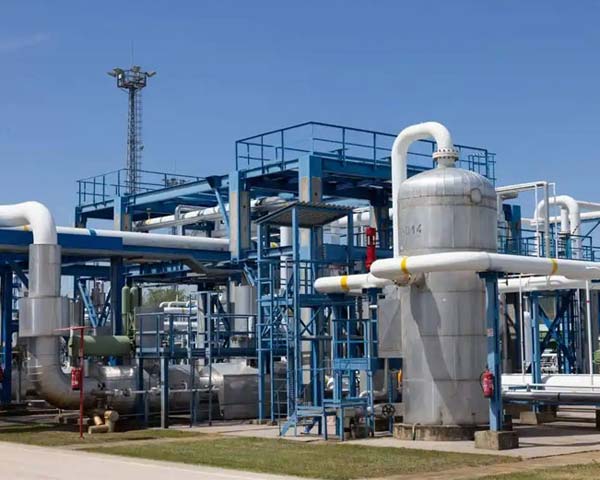

Industrial Equipment & Pipe Insulation

Standard Industrial Pipes (water, oil, gas pipes): Recommended thickness: 0.4–0.6mm; Alloys: 3003/3105; Match with Polysurlyn moisture barrier; Seal joints with silicone; Compliant with ASTM B209.
High-Pressure Steam/Heat Transfer Oil Pipes: Recommended thickness: ≥0.5mm; Alloys: 5005/5052; Deep embossing (≥1.0mm) + PVDF coating; Resists high-temperature deformation and corrosion.
Low-Temperature Cold Storage/Ice Rink Pipes: Recommended thickness: Base thickness +5%–10% (e.g., 0.55mm); Alloy: 3003 H26; Deep corrugation + EPDM gaskets; Maintains elasticity at low temperatures.

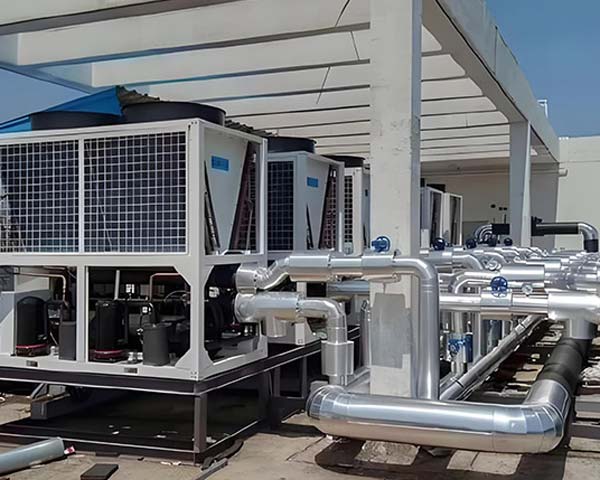

HVAC Systems & Equipment

HVAC Air Ducts/Chilled Water Pipes: Recommended thickness: 0.4–0.5mm; Alloy: 3105 H24; Orange peel texture + PE coating (indoor use); Moisture vapor transmission rate <0.06g/100in²·day; Suitable for offices, hospitals, etc.
Storage Tanks/Vessels (OD ≤8 feet): Recommended thickness: 0.41–0.61mm; Alloys: 3003 H14/H16; Box rib structure; Enhances rigidity; Suitable for water/oil storage tanks.

Severe Environment Protection

Marine/High-Salt Spray Environments (ports, coastal factories): Recommended thickness: 0.61–1.01mm; Alloys: 3003/5005 Alclad; Polysurlyn moisture barrier + polyurethane sealant; Maintenance-free for 7 years.
Chemical Corrosive Environments: Recommended thickness: ≥1.0mm; Alloy: 5052 + epoxy coating; Deep embossing design; Pinhole-free moisture barrier; Only regular rivet seal inspection is required.

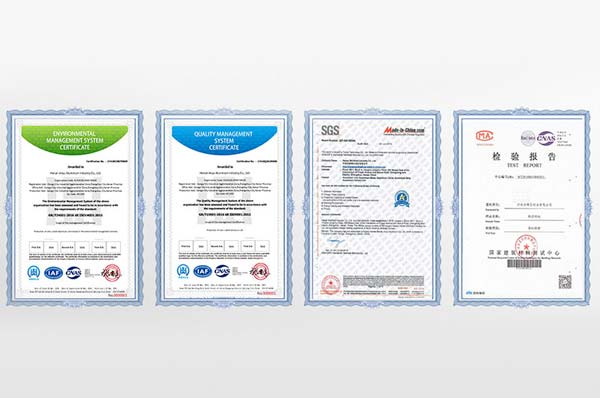

Quality Control

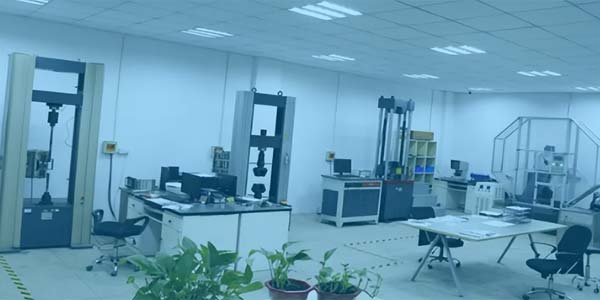

We conduct full-process testing on each batch of products to meet industry standards:

Testing Item	Implementation Standard	Testing Method	Qualification Standard
Dimensional Accuracy	ASTM B209	Micrometer, Laser Width Gauge	Thickness error ≤±0.02mm, Width error ≤±1mm
Surface Texture	Customer Drawings/ASTM	Visual Inspection + Mold Comparison	No missing texture/bumps, Embossing depth error ±0.05mm
Coating Adhesion	ASTM D3359	Cross-Cut Test (Tape Peel)	Coating peeling ≤5%
Corrosion Resistance	ASTM B117	Neutral Salt Spray Test (2000h)	No blistering/base metal corrosion
Tensile Strength	ASTM E8	Universal Tensile Tester	Meets alloy temper standards (e.g., 3003 ≥142MPa)
Temperature Cycling	ASTM C1484	-40℃~150℃ Cycling (50 times)	No warping/coating peeling

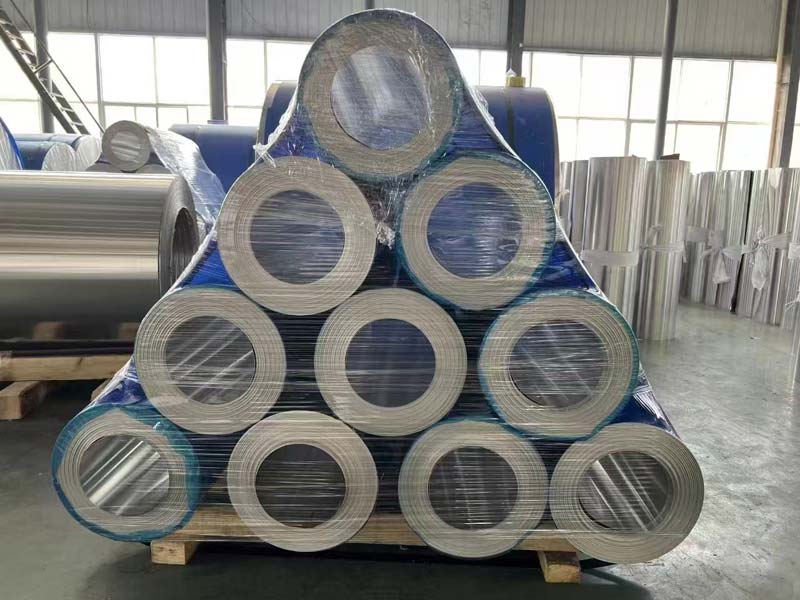

Packaging Sealability	ASTM D3078	Vacuum Leak Test	No oxidation/moisture/cracking

Why Choose Us?

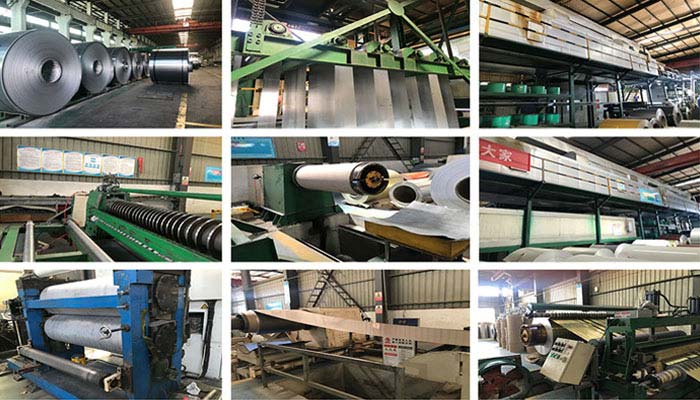

Full-Process Quality Control: Independently complete the procurement of grade-A aluminum coils (compliant with ASTM B209), embossing, and moisture barrier lamination, with no intermediate links, ensuring controllable quality.
Flexible Customization: Supports custom thickness (0.3–3mm), width (≤1500mm), Pantone color matching, and even custom texture molds to meet personalized project needs.
Rapid Response: Sufficient stock of standard specifications, with delivery in 1–3 days after order placement; custom orders are delivered in 25–45 days, which is 10–15 days shorter than the industry average cycle.
Professional Technical Support: Provide free installation guides and specification selection advice, and can send engineers to assist in solving construction problems on-site.
Solid After-Sales Guarantee: All products come with a 1-year warranty (under normal use); in case of quality problems, free replacement or refund is provided to ensure full-cycle protection of your rights.
