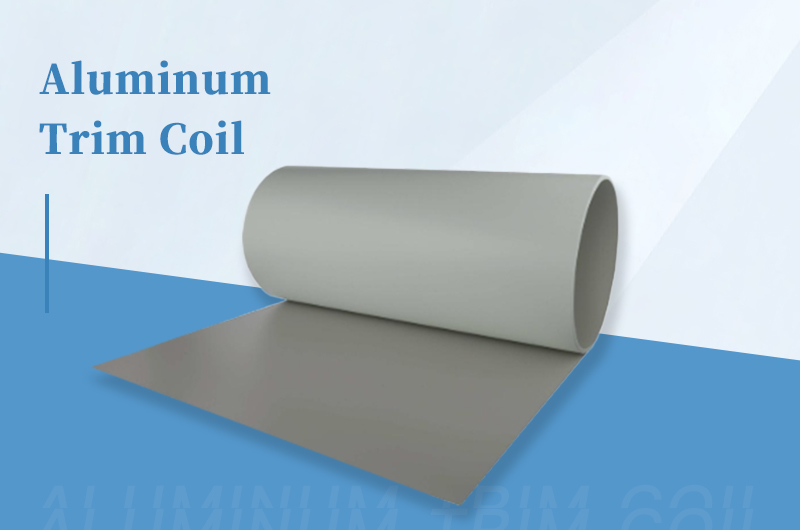

Aluminum Trim Coil

What is Aluminum Trim Coil?

Aluminum trim coil is a specially designed aluminum coil product for architectural exterior decoration. It protects building structures from natural environmental corrosion, enhances building aesthetics, offers stable performance, and requires low maintenance. Compared to regular aluminum coils, it features smaller volume and lighter weight.

The aluminum trim coil primarily uses 3000 series alloys (such as 3105) in H-28 temper to balance strength and workability. Surface treatments are selected based on application requirements, including coatings (Poly/PVC), anodizing, or dual-tone designs.

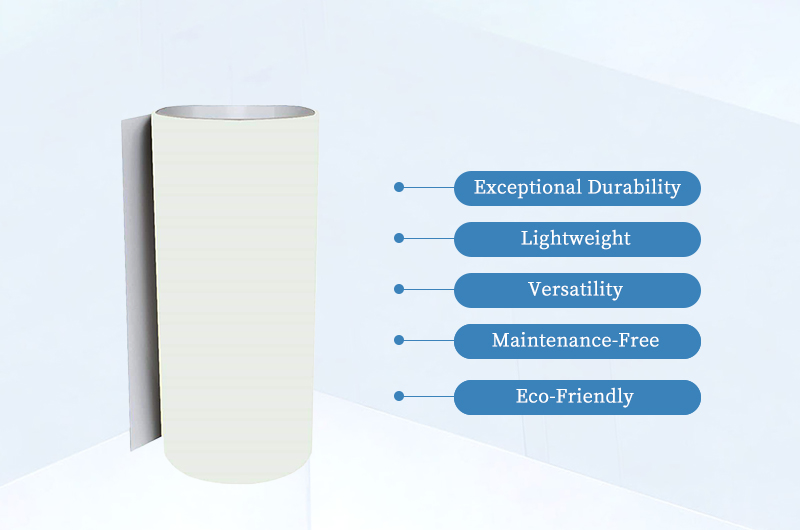

Why Choose Aluminum Trim Coil?

• Exceptional Durability: Corrosion/rust-resistant, adaptable to all climates
• Lightweight: Easy installation, ideal for elevated applications
• Versatility: Multiple specifications for diverse project needs
• Maintenance-Free: No repainting required; simple cleaning suffices
• Eco-Friendly: 100% recyclable, aligning with green building principles

Specifications

Standard Specifications

Thin Gauge Option: 24" x 50' Trim Coil

• Thickness: 0.015" (0.38mm)
• Width: 24" (610mm)
• Length: 50' (15.2m)

Medium Gauge: 24" x 50' Trim Coil

• Thickness: 0.019" (0.48mm)
• Width: 24" (610mm)
• Length: 50' (15.2m)

Heavy Gauge Option: 24" x 50' Trim Coil

• Thickness: 0.024" (0.61mm)
• Width: 24" (610mm)
• Length: 50' (15.2m)

Medium Gauge: 24" x 20' Trim Coil

• Thickness: 0.019" (0.48mm)
• Width: 24" (610mm)
• Length: 20' (6.1m)

Customizable Options (Worthwill)

• Alloys: 1050, 3003, 3105, 5052
• Tempers: H14/H24, H16/H26, H18/H28, H48, etc.
• Thickness: 0.2mm-2.00mm
• Width: 50mm-2000mm
• Core Diameters: 50mm, 75mm, 150mm, 405mm
• Coatings: (PE), PVDF, PVC
• Thickness: Single: 4-20μm, Double: 25-28μm, Triple: 30-38μm
• Brands: AkzoNobel, Nippon, PPG, Beckers

Aluminum Alloys for Trim Coil

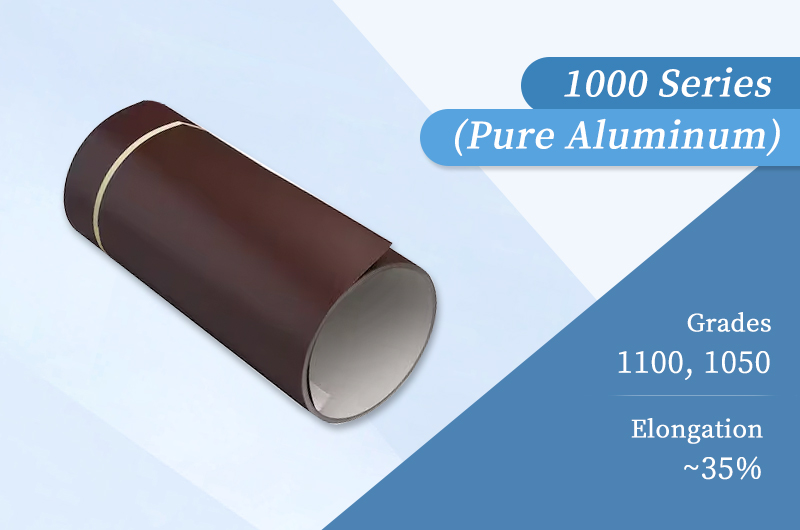

1000 Series (Pure Aluminum)

• Composition: ≥99% aluminum, optimal formability
• Grades: 1100, 1050
• Mechanical Properties:
  • Tensile Strength: 90-165 MPa
  • Elongation: ~35%
• Key Features:
  • Excellent corrosion resistance
  • High thermal/electrical conductivity
• Applications: Complex decorative profiles, deep-drawn components

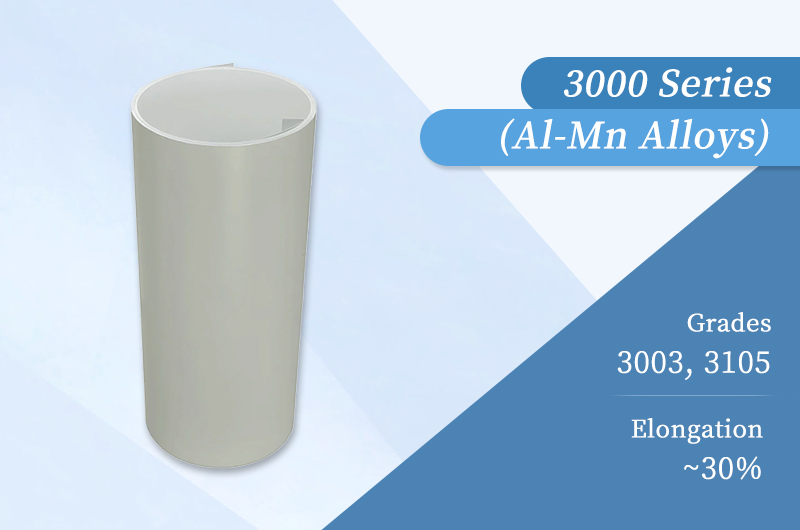

3000 Series (Al-Mn Alloys)

• Composition: 1.0-1.5% manganese
• Grades: 3003, 3105
• Mechanical Properties:
  • Tensile Strength: 110-285 MPa
  • Elongation: ~30%
• Key Features:
  • 20% stronger than pure aluminum
  • Good weldability
• Applications: Wall cladding, roofing systems

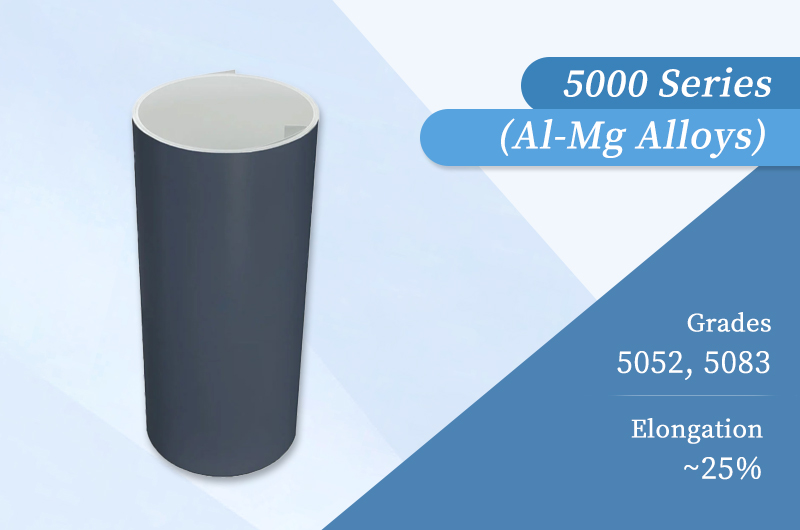

5000 Series (Al-Mg Alloys)

• Composition: 2.2-5.0% magnesium
• Grades: 5052, 5083
• Mechanical Properties:
  • Tensile Strength: 170-350 MPa
  • Elongation: ~25%
• Key Features:
  • Superior seawater resistance
  • Stable low-temperature performance
• Applications: Coastal architecture, high-load structures

Alloy Comparison

Surface Treatments

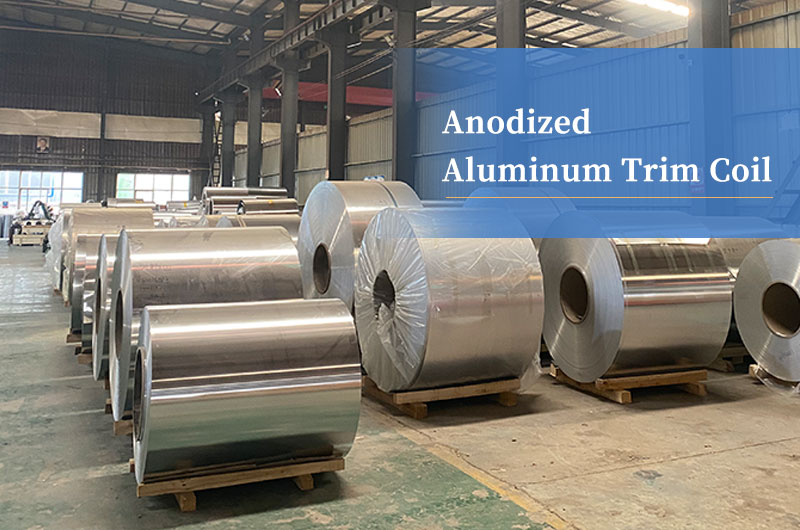

Anodized Aluminum Trim Coil

• Thickness: 3-60μm
• Colors: Customizable, with sealed/unsealed options

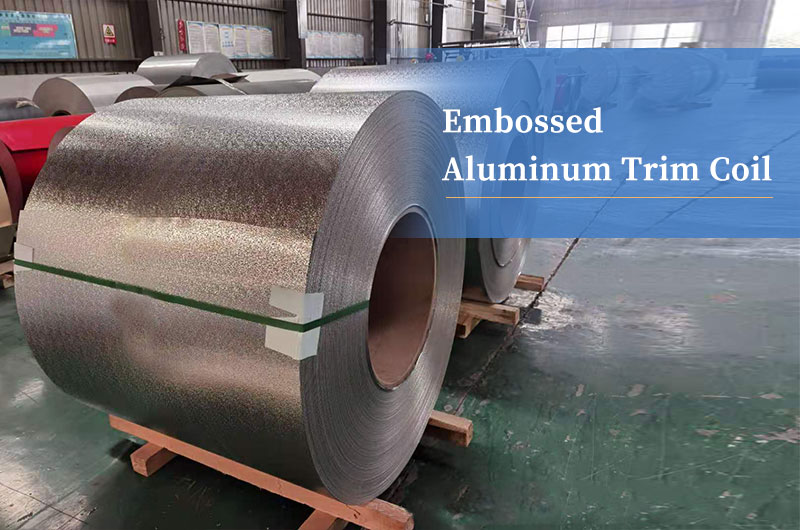

Embossed Aluminum Trim Coil

• Textures: Orange peel, etc.
• Enhanced strength via surface patterning

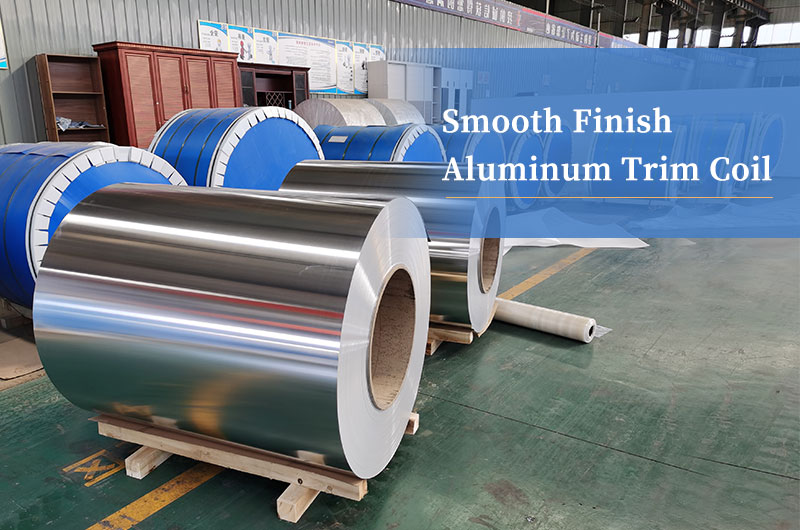

Smooth Finish Aluminum Trim Coil

Raw aluminum surface, ready for secondary processing

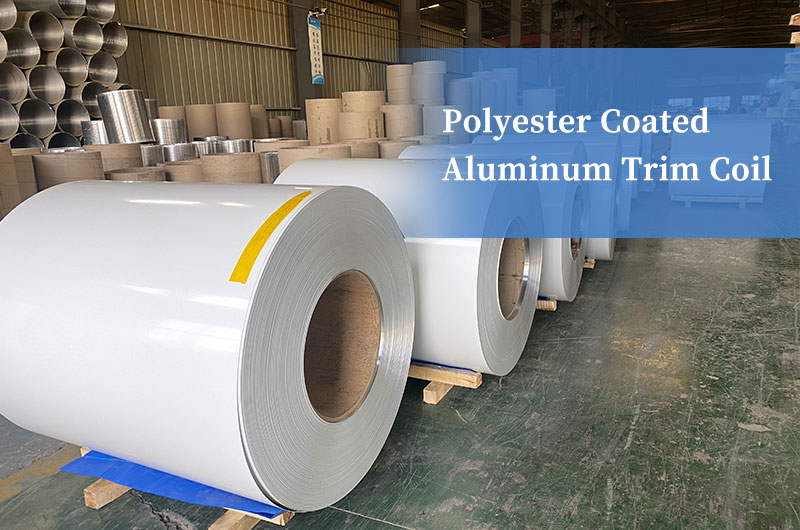

Polyester Coated Aluminum Trim Coil

• Thickness: 16-35μm
• Features: Crack/blister-resistant, matte finish

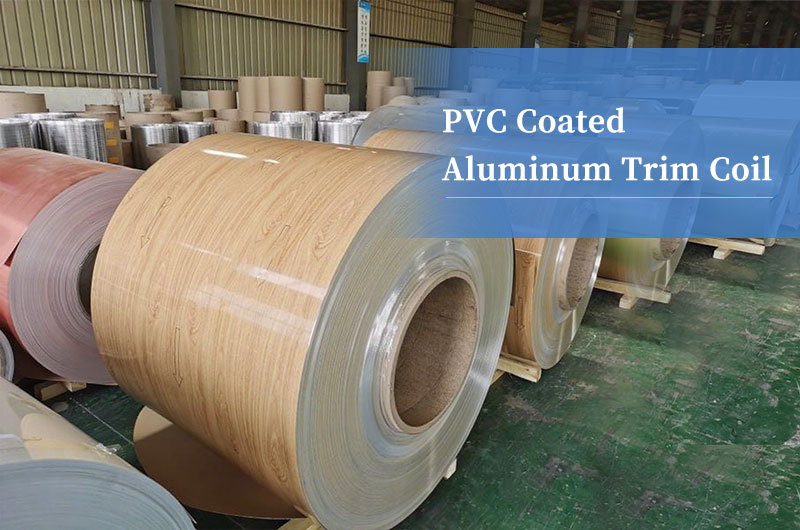

PVC Coated Aluminum Trim Coil

Ultra-thick layer with woodgrain/marble textures

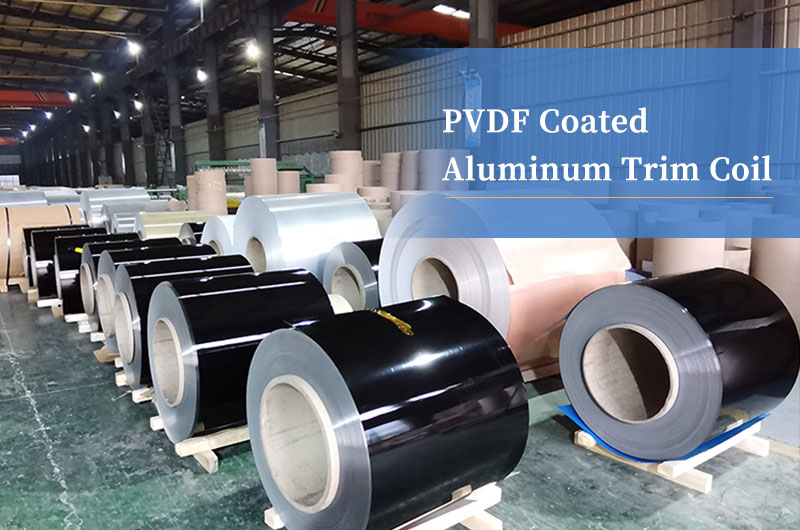

PVDF Coated Aluminum Trim Coil

• Thickness: >25μm
• 15-20 year outdoor warranty

Color Options

Glacier White

Black

Platinum Gray

Charcoal Smoke

Antique Parchment

Rustic Timber

Maple

Adobe Cream

Tuscan Clay

Desert Clay

Mystic Blue

Midnight Blue

Deep Moss

Bronze Metallic

Sterling Gray Metallic

Wood Grains

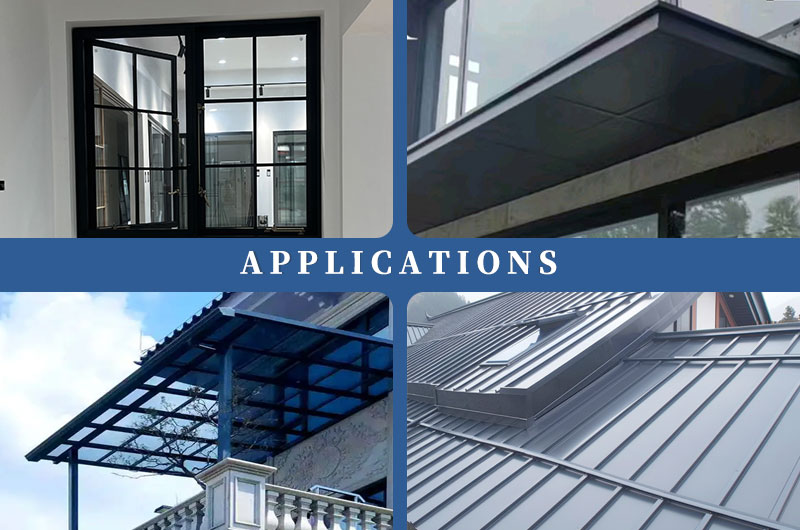

What is an aluminum trim coil used for?

• Door and window decorative trims
• Eaves and ceiling edge finishing
• Rainwater drainage systems
• Waterproofing treatments for building openings
• Decorative components, e.g., shutters, canopies
• Roof waterproofing edge details
• Custom decorative moldings

Why Choose Us?

Worthwill is a professional manufacturer and supplier of aluminum trim coil, equipped with advanced manufacturing processes and a strict quality control system. We are committed to providing high-performance, customized aluminum trim coil solutions for our customers.

Full Customization Capabilities

• Flexible Specifications
• Diverse Alloy Options

Coating Technology Advantages

• Multi-Layer Coating Options
• International Brand Partnerships

Professional Surface Treatments

• Anodizing
• Embossing Technology
• Color Coating Processes
