5052 Aluminum
Tread Plate
Superior marine-grade aluminum tread plate with exceptional corrosion resistance. Ideal for ship decks, offshore platforms, and harsh industrial environments.
Also Known As:
Diamond Plate • Anti-slip Plate • Checker Plate • Marine Plate
What is 5052 Aluminum Tread Plate?
A professional-grade material based on 5052 aluminum alloy, featuring precise Al-Mg-Cr composition and raised anti-slip patterns for demanding marine and industrial applications.
Marine-Grade Excellence
Engineered for ship decks, offshore platforms, and harsh saltwater environments with 25+ year service life.
Alloy Composition
- Base Material 5052 Aluminum Alloy
- Magnesium (Mg) 2.2% - 2.8%
- Chromium (Cr) 0.15% - 0.35%
- Silicon (Si) ≤0.25%
- Standards ASTM B209, EN 1386
Why Mg-Cr? The 2.2-2.8% magnesium provides excellent strength and corrosion resistance, while chromium (0.15-0.35%) prevents stress corrosion cracking—making it ideal for marine and harsh environments.
Key Advantages
Marine Resistant
Seawater corrosion-proof
High Strength
31-38 KSI tensile (H32)
Superior Anti-Slip
0.70 friction coefficient
Easy Welding
No post-weld heat treatment
Lightweight
30% lighter than steel
Comprehensive Specifications
Select the perfect 5052 aluminum tread plate based on temper, thickness, pattern, and surface treatment.
Properties by Temper
Temper determines performance under stress. Select based on your project's formability and strength requirements.

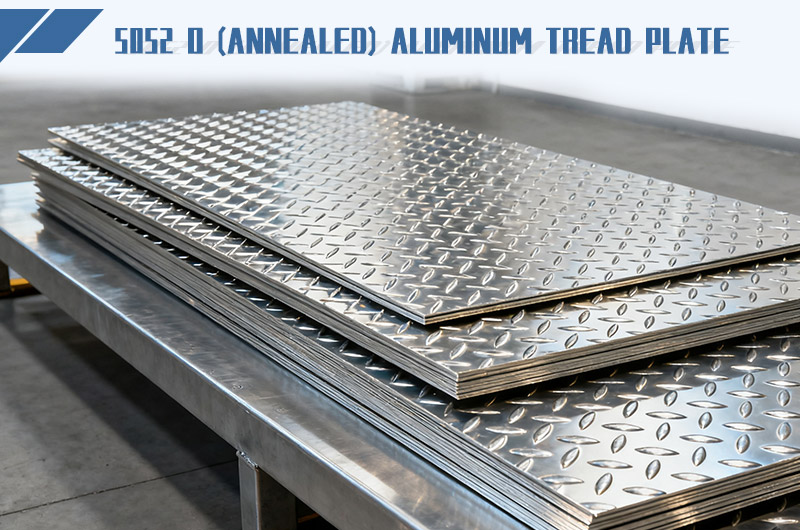

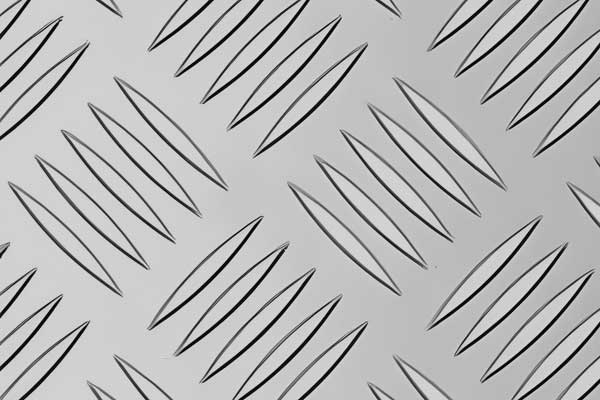

5052-O
Annealed • Soft Temper
- Tensile:89.6-193 MPa
- Elongation:25%
- Bending Factor:≥3
Best For:
Curved components, complex shapes

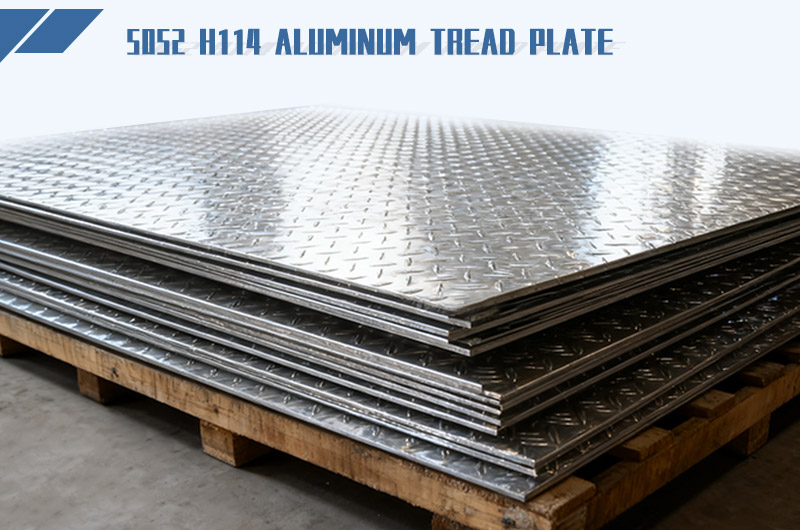

5052-H114
Strain-hardened
- Tensile:≥180 MPa
- Elongation:≥3%
- Bending Factor:≥3
Best For:
Light-load anti-slip surfaces

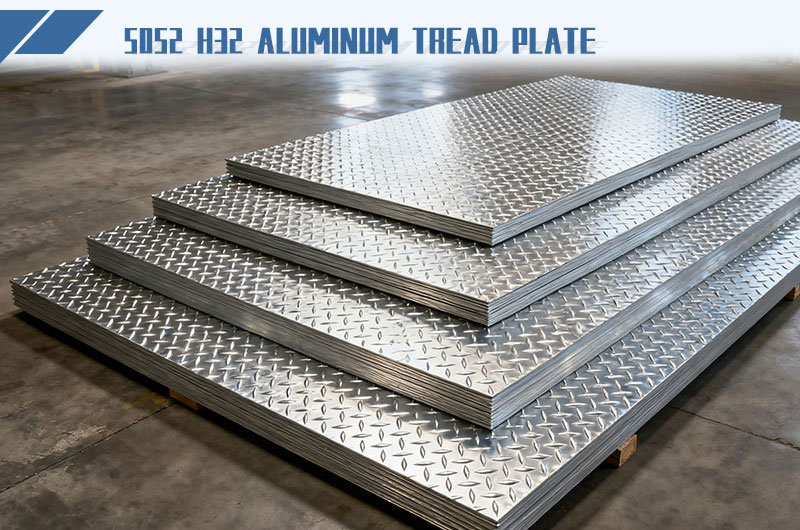

5052-H32
Strain-hardened + Stabilized
- Tensile:193-228 MPa
- Elongation:≥12%
- Bending Factor:≥3
Best For:
Ship decks, truck floors, industrial

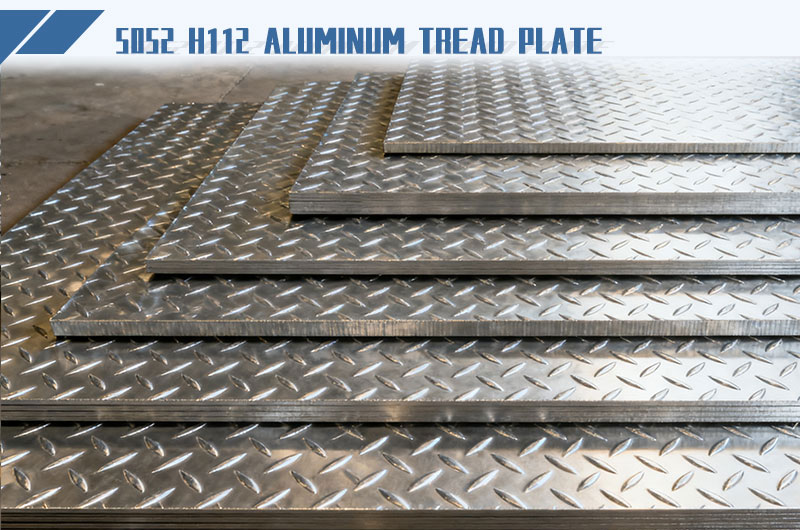

5052-H112
Hot-rolled Annealed
- Tensile:Varies by thickness
- Elongation:≥9.5%
- Bending Factor:≥5
Best For:
Oil tanker walkways, heavy machinery
Classification by Thickness
Thickness determines load-bearing capacity. Select based on your application requirements.
0.025" - 0.125"
(0.8mm - 3.2mm) • Temper O/H32
- Load Capacity: ≤200 lbs/sqft
- Best Seller: 0.063" H32
Applications:

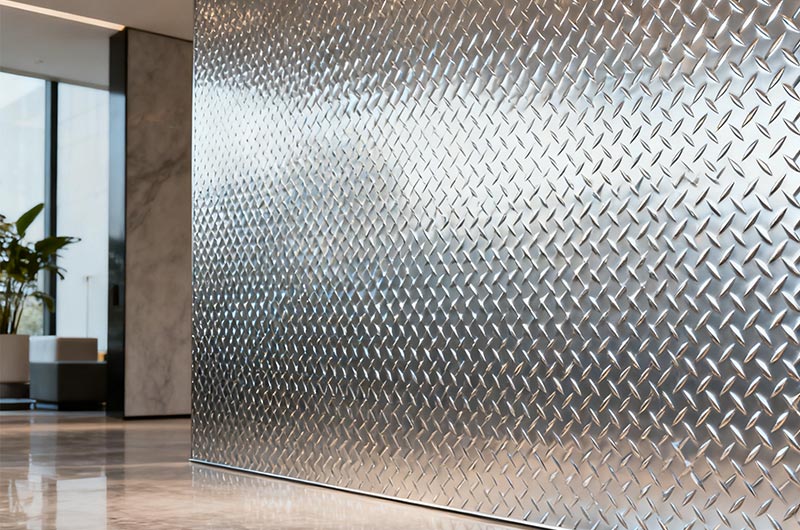

Decorative panels, toolbox lids, light covers
0.188" - 0.250"
(4.8mm - 6.4mm) • Temper H32
- Load Capacity: 200-400 lbs/sqft
- Ideal: 0.188" for ship decks
Applications:

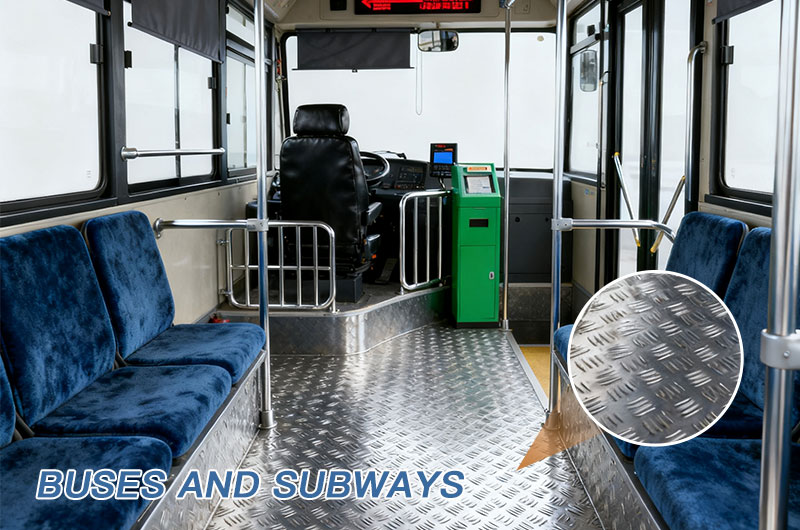

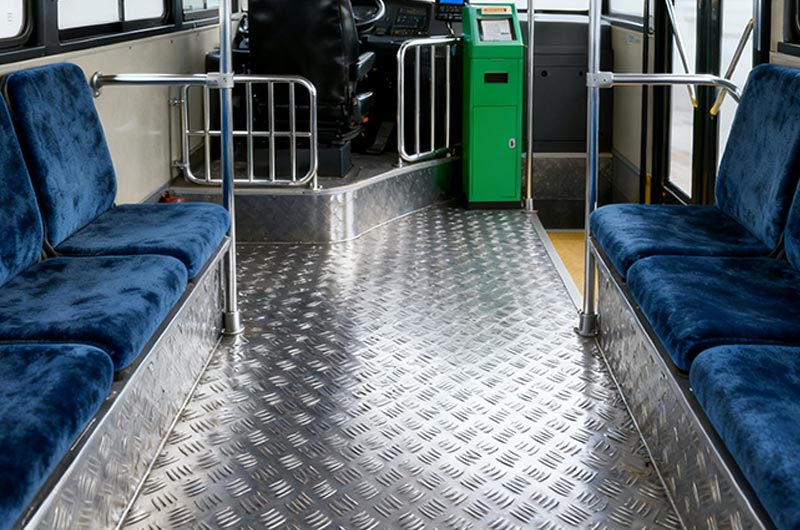

Ship decks, bus floors, industrial walkways
0.375" - 0.5"
(9.5mm - 12mm) • Temper H112
- Load Capacity: ≥400 lbs/sqft
- Maximum strength
Applications:
Oil tanker walkways, heavy machinery bases
Classification by Pattern Type
Pattern type determines anti-slip performance. Higher friction coefficient = better safety.

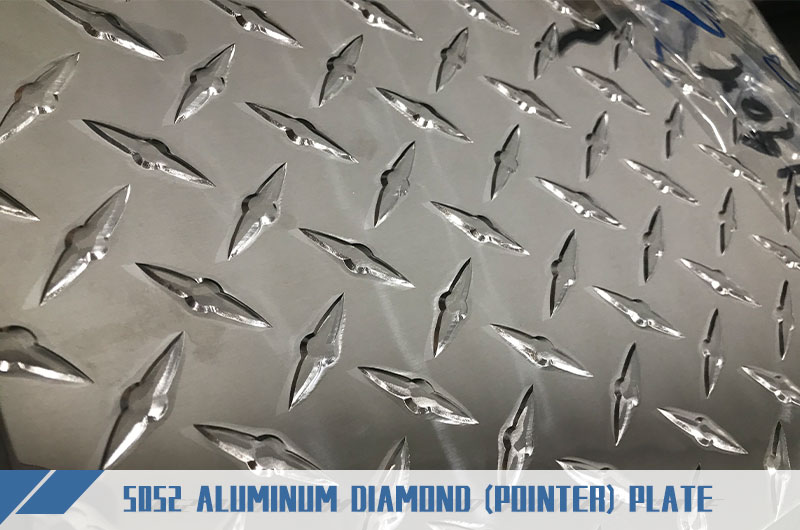

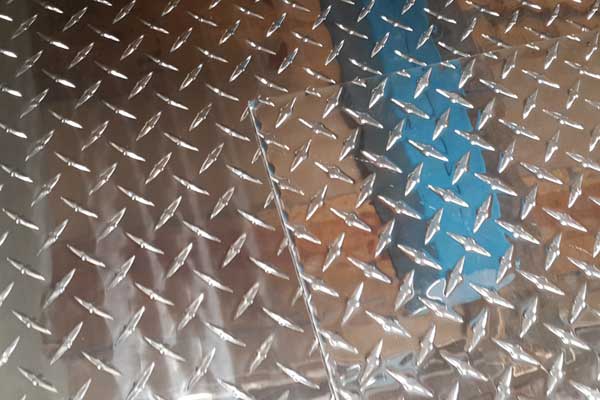

Diamond
Height: 0.8-1.3mm
Garage floors, toolboxes

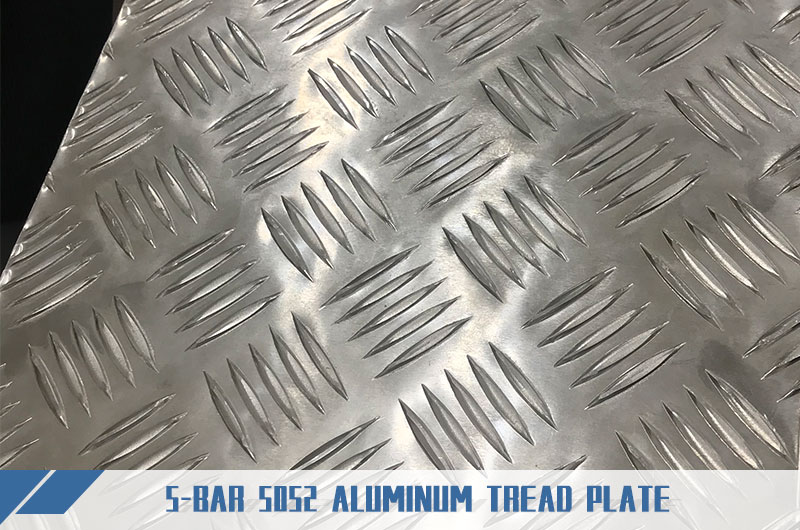

5-Bar
Height: 0.8-1.3mm
Ship decks, oil tankers

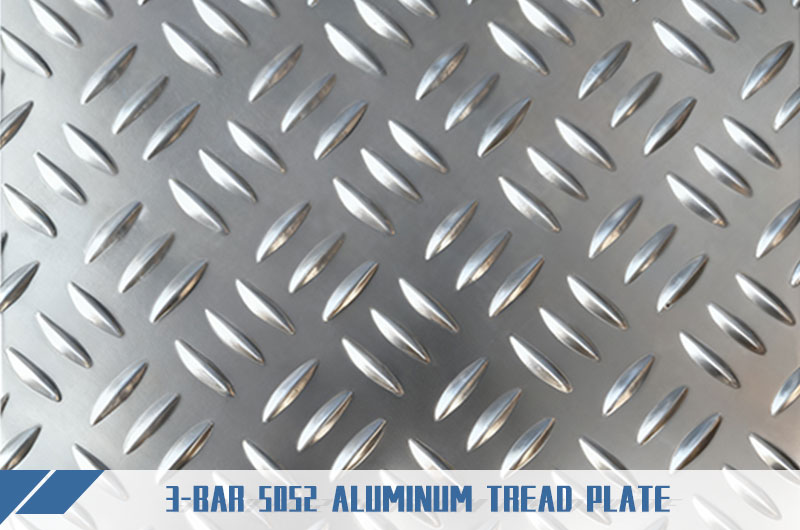

3-Bar
Height: 0.8-1.3mm
Industrial ramps, forklifts

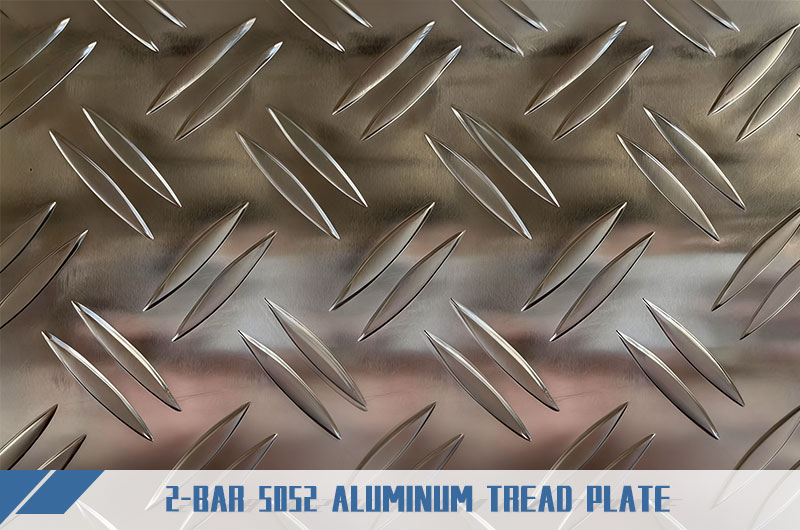

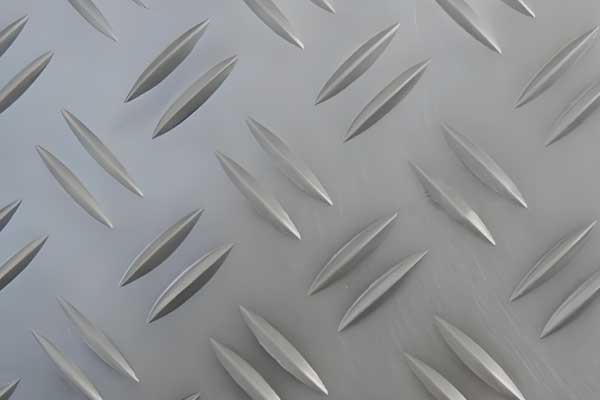

2-Bar
Height: 0.8-1.3mm
Elevator steps, walkways

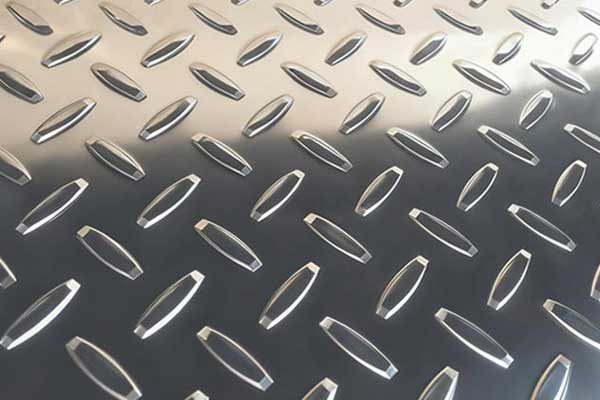

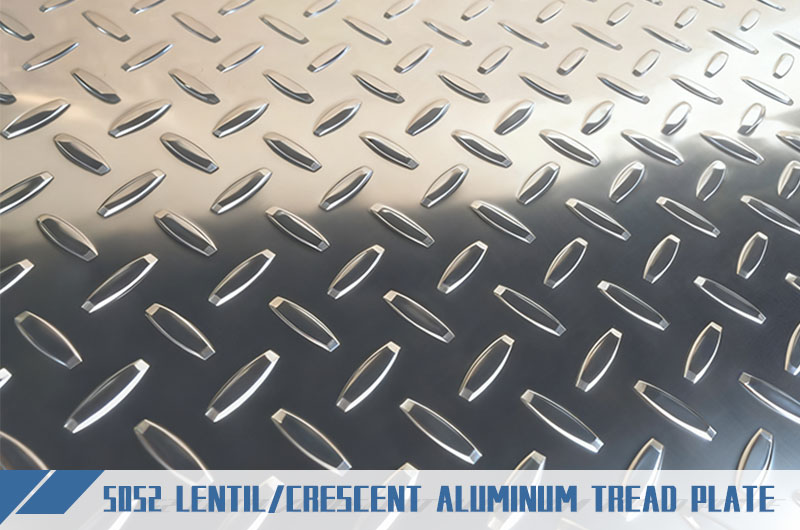

Lentil
Height: 0.3-1.0mm

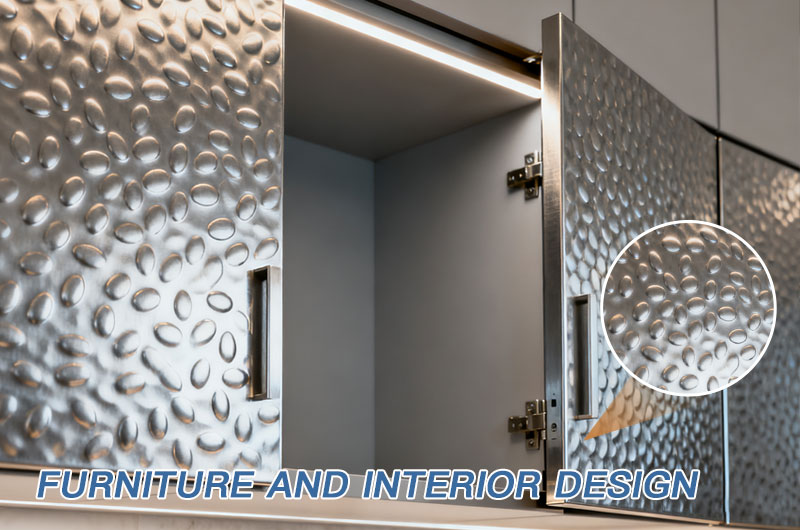

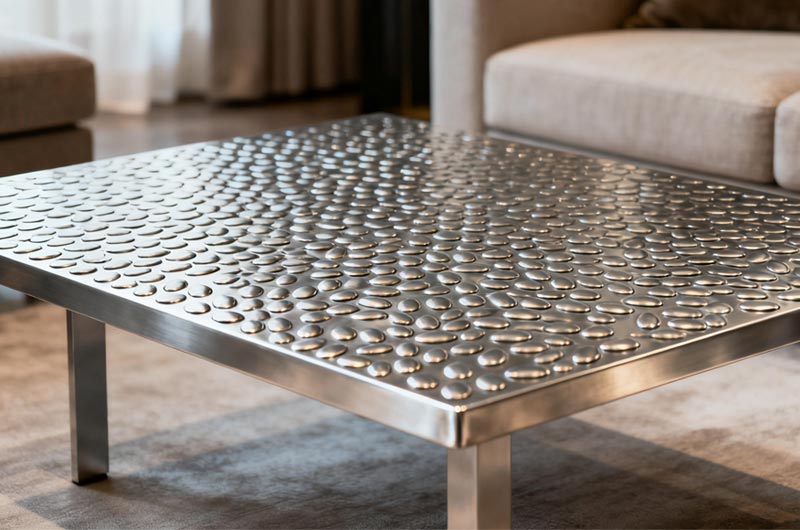

Architecture, furniture
Pattern Height: All patterns feature 0.8-1.3mm height (Lentil: 0.3-1.0mm) for optimal anti-slip performance while maintaining easy cleaning.
Classification by Surface Treatment
Surface treatment determines corrosion resistance and aesthetics. Select based on environment.
Mill Finish
Natural silver, low cost

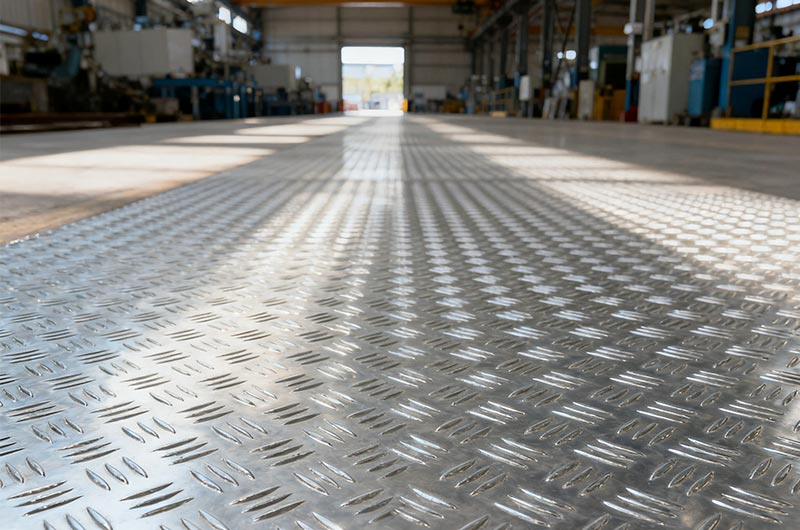

Industrial, factory floors
Bright (Mirror)
85% reflectivity
Malls, hotels, home cabinets
Anodizing
5-20μm oxide film

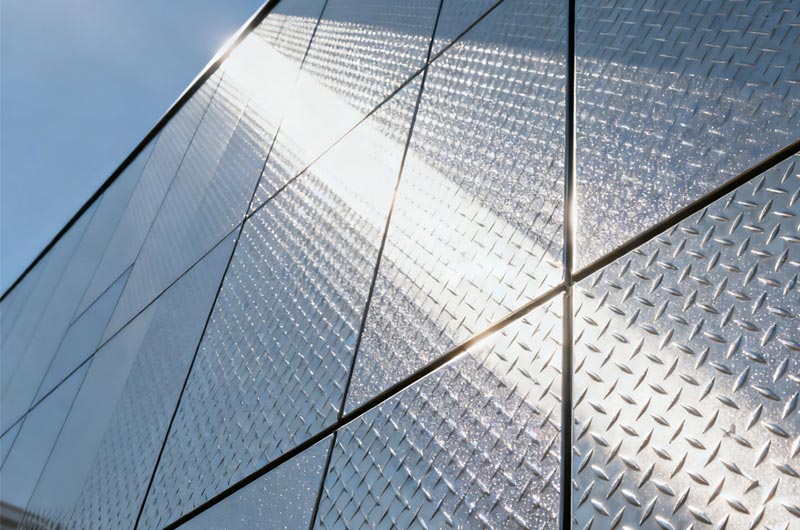

Marine, outdoor curtain walls
Powder Coating
50-100μm polymer film

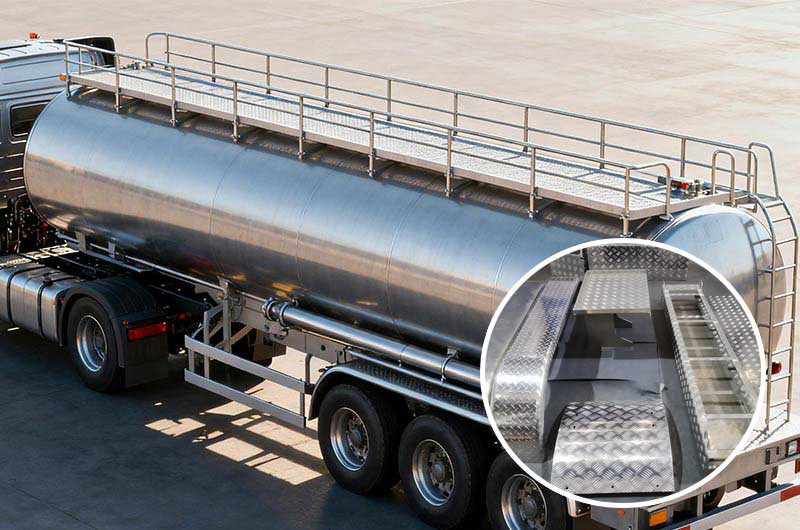

Outdoor signs, oil tankers
In-Stock Inventory

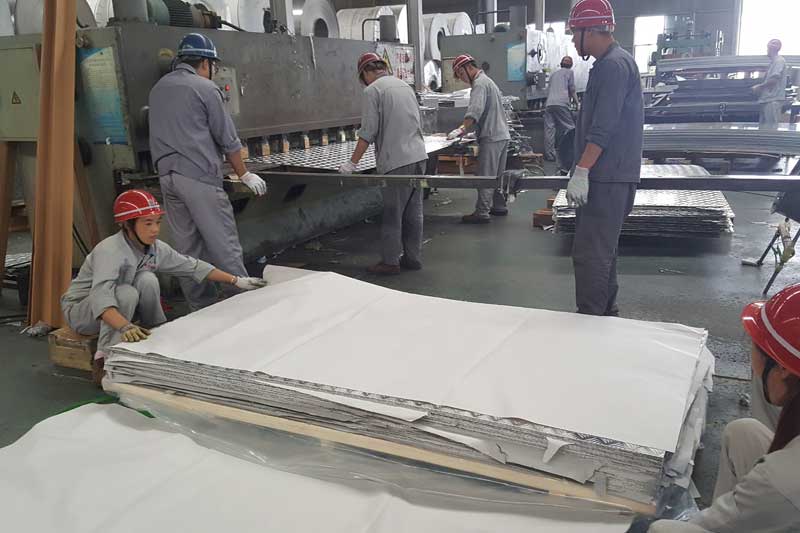

Standard packaging (PE film + ISPM 15 wooden pallets). Diamond pattern, bright/mill finish available.
Standard In-Stock Sizes (Diamond Pattern)
Available Thicknesses:
Available Sizes:
Free Samples
6×6" custom samples with your choice of pattern + surface treatment.
Fast Shipping
In-stock items ship within 3-5 workdays with tracking.
Certified Quality
Each order includes Material Test Certificate (MTC).
Inventory updated Sep 30, 2025. Confirm availability before ordering.
Check Availability & Get Quote
Custom Order Process
Full customization on size, pattern, and surface treatment. No minimum order for most specifications.
Needs Communication
Share project details (scenario, environment, load)
Sample Delivery
Free 6×6" custom samples (pattern + surface treatment)
Quotation Confirmation
Includes delivery time, cost, packaging details

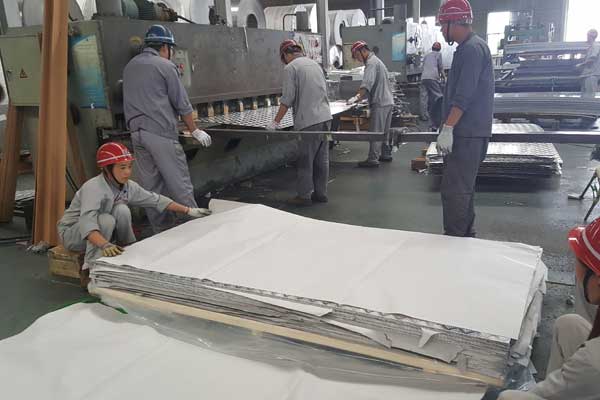

Production
10-15 workdays (extra 5-7 days for custom patterns)
Inspection & Shipping
Final check (dimensions, pattern clarity) before shipment
Regional Standard Sizes
US USA Standard
Imperial48×96" (4×8ft), 60×120" (5×10ft)
EU Europe Standard
Metric1200×2400mm, 1250×2500mm
RU Russia Standard
Metric1250×2500mm
Max Custom Size
Special OrderWidth: up to 1850mm • Arbitrary cutting available
Industry Application Scenarios
5052 Aluminum Tread Plate excels in marine, transportation, industrial, and architectural applications.

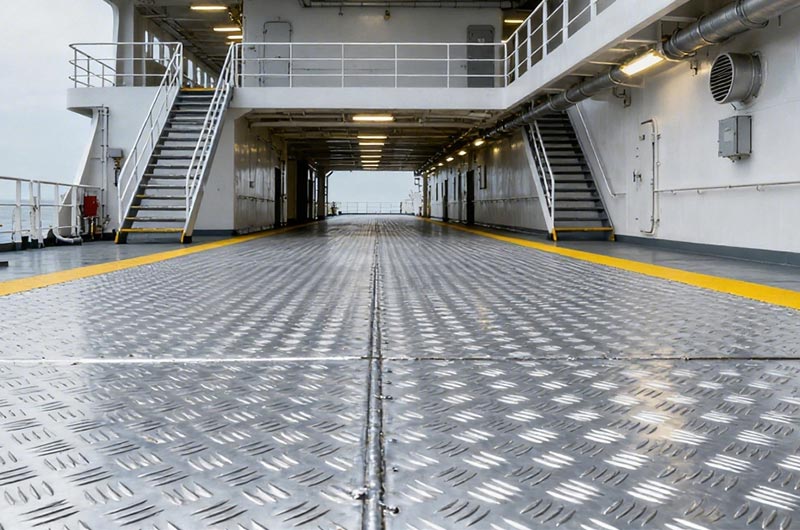

Ship Decks
5052-H32 5-Bar • 0.188"-0.250"
15-20 years service life in seawater

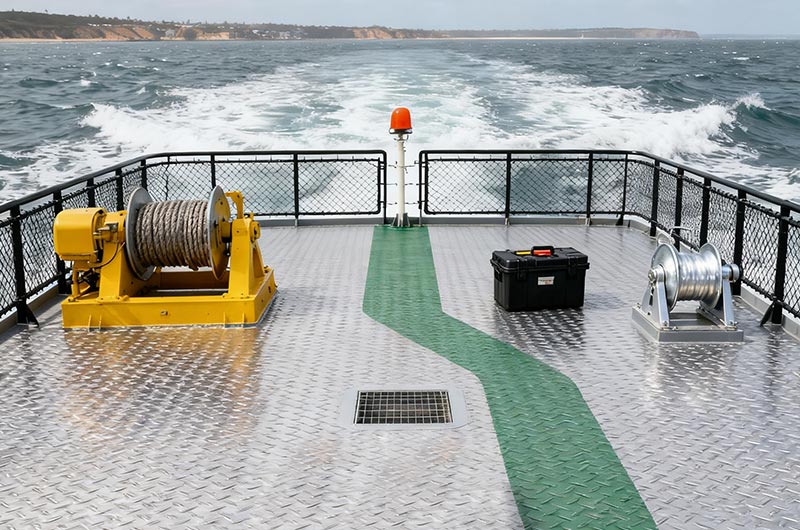

Hull Components
5052-O • 0.125"-0.188" • Mill Finish
Flexible, excellent corrosion resistance

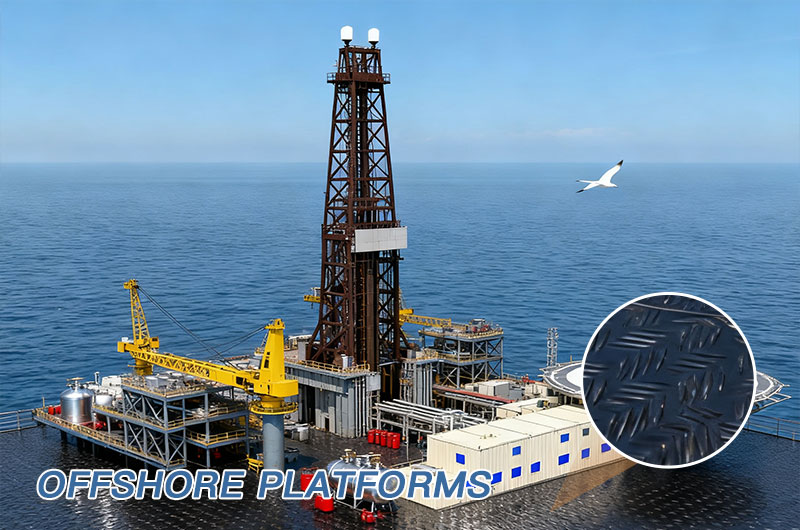

Offshore Platforms
5052-H112 5-Bar • 0.375"
Heavy-load, weather-resistant
Why 5052 Outperforms Other Alloys
Compare 5052 with 3003 and 6061 to find the best alloy for your project.
| Dimension | 5052 Aluminum | 3003 Aluminum | 6061 Aluminum |
|---|---|---|---|
| Tensile Strength (H32/T6) | 31-38 KSI | 14-20 KSI (H22) | 40-45 KSI (T6) |
| Marine Corrosion | Excellent (seawater) | Good (freshwater only) | Moderate (pitting-prone) |
| Weldability | Excellent (no post-weld HT) | Good | Fair (needs post-weld HT) |
| Best Suited For | Marine, transport, harsh environments | Decoration, light indoor | Land-based structures |
Selection Guide: Choose 5052 for marine/harsh environments requiring corrosion resistance + weldability. Use 3003 for budget-friendly indoor/decorative applications. Select 6061 when maximum strength is critical (land-based structures).
