The Guide to Aluminum Channel Letter Coil
From McDonald's golden arches to dimensional signage on bank buildings, from pharmacy storefront signs to shopping mall wayfinding systems — the illuminated letters we see every day all rely on one critical material: Channel Letter Coil.
Whether you are a signage professional, an advertising company purchaser, or a newcomer learning about channel letter fabrication, this guide will help you fully understand:
- What channel letter coil is
- Why aluminum is the best choice
- How to select the right specifications
- What sizes and colors are most popular globally

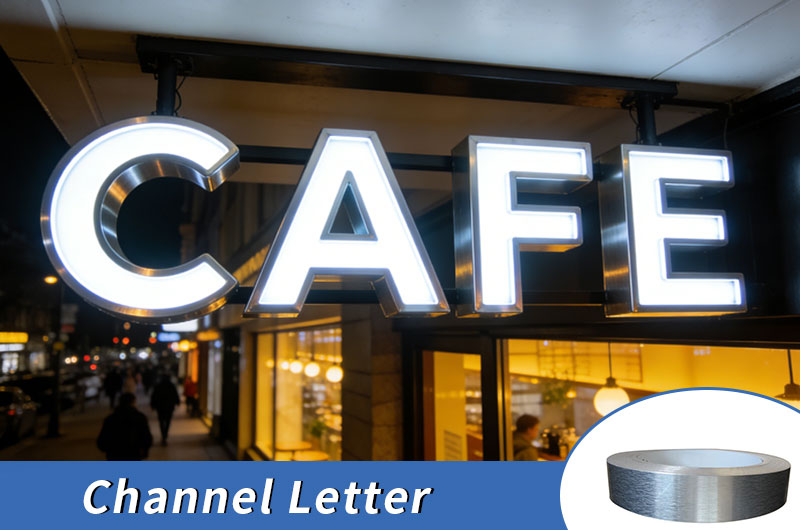

What Is a Channel Letter?
Channel letters are the most widely used type of three-dimensional illuminated signage in commercial applications worldwide. They are commonly seen on storefronts, commercial building facades, office lobbies, and interior wayfinding systems.
Each channel letter consists of three core components:
| Component | English Name | Function |
| Front Panel | Face / Lens | Acrylic panel that transmits light and displays color |
| Side Wall | Return | Forms the three-dimensional contour of the letter |
| Back Panel | Back | Holds LED modules and mounts to the wall or structure |
The front is the “face, ” the back panel is the “back, ” and the return is the “belt” connecting them — determining the letter’s depth and 3D shape.

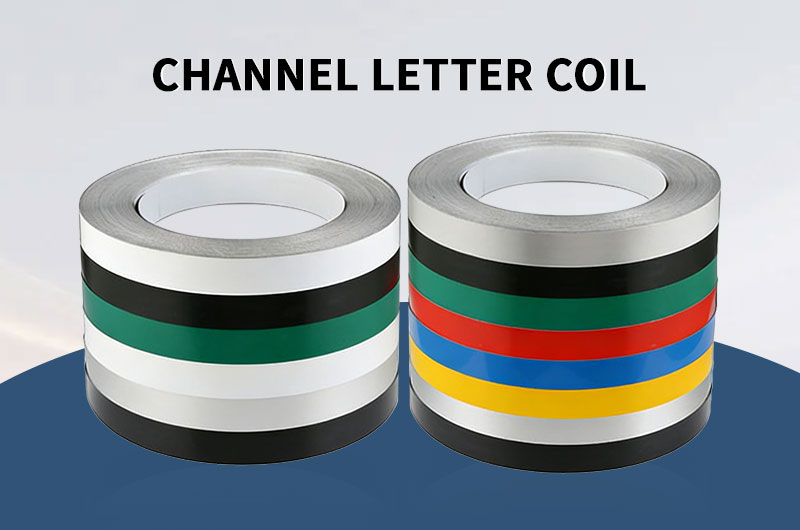

What Is Channel Letter Coil?
Channel letter coil is pre-painted aluminum strip specifically used to fabricate the returns (side walls) of channel letters.
It is made from aluminum alloy as the base material. Surface finishing (such as coil coating, anodizing, or brushing) is completed at the factory. The material is precision slit to signage-industry widths and supplied in coil form.
Fabricators simply unwind the coil and shape it into letters, numbers, Chinese characters, or logos using manual bending tools or CNC channel letter bending machines.
The key advantage is “ready-to-use” material:No additional surface treatment is required, eliminating welding, grinding, and painting processes used in traditional metal fabrication — significantly improving production efficiency.

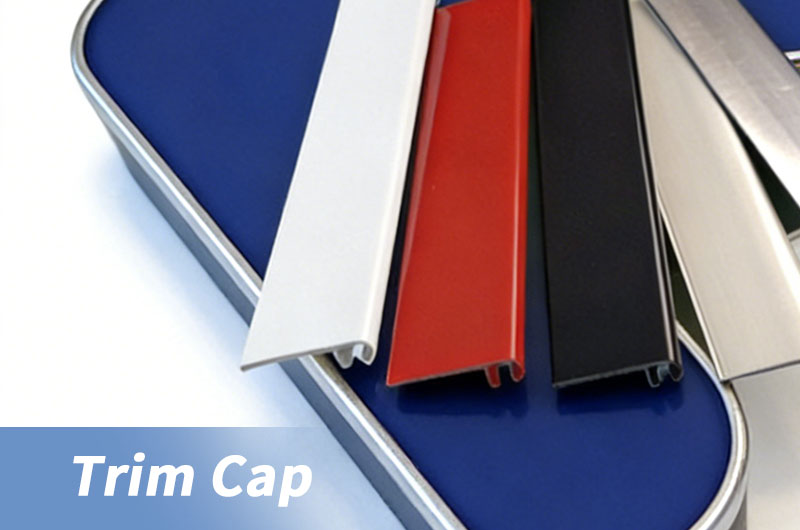

Another essential companion product is Trim Cap, installed along the front edge to secure the acrylic face and provide a decorative finish. Together, return coil and trim cap form the two primary consumables in channel letter production.
Why Aluminum Is the Best Material for Channel Letter Returns
Common return materials include aluminum, galvanized steel, and stainless steel. Aluminum has become the global industry standard due to six key advantages:
1. Easy Fabrication
Excellent flexibility allows easy bending with CNC machines or manual tools. Steel and stainless steel are harder and more labor-intensive.
2. No Welding Required
Pre-painted at the factory. Adhesive bonding is sufficient after bending, eliminating welding, grinding, and repainting — increasing efficiency by over 50%.
3. Lightweight
Density is only one-third of steel (2.7 vs 7.8 g/cm³). Lower shipping costs and easier installation, especially for rooftop signage.
4. Strong Weather Resistance
Natural oxide layer + factory coating ensures long-term outdoor durability. Galvanized steel may rust once its coating is damaged.
5. Excellent Heat Dissipation
Thermal conductivity is approximately three times that of steel, reducing LED temperature, slowing lumen depreciation, and extending lifespan.
6. 100% Recyclable
Recycling aluminum requires only 5% of the energy used to produce primary aluminum — aligned with global sustainability trends.
Aluminum vs. Galvanized Steel vs. Stainless Steel
| Comparison | Aluminum | Galvanized Steel | Stainless Steel |
| Weight | ★★★ Very Light | ★★ Heavy | ★ Very Heavy |
| Bending | ★★★ Very Easy | ★★ Moderate | ★ Difficult |
| CNC Compatibility | Excellent | Good | Requires higher power |
| Corrosion Resistance | ★★★ Excellent | ★★ Moderate | ★★★ Excellent |
| Heat Dissipation | ★★★ Excellent | ★★ Moderate | ★ Poor |
| Pre-painted Options | 30+ Colors | Limited | Usually post-painted |
| Welding Required | No | Usually | Always |
| Grinding/Painting | No | Required | Required |
| Production Efficiency | ★★★ Fastest | ★★ Slower | ★ Slowest |
| Material Cost | Medium | Lowest | Highest |
| Overall Processing Cost | ★★★ Lowest | ★★ Higher | ★ Highest |
| Premium Appearance | Good | Moderate | Best |
Conclusion:
- Aluminum offers the best overall value and is the mainstream global choice.
- Galvanized steel is used only for highly cost-sensitive projects.
- Stainless steel is reserved for premium signage in luxury retail and five-star hotels.
Key Specifications — How to Choose
When purchasing channel letter coil, focus on four core parameters: thickness, width, color, and alloy.
Thickness Selection
| Inch | Metric | Market Position & Application |
| .020" | 0.5mm | Thin; small indoor letters (Asia common) |
| .024" | 0.6mm | Light-duty indoor signage |
| .032" | 0.8mm | Economical indoor/outdoor small letters |
| .040" | 1.0mm | Industry standard — best balance |
| .050" | 1.27mm | Reinforced for larger outdoor letters |
| .063" | 1.6mm | Heavy-duty for very large or high-wind areas |
.040" (1.0mm) accounts for over 70% of shipments in North America.
Width Selection
Width = letter depth.
| Width (Inch) | Width (Metric) | Application |
| 1"–2" | 25–50mm | Ultra-thin mini letters |
| 2.5"–3" | 60–76mm | Small indoor letters |
| 3.5" | 89mm | Standard small letters |
| 4.3" | 110mm | Medium letters |
| 5.3" | 135mm | Most common outdoor size |
| 6"–8" | 152–200mm | Large rooftop signage |
5.3" (135mm) and 3.5" (89mm) cover most North American projects.

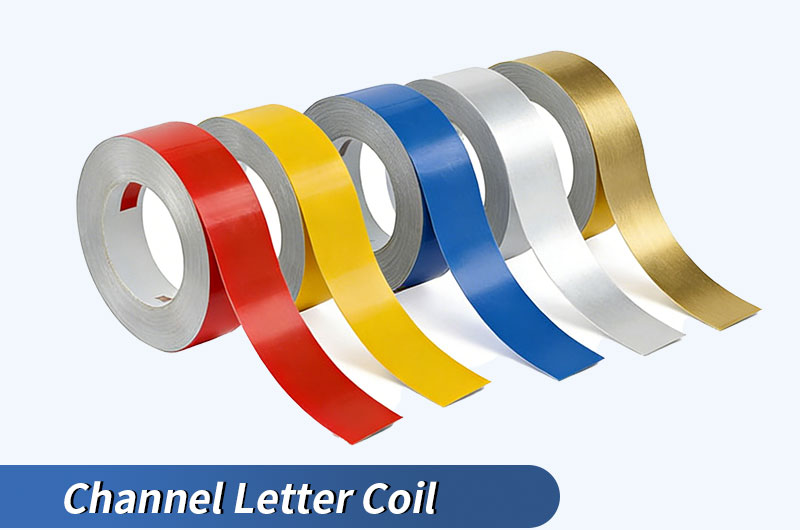

Color Selection
Top 10 Most Popular Colors Globally:
| Rank | Color | Common Application |
| 1 | Gloss White | Universal |
| 2 | Gloss Black | Premium look |
| 3 | Matte Black | Modern style |
| 4 | Mill Finish | Custom painting |
| 5 | Bronze / Dark Bronze | Hotels, upscale retail |
| 6 | Hunter Red / Brite Red | Restaurants |
| 7 | Brushed Silver | Tech brands |
| 8 | Chevron Blue / Pepsi Blue | Brand identity |
| 9 | Yellow | Fast food & retail |
| 10 | Lucky Green / Ivy Green | Pharmacy & organic brands |
Corporate Identity (CI) custom colors using Pantone matching significantly increase order value.
Alloy Selection
| Alloy | Characteristics | Recommended Use |
| 1050 / 1060 | Pure aluminum, very soft | Manual bending |
| 3003 / 3105 | Balanced strength & flexibility | Most universal, CNC processing |
| 5005 / 5052 | Higher strength | Large outdoor signage |
Channel Letter Types & Aluminum Coil Usage
| Type | Lighting | Coil Use | Trim Cap |
| Front-lit | Front illuminated | Return | Yes |
| Halo-lit | Back halo | Return + Face Panel | Optional |
| Front & Back Lit | Both sides | Return | Yes |
| Trimless | Flush face | Return | No |
| Trim Cap Letter | Front + trim cap | Return + Trim Cap | Required |
| Mini Letter | Ultra-thin | Narrow coil | Depends |
7-Point Checklist Before Ordering
- Thickness suitable for application
- Correct width for letter depth
- Color matches brand VI
- Ultra White reflective backing
- PE protective film
- Recommended alloy: 3003-H24
- Machine compatibility (inner diameter)
FAQ
Q1: Does aluminum coil "spring back" when bent?
Yes, slight springback is normal.
Solutions: CNC compensation, magnetic positioning tools, or choosing H24
temper.
Q2: Why Ultra White backing?
Increases effective brightness by 20–30% and reduces LED usage.
Q3: When to choose mill finish?
For custom painting projects or hidden structural components.
Q4: Is it compatible with CNC bending machines?
Yes. Compatible with most major brands. Just confirm inner diameter (150/400/500mm).
Conclusion
Channel letter coil is a foundational material for the signage industry. Selecting the right specifications is key to maximizing efficiency and controlling costs.
