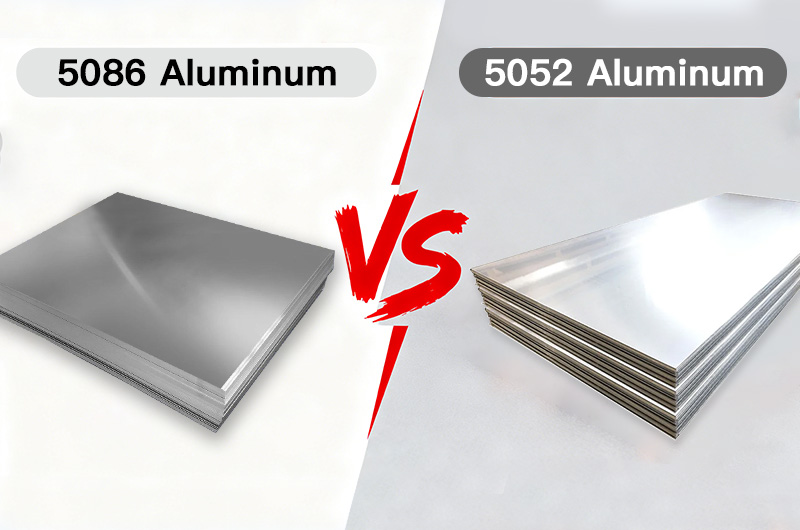

5086 vs 5052 Aluminum

Introduction

In the world of industrial and marine aluminum alloys, the 5xxx series (Aluminum-Magnesium) reigns supreme. Among these, 5052 and 5086 aluminum are the two most frequently compared contenders. While they may look identical on a warehouse shelf, specifying the wrong alloy can lead to catastrophic structural failure or unnecessary budget overruns.

The Key Difference

The fundamental distinction lies in the trade-off between strength and formability:

• 5052 aluminum is the "Workhorse"—versatile, highly formable, and cost-effective for general applications.
• 5086 aluminum is the "Warrior"—engineered with 60% more magnesium to survive the harsh brutality of open-ocean environments and high-stress structural loads.

This comprehensive guide dissects the metallurgical, mechanical, and operational differences to help engineers, naval architects, and procurement officers make the precise choice for their applications.

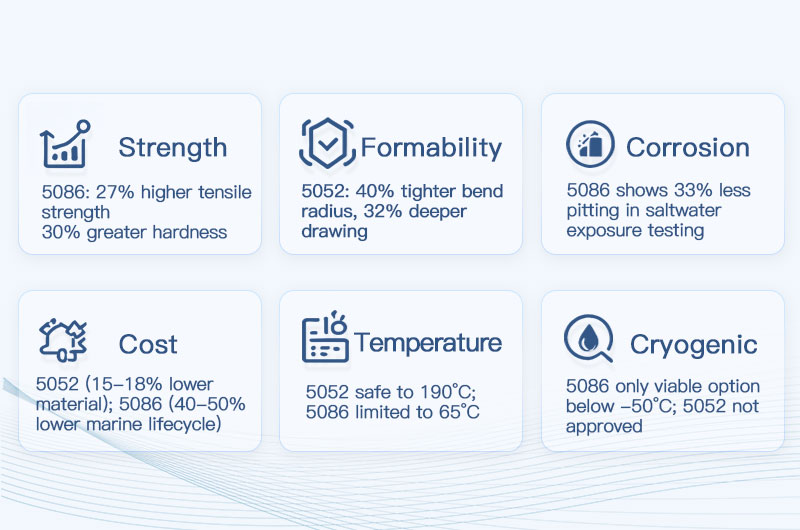

Quick Comparison

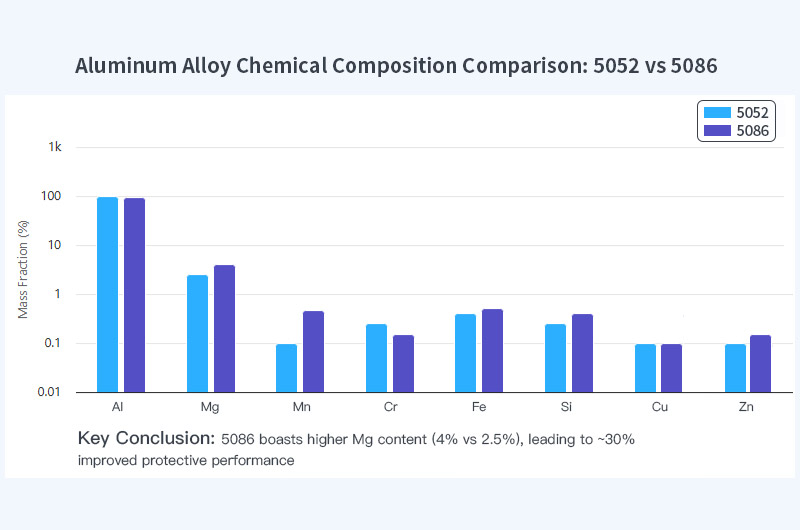

Chemical Composition & Metallurgical DNA

The performance gap between these alloys begins at the atomic level. Magnesium (Mg) is the primary alloying element, acting as the solid-solution strengthener.

Chemical Composition (Weight %)

Engineering Analysis

• The 3% Magnesium Threshold: 5052 aluminum sits safely below the 3% Mg threshold. 5086, with an average of 4% Mg, crosses into the "high-magnesium" category. This extra magnesium provides a 27-30% strength boost but introduces susceptibility to "sensitization" (discussed in the Corrosion section).
• Manganese Synergy: 5086 aluminum contains significantly more Manganese. This works in synergy with Magnesium to improve the alloy's toughness and modifies the iron-rich intermetallics, making them less harmful to corrosion resistance.

Mechanical Properties: Strength vs. Ductility

Understanding the temper designation is critical. A "Quarter Hard" (H32) is the most common temper for general fabrication.

Head-to-Head: The H32 Temper Showdown

(Data Source: Aluminum Association Standards & Data 2024)

Temper Deep Dive

• H32/H34 (Stabilized): Used for general applications.
• H116 / H321 (Marine Specific): These are mandatory tempers for 5086 in marine environments.
  • Why? Standard tempers in high-Mg alloys can form a continuous network of ββ-phase (Mg2Al3Mg2Al3) at the grain boundaries. This network acts like a fuse, leading to rapid corrosion.
  • H116/H321 processing ensures these precipitates are scattered discontinuously, preventing intergranular corrosion. 5052 does not require these special tempers due to its lower Mg content.

Corrosion Resistance & Environmental Durability

This is often the deciding factor for naval architects. While 5052 is "marine capable, " 5086 is "marine optimized."

Saltwater Performance (ASTM G85 Test Results)

Under 1000 hours of continuous acidified salt fog:

• 5052 aluminum: Shows minor pitting; depth approx. 0.12mm.
• 5086 aluminum: Shows minimal pitting; depth approx. 0.08mm.
• Verdict: 5086 aluminum offers a 33% thicker and more stable oxide layer, essentially self-healing faster than chloride ions can penetrate.

The Temperature Trap: Sensitization (Critical)

• The Risk: When 5xxx alloys with >3% Mg (like 5086) are exposed to temperatures between 65°C and 175°C (150°F - 350°F) for prolonged periods, Magnesium atoms migrate to grain boundaries. This creates anodic pathways known as Sensitization.
• The Consequence: A sensitized 5086 hull can suffer catastrophic Stress Corrosion Cracking (SCC).
• The Solution:
  • Use 5052 aluminum for applications >65°C (e.g., engine room lagging, hot tanks). Its lower Mg content makes it immune to sensitization.
  • Use 5086 aluminum strictly below 65°C operational temperature.

Marine Service Life Estimation

• 5052 Hull: 15-20 years (requires frequent anode checks and likely hull paint).
• 5086 Hull: 30+ years (often left unpainted above the waterline; highly resistant to exfoliation).

Fabrication: Welding, Machining, and Forming

How easy is it to build with these alloys?

Formability (Bending & Rolling)

• 5052 aluminum (The Winner):
  • Can take a bend radius of 1T to 1.5T in H32 temper.
  • Perfect for fuel tanks with complex baffles, tight corners, and intricate architectural panels.
  • High elongation allows for deep drawing (e.g., cookware, deep boxes).
• 5086 aluminum (The Challenge):
  • Requires a generous radius (min 2.5T to 3T).
  • High "Springback": Due to higher yield strength, 5086 aluminum springs back more after bending. Operators must over-bend by 2-4 degrees to achieve the desired angle.
  • Risk: Attempting tight bends on 5086 usually results in "orange peel" surface cracking or complete fracture.

Welding Characteristics

Both alloys are excellent candidates for TIG (GTAW) and MIG (GMAW) welding.

• Filler Metal Rule: ALWAYS use ER5356 or ER5183.
• Weld Strength (Joint Efficiency):
  • Welding heat softens the Heat Affected Zone (HAZ) back to the "O" (annealed) temper.
  • Even in the annealed state, 5086 retains a yield strength of ~130 MPa, whereas 5052 drops to ~90 MPa. Thus, 5086 welded structures are significantly stronger globally.

Warning: NEVER use ER4043. The silicon in 4043 reacts with the magnesium in the plate to form brittle Mg₂Si, compromising weld ductility and corrosion resistance.

Machinability Nuances

• 5052 aluminum is "Gummy": Because it is softer, 5052 tends to be "sticky" or gummy during CNC machining. It produces long, stringy chips that can wrap around tooling. It is prone to forming a "Built-Up Edge" (BUE) on cutters, resulting in a poorer surface finish.
• 5086 aluminum is Cleaner: The higher hardness allows chips to break more easily. While it requires higher cutting forces and increases tool wear by ~20%, it generally yields a better surface finish with less "smearing."

Cost Analysis: Upfront vs. Lifecycle

For project managers, the decision often comes down to the budget.

Material Cost Differential

• Base Price: 5086 aluminum generally commands a 15% - 20% premium over 5052.
• Certification Cost: Marine grade aluminum 5086 (H116/H321) often requires Class Society certification (DNV, ABS, Lloyd's), adding documentation costs.

Total Cost of Ownership (TCO) - 20 Year View

Scenario: A 40-foot commercial workboat.

1. Construction with 5052 aluminum:
   • Savings: Lower material cost, faster machining/bending.
   • Costs: Requires protective painting system (materials + labor). Higher maintenance (corrosion repairs) starting year 10. Potential resale value is lower.
2. Construction with 5086 aluminum:
   • Costs: Higher material bill. Slower fabrication (pre-heating thick plates, careful bending).
   • Savings: Can often operate "bare metal" (no paint). Minimal hull maintenance. Service life extends beyond 30 years. High resale/scrap value.

Verdict: For short-term projects or internal components, 5052 wins. For long-term capital assets (ships, infrastructure), 5086 delivers an ROI of 30-50% over the asset's life.

Application Cheat Sheet

Where to use 5052 aluminum

• Fuel Tanks: Excellent formability for baffles; good chemical resistance to fuels.
• Small Freshwater Boats: John boats, canoes, pontoon logs (cost-effective).
• Cabinetry & Enclosures: Electrical boxes, medical equipment chassis.
• Architectural Facades: Anodizes well with a clear, bright finish.
• Heat Exchangers: Better thermal conductivity than 5086.
• High Temp Areas: Components exposed to >65°C (150°F).

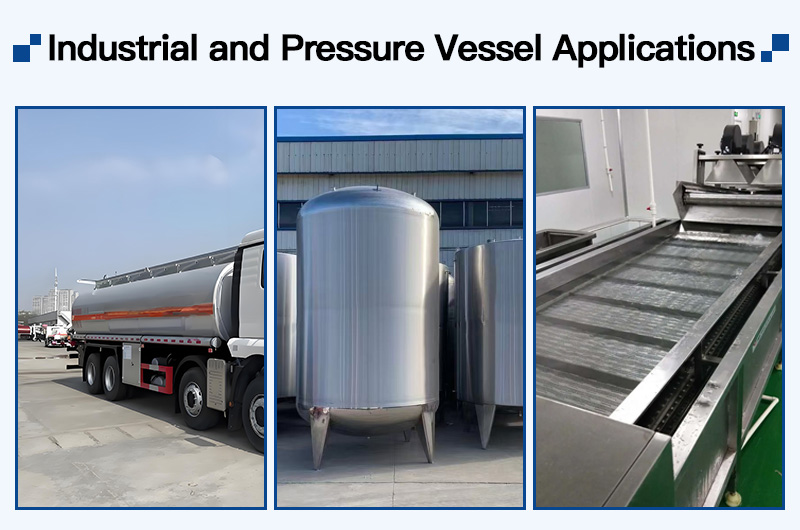

Where to use 5086 aluminum

• Ocean-Going Hulls: The industry standard for saltwater durability.
• Pressure Vessels: High weld efficiency meets ASME Boiler Code requirements.
• Cryogenics: LNG Tanks and piping (strength increases at -196°C).
• Structural Armor: High hardness provides ballistic protection (deflector plates).
• Heavy Duty Decks: Hardness resists wear from heavy boots and cargo dragging.
• Workboat Superstructures: High fatigue resistance for vibrating machinery spaces.

Quality Verification & Procurement Strategy

Avoiding counterfeit or substandard material is critical, especially for 5086 marine grades.

The "Red Flag" Checklist

When buying aluminum, watch for these warning signs:

1. Missing Temper Specs: If the quote just says "5086 aluminum Plate" without specifying H116, H321, or H32, reject it.
2. No Stenciling: Marine grade plates should be line-marked (stenciled) with the alloy, temper, and lot number.
3. Cheap "Marine Grade": If 5086 is priced the same as 5052, it likely isn't true 5086.

Required Testing for 5086 Marine Grade Aluminum

For structural marine applications, your Mill Test Certificate (MTC) must verify the following ASTM tests:

• ASTM G66 (ASSET Test): Visual assessment of exfoliation corrosion susceptibility.
• ASTM G67 (NAMLT Test): Quantitative test for intergranular corrosion. This is the gold standard for ensuring the material won't fail at sea.
• ASTM B928: The governing specification for high-magnesium marine aluminum.

Conclusion: The Final Verdict

The choice between 5052 and 5086 is rarely about "good vs. bad"—it is about "adequate vs. optimal."

• Select 5052 aluminum if your project demands complex shaping (tight bends), operates in freshwater/dry environments, or is driven by strict budget constraints for non-critical components. It is the versatile champion of general fabrication.
• Select 5086 aluminum if your project involves welded structural loads, continuous saltwater immersion, or requires a service life measured in decades rather than years. The premium paid for 5086 pays dividends in safety, strength, and reduced maintenance.

Engineering Rule of Thumb:

"If you have to bend it into a pretzel, use 5052 aluminum. If you have to trust your life to it in a storm, use 5086 aluminum."
