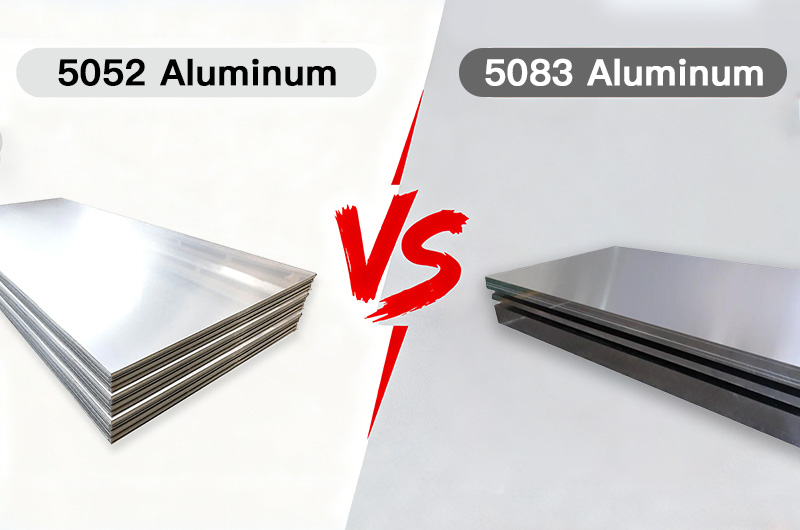

5083 vs. 5052 Aluminum

Introduction

Choosing between 5083 and 5052 aluminum alloys is a critical decision that impacts structural integrity, fabrication costs, and service life. Both are non-heat-treatable aluminum-magnesium alloys, but they occupy distinct engineering niches.

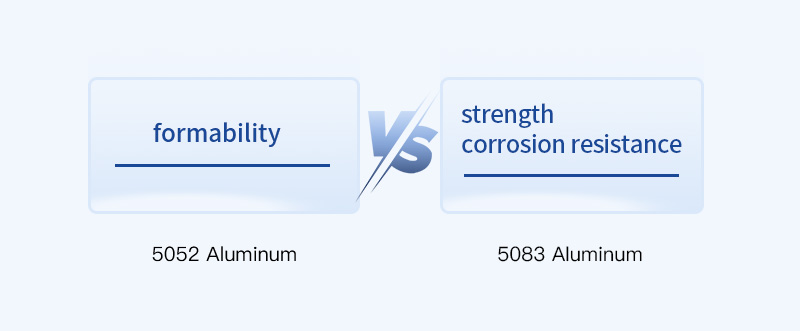

The Critical Distinction

The fundamental distinction lies in magnesium content. 5083 contains nearly twice the magnesium of 5052 (4.5% vs. 2.5%), making it the strongest non-heat-treatable alloy available. This results in a 39% strength advantage but a 50% reduction in formability.

• 5052 Aluminum is the master of formability, ideal for complex shapes, fuel tanks, and general sheet metal work.
• 5083 Aluminum is the master of strength and corrosion resistance, the standard for marine hulls, pressure vessels, and cryogenic tanks.

Quick Comparison Overview

This guide analyzes the technical trade-offs to help you make the correct material selection.

Sources include the Aluminum Association (AA) standards, Alcoa technical documentation, Matweb, and other verified materials databases.

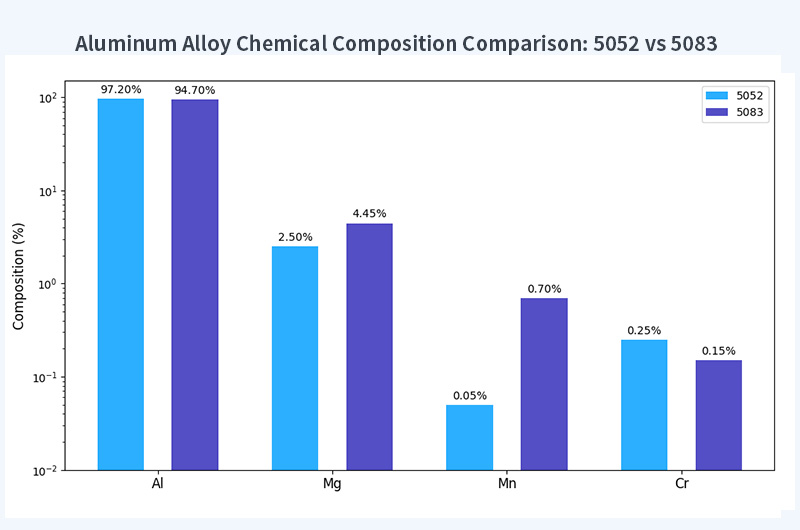

Chemical Composition: The Source of Performance

The difference in performance is dictated by chemistry.

Key Insight: 5083 is essentially a "super-charged" 5052. The additional magnesium strengthens the solid solution, creating a material that rivals some mild steels in strength-to-weight ratio, but requires larger bend radii to prevent cracking.

Mechanical Properties Comparison

We compare the most common temper, H32 (Quarter Hard), which represents 70% of the market usage.

Strength and Hardness (H32 Temper)

Engineering Implication:

• 5083 Aluminum is required for structural components subjected to high dynamic loads (e.g., ship hulls impacting waves, dump truck bodies). Its higher hardness also provides 40-60% better wear resistance on flooring and decks.
• 5052 Aluminum offers moderate strength sufficient for non-structural panels, tanks, and cabinetry, where the high strength of 5083 would be over-engineering.

Marine-Grade Tempers (5083 Exclusive)

A crucial distinction is that 5083 is available in specialized tempers H116 and H321.

• Purpose: These tempers are processed to prevent intergranular corrosion and exfoliation, which can plague high-magnesium alloys.
• Regulation: Commercial classification societies (ABS, DNV-GL) mandate 5083-H116/H321 for hull plating. 5052 does not require (and is not available in) these tempers.

Formability: The Critical Trade-Off

This is where 5052 aluminum shines. As strength increases, ductility decreases.

Minimum Bend Radius

(T = Material Thickness)

Deep Drawing

• 5052 Aluminum: Excellent. Can be drawn into deep shapes like kitchen sinks, cookware, and complex fuel tank baffles.
• 5083 Aluminum: Limited. Prone to cracking in deep draw operations.

Selection Rule: If your design requires a bend radius tighter than 2x material thickness, or involves complex compound curves, 5052 is the necessary choice.

Corrosion Resistance: The Saltwater Test

While both are "marine aluminum, " 5083 offers a superior tier of protection.

ASTM G85 Salt Spray Test Results:

• Pitting: 5083 exhibits 42% less pitting depth than 5052 after 1000 hours.
• Mass Loss: 5083 loses 39% less material mass.

Real-World Service Life:

• Continuous Seawater Immersion:
• 5083 Aluminum: 30-40 years.
• 5052 Aluminum: 15-20 years (requires more anode protection/coating).
• Freshwater/Atmospheric: Both perform excellently (30+ years).

Cost Insight: For ocean-going vessels, the upfront cost premium of 5083 is recovered within 5 years through reduced maintenance. For freshwater boats or architectural panels, 5052 provides sufficient corrosion resistance at a lower cost.

Welding Performance and Codes

Both alloys are highly weldable using TIG and MIG processes, but they behave differently post-weld.

Weld Strength Retention

When aluminum is welded, the heat-affected zone (HAZ) loses strength. The retained strength is critical for pressure vessels.

Filler Metal Recommendations:

• 5052 Aluminum: ER5356 or ER5183.
• 5083 Aluminum: ER5183 (preferred for strength) or ER5356.

Key Application: Only 5083 consistently meets the ASME Boiler and Pressure Vessel Code requirements for welded unfired pressure vessels. 5052 is generally not permitted for welded pressure vessels requiring high design allowables.

Temperature Extremes: Cryogenic vs. High Temp

Cryogenic Service (LNG)

5083 is the global standard for Liquefied Natural Gas (LNG) carriers and storage (-162°C).

• Behavior: Unlike steel, 5083 gains strength (tensile rises ~40%) and retains ductility at cryogenic temperatures.
• 5052 Aluminum: Not typically approved for critical cryogenic structural components.

High Temperature Warning

Critical Safety Note: neither 5052 nor 5083 should be used in continuous service above 65°C (150°F).

Risk: Prolonged heat exposure causes precipitation of magnesium compounds at grain boundaries, leading to Stress Corrosion Cracking (SCC), especially in saline environments. This is particularly critical for 5083 due to its high Mg content.

Machinability and Cost Analysis

Machinability

• 5052 Aluminum: Better for heavy machining. It is softer, allowing for faster cutting speeds (approx. 30% faster) and extending tool life.
• 5083 Aluminum: Harder and produces higher cutting forces. While machinable, it increases wear on tooling.
• Finish: 5052 generally provides a smoother surface finish after machining and anodizes better (clearer appearance) than 5083, which can turn slightly gray/yellow due to manganese.

Cost Comparison

• Material Cost: 5083 typically carries a 15-20% price premium over 5052.
• Processing Cost: 5083 requires higher tonnage for forming and slower machining speeds.

Verdict: If the strength of 5083 is not required, using 5052 yields immediate savings in both material and fabrication costs.

Application-Specific Recommendations

Marine Construction

Industrial & General

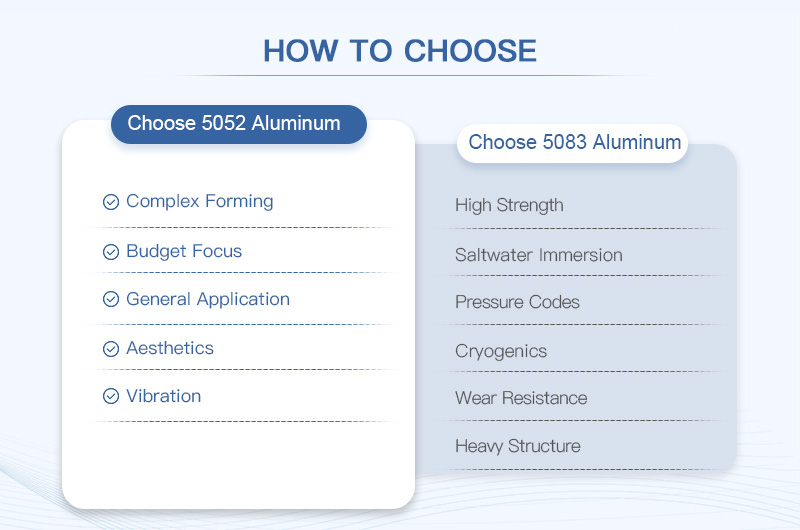

Decision Framework: How to Choose

Use this checklist to finalize your material selection.

Choose 5052 Aluminum If:

1. Complex Forming: You need tight bend radii (<2T) or deep drawing capabilities.
2. Budget Focus: You need to reduce material and machining costs (approx. 20% savings).
3. General Application: The part is for architectural, cabinetry, or freshwater marine use.
4. Aesthetics: You require a high-quality anodized finish.
5. Vibration: You need excellent fatigue strength but moderate static strength (e.g., baffles, fans).

Choose 5083 Aluminum If:

1. High Strength: You need the highest strength non-heat-treatable alloy (40% stronger than 5052).
2. Saltwater Immersion: The component will be submerged in seawater continuously (hulls, platforms).
3. Pressure Codes: You are building a welded pressure vessel (ASME compliance).
4. Cryogenics: Service temperatures are below -50°C.
5. Wear Resistance: The surface will be subject to abrasion or heavy traffic.
6. Heavy Structure: You are building large structural frames where weld joint efficiency (>90%) is critical.

The Bottom Line

• 5052 Aluminum is the versatile workhorse—strong enough for most uses, affordable, and easy to work with.
• 5083 Aluminum is the specialized warrior—engineered for extreme environments, heavy loads, and critical marine safety, at a premium price and fabrication effort.
