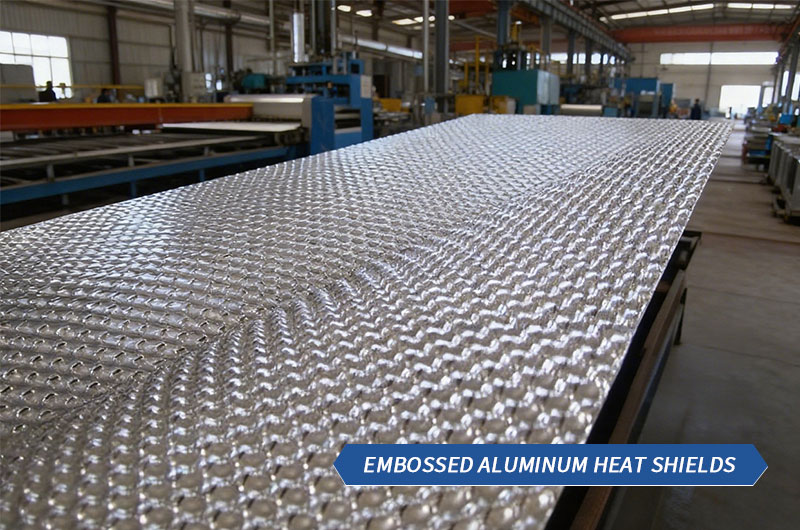

Embossed Aluminum Heat Shield Sheet

If you're an automotive engineer who works with engine bays every day, frustrated by customer complaints caused by heat seeping into the cabin;

If you're a factory manager, distressed by the cost of frequent replacement of mechanical parts damaged by excessive heat;

If you're an agricultural machinery repair technician, fed up with the heaviness and rust-prone issues of steel heat shields — then what you need is not just another "make-do" heat insulation product, but an embossed aluminum heat shield that fundamentally solves thermal management problems.

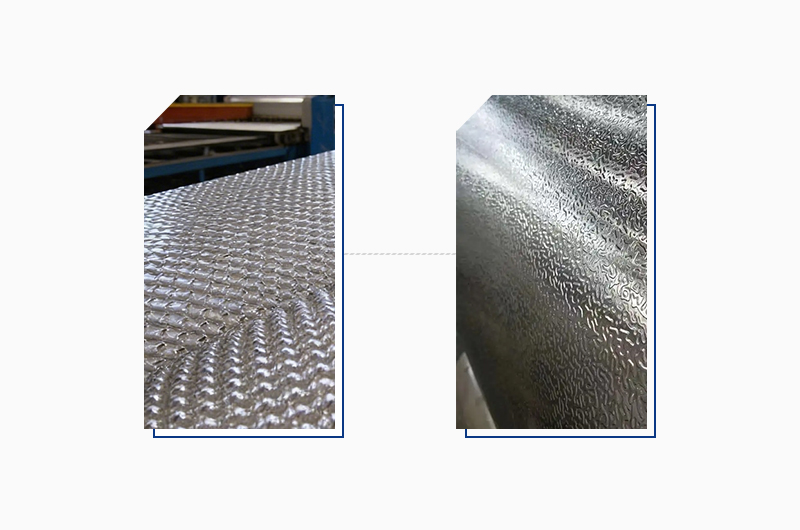

An excellent embossed aluminum heat shield sheet is not a simple combination of "aluminum + pattern", but a perfect match of "material properties, structural design, and scenario needs". Every parameter of Worthwill is derived from in-depth understanding of thermal protection pain points across different industries.

Alloy Selection of Embossed Heat Shield Sheet: Choose the Right "Foundation" for Half the Success

Thermal environments vary greatly across industries and components — some require light weight, some need corrosion resistance, and others demand high-temperature tolerance. We produce 1050, 1060, 1070, 1100, 3003, 3004, and 5052 embossed aluminum heat shield sheets, each with clear applicable scenarios:

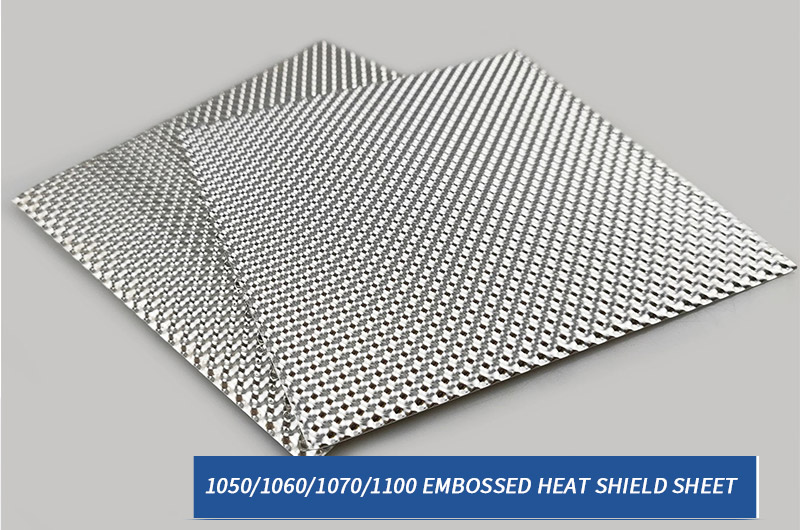

1050/1060/1070/1100 Embossed Heat Shield Sheet

• Features: Aluminum purity ≥99.5%, thermal reflectivity up to 90%, 66% lighter than steel, and excellent formability for bending and stamping;
• Applications: Suitable for automotive firewalls, EV battery packs, and low-to-moderate temperature zones;

3003 Embossed Aluminum Heat Shield Sheet

• Features: Contains 1.0–1.5% manganese, yield strength ~40% higher than 1050, and effective for high-temperature zones near exhaust systems (melting point: 643℃);
• Applications: Suitable for exhaust pipe/turbo heat shields, industrial boiler pipe insulation;

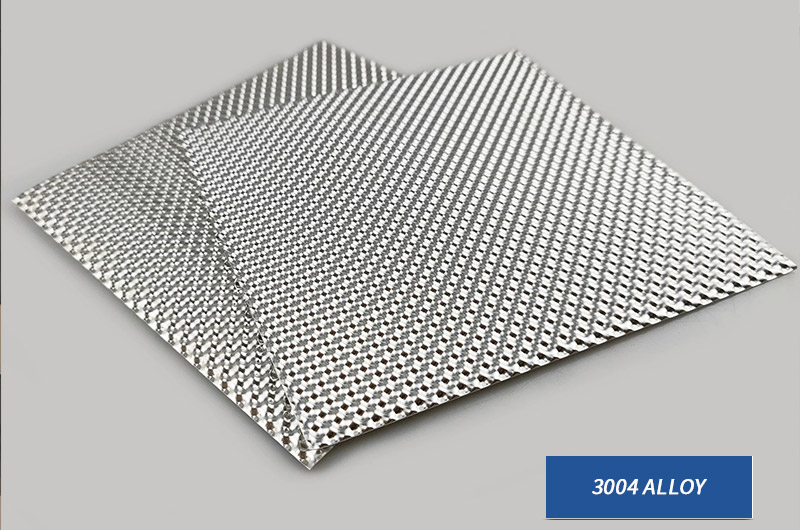

3004 Embossed Aluminum Heat Shield Sheet

• Features: Contains manganese + magnesium, higher tensile strength than 3003, suitable for double-layer structures, and impact-resistant;
• Applications: Suitable for large generator enclosures, commercial kitchen ventilation ducts;

5052 Embossed Aluminum Heat Shield Sheet

• Features: Contains 2.2–2.8% magnesium, tensile strength up to 228 MPa (H32 temper), no corrosion after 480-hour salt spray test;
• Applications: Suitable for off-road vehicle underbodies, marine exhaust pipes, and high-corrosion environments;

Selection Tip: If you're unsure which alloy to choose, just tell us two pieces of information — "Which component needs protection?" and "What is the maximum temperature it will face?" Our engineers will provide a recommended solution within 24 hours, and we also offer free samples for testing. Contact us

Embossed Aluminum Heat Shield vs. Steel Heat Shield

Before diving into sizes and patterns, you may wonder: why choose embossed aluminum over traditional steel? Here's a side-by-side comparison:

The key takeaway: embossed aluminum heat shields offer superior thermal performance at roughly one-third the weight, with far better corrosion resistance — making them the preferred choice for modern thermal management.

Sizes & Thicknesses of Embossed Aluminum Heat Shield Sheet

Many customers complain about "not finding the right size" — either buying too large and wasting material, or buying too small and having to splice (which creates heat leakage points). Worthwill completely solves this problem: we not only have a full range of standard sizes in stock, but also support custom sizes — from small 300mm×500mm sheets to large 2400mm-wide coils, we can produce them all.

Standard In-Stock Sizes

(Note: Inventory is subject to change; please contact us to confirm availability before ordering.)

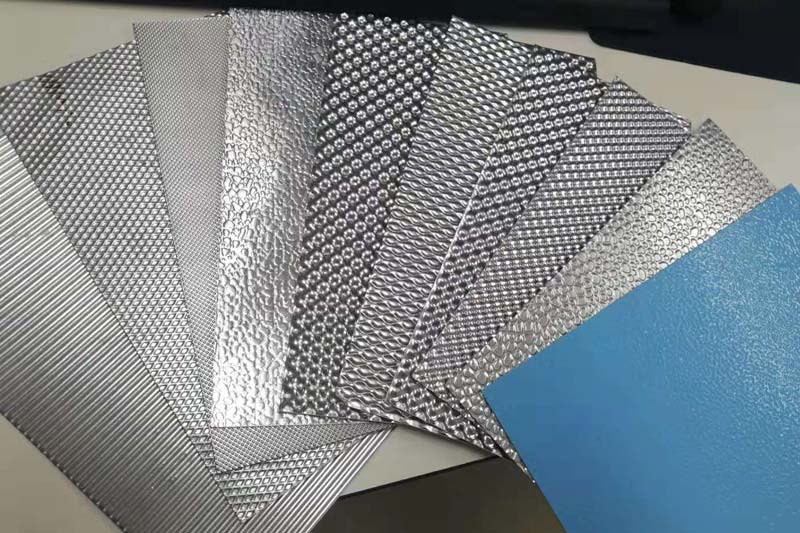

Customizable Sizes of Embossed Aluminum Heat Shield Sheet

• Thickness: 0.7–1.5mm (customizable down to 0.2mm ultra-thin);
• Width: 800–2400mm (can be cut to match your production line width);
• Length: 800–5500mm (or continuous coils for automated stamping).

A customer from an automotive parts factory commented: "Previously, we bought small sheets and spliced them to make exhaust heat shields — it was not only labor-intensive but also prone to heat leakage at joints. After switching to Worthwill's 1200mm-wide coils, we can directly stamp them into shape. Production efficiency increased by 40%, and the heat leakage issue was eliminated."

Thickness Selection: "Adequate" Is Better Than "Thicker"

Many customers mistakenly believe that "thicker sheets are more durable", but this is not always the case — choosing the right thickness ensures both protection effectiveness and cost/weight savings:

• Ultra-thin (0.2–0.3mm): Suitable for weight-sensitive scenarios, such as EV battery packs and drone motors. A drone manufacturer used 0.2mm sheets for motor heat insulation — the weight only increased by 15 g, but the motor temperature was controlled below 60℃, effectively preventing motor burnout;

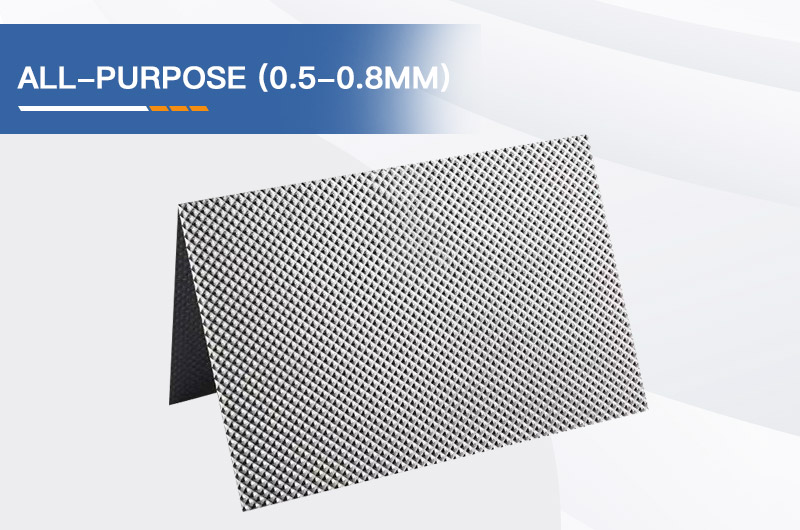

• All-purpose (0.5–0.8mm): 80% of our customers choose this range, balancing protection, weight, and cost. Suitable for most scenarios like automotive engine bays and agricultural machinery exhaust pipes;
• Heavy-duty (1.0–3.6mm): For high-temperature, high-stress scenarios, such as industrial boilers and heavy-duty truck exhaust pipes. A steel mill used 3.0mm sheets for heat insulation of blast furnace hot air pipes — the sheets withstood continuous radiant heat exposure for 4 years without deformation.

Embossing Design: More Than "Aesthetics" — The Key to "Functionality"

Embossing is the "core technology" of Worthwill heat shields — many customers discover after use that patterns not only improve thermal reflectivity but also solve practical problems like structural rigidity, noise reduction, and installation convenience.

We currently produce 4 mainstream embossing patterns, each with a clear functional positioning:

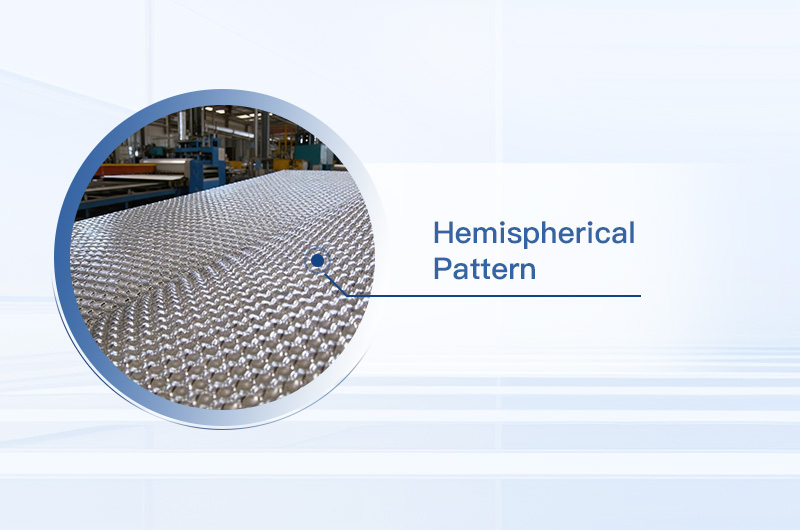

Hemispherical Pattern

• Structural Features: Protrusion diameter 5–8mm, spacing 10mm;
• Core Advantage: Largest thermal reflection area (up to 90% reflectivity);
• Application Scenarios: Automotive firewalls, exhaust pipe surrounds;

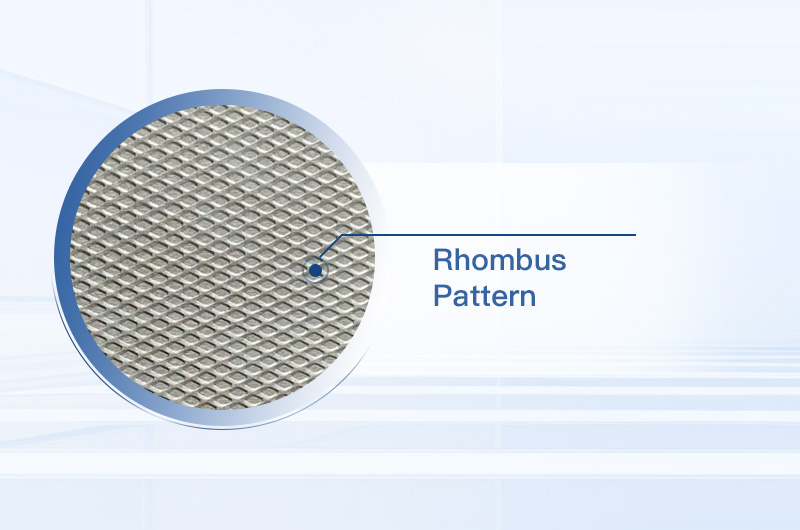

Rhombus Pattern

• Structural Features: Side length 10mm, protrusion height 0.8mm;
• Core Advantage: Highest structural rigidity, resistant to bending and deformation;
• Application Scenarios: Industrial pipes, heavy-duty truck underbodies;

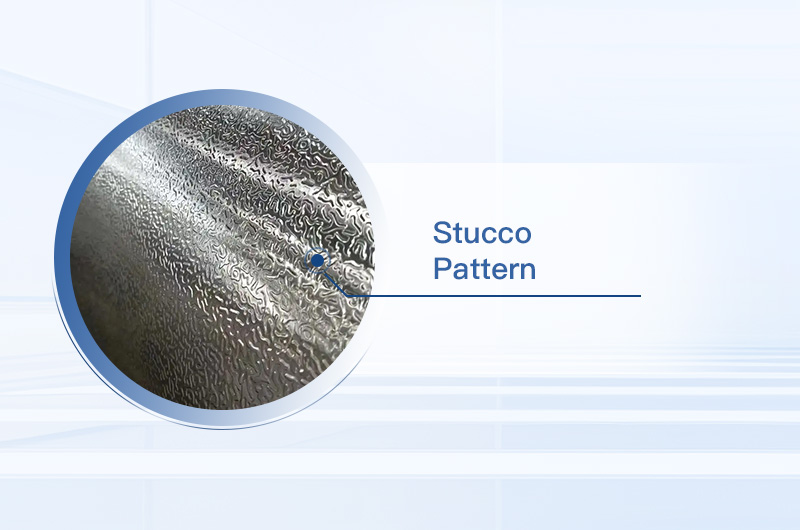

Stucco Pattern

• Structural Features: Made from stucco embossed aluminum, irregular texture depth ~0.3mm;
• Core Advantage: Excellent noise reduction (reduces noise by up to 15%);
• Application Scenarios: Engine bays, generator enclosures;

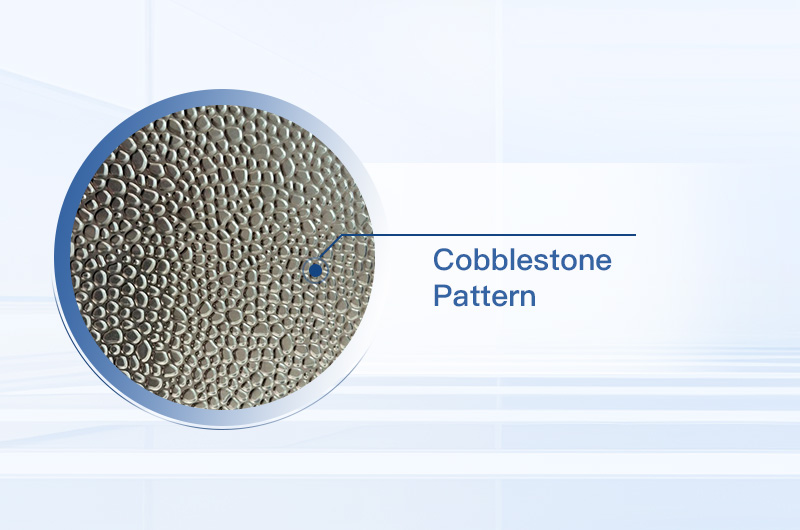

Cobblestone Pattern

• Structural Features: Circular protrusions (diameter 3–5mm), spacing 8mm;
• Core Advantage: Aesthetic appearance, suitable for visible and decorative parts;
• Application Scenarios: Automotive hood liners, yacht decks.

Performance Comparison: For 0.5mm-thick 1060 alloy sheets, the hemispherical pattern achieves approximately 30% higher thermal reflectivity than flat sheets — when installed near exhaust pipes, the temperature of surrounding components drops by up to 12℃. The rhombus pattern, meanwhile, provides significantly higher panel rigidity than flat sheets, often eliminating the need for additional brackets (direct mounting is possible).

Industry-Wide Scenario Adaptation: From Automotive to Industrial, Land to Marine

The advantage of Worthwill embossed aluminum heat shield sheets lies in "strong versatility without compromise" — whether in harsh environments (high temperature, high humidity, high corrosion) or precision scenarios (strict weight/accuracy requirements), a suitable solution can be found.

Automotive Industry: Full-Scenario Protection "From Engine to Trunk"

The automotive industry has one of the most complex thermal protection needs — engines, exhaust pipes, battery packs, fuel tanks — each component has a unique thermal environment. Worthwill offers "customized solutions" for every zone:

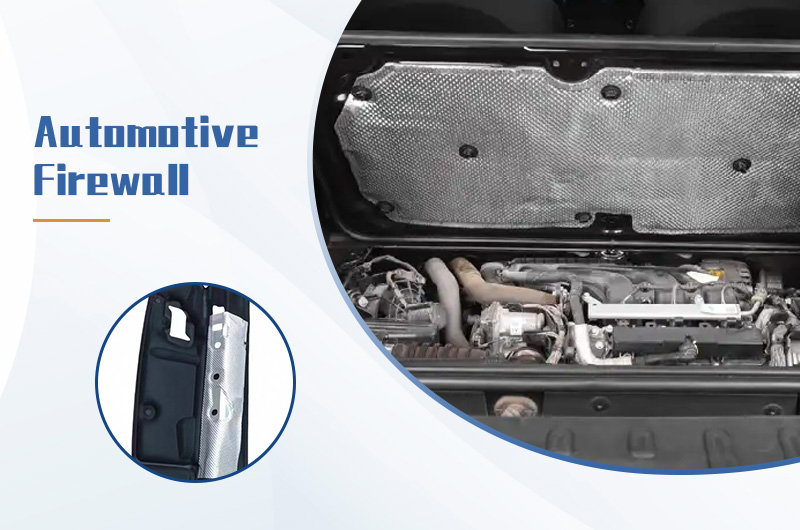

Automotive Firewall

• Recommended Configuration: 1060 + 0.5mm + Hemispherical Pattern;
• Core Problem Solved: Blocks engine radiant heat from entering the cabin;
• Customer Feedback: Cabin temperature reduced by up to 8℃ in summer, and heat-related complaints decreased by 90%;

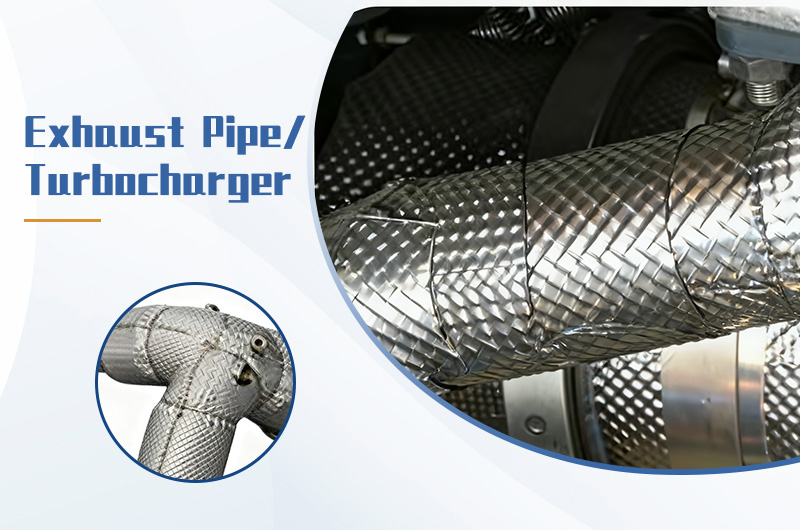

Exhaust Pipe / Turbocharger

• Recommended Configuration: 3003 + 0.8mm + Rhombus Pattern;
• Core Problem Solved: Reflects intense radiant heat from exhaust systems, protecting surrounding wiring harnesses and hoses;
• Customer Feedback: Wiring harness replacement cycle extended from 6 months to 3 years;

EV Battery Pack

• Recommended Configuration: 1050 + 0.2mm + Stucco Pattern;
• Core Problem Solved: Ultra-lightweight, prevents battery aging due to high temperature;
• Customer Feedback: Battery cycle life extended by up to 20%, contributing to noticeable range improvement;

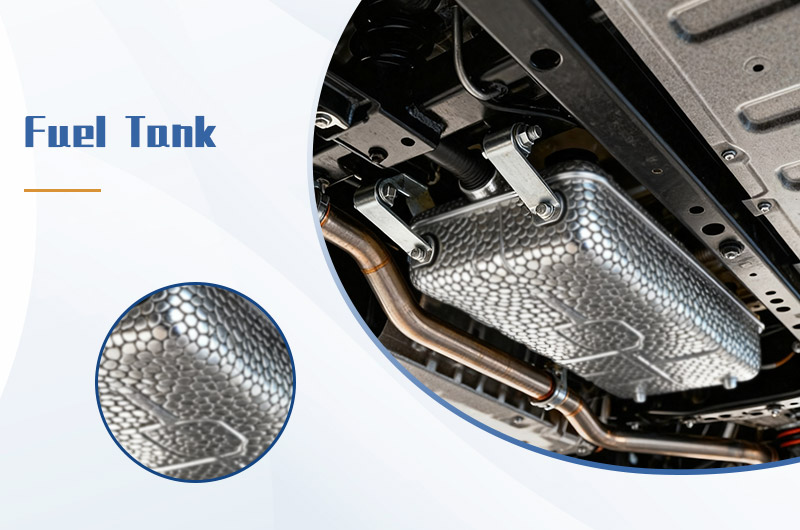

Fuel Tank

• Recommended Configuration: 5052 + 0.5mm + Cobblestone Pattern;
• Core Problem Solved: Corrosion-resistant, prevents fuel tank heating by nearby exhaust pipes;
• Customer Feedback: Fuel tank heat-related failure rate reduced from 5% to 0.5%;

Transmission Tunnel

• Recommended Configuration: 3003 + 0.5mm + Rhombus Pattern;
• Core Problem Solved: Reduces transmission heat from entering the cabin;
• Customer Feedback: An SUV manufacturer reported improved cabin comfort: "No cold feet in winter, no hot legs in summer."

Industrial Sector: Withstands "High Temperature, High Humidity, High Corrosion"

Industrial equipment often operates continuously 24/7 — excessive heat not only shortens equipment life but also poses safety risks. Worthwill's industrial-grade heat shields are designed to address these pain points:

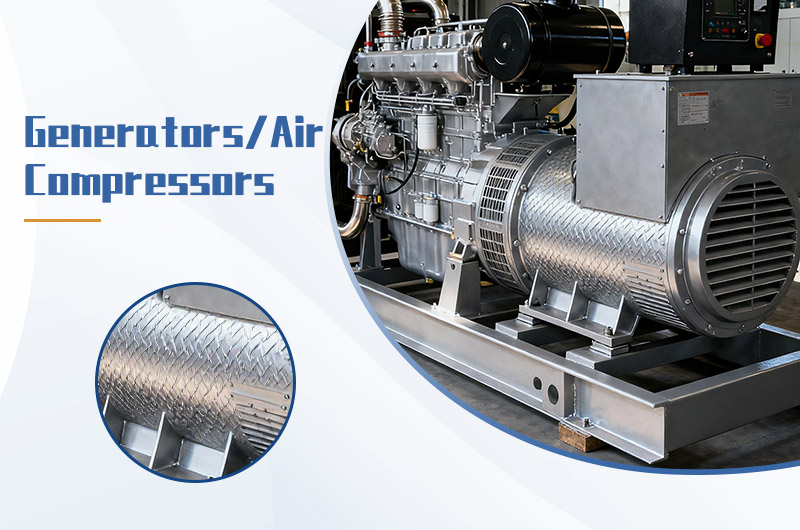

Generators / Air Compressors

Recommended configuration — 3004 + 1.0mm + Rhombus Pattern. It withstands motor radiant heat and reduces noise (from 85 dB to 72 dB). A data center reported a 60% decrease in generator failure rate after installation.

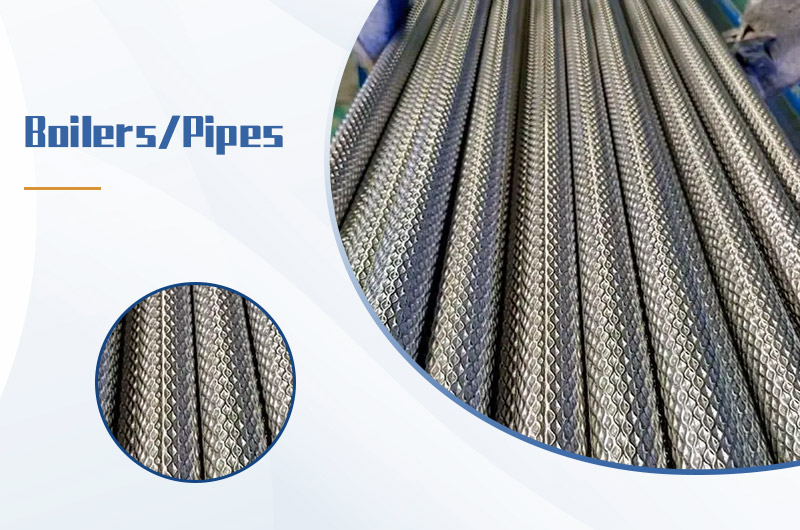

Boilers / Pipes

Recommended configuration — 5052 + 1.5mm + Hemispherical Pattern. It effectively reflects high-intensity radiant heat and resists corrosion from boiler scale and moisture. A thermal power plant extended the pipe insulation replacement cycle from 1 year to 5 years after adoption.

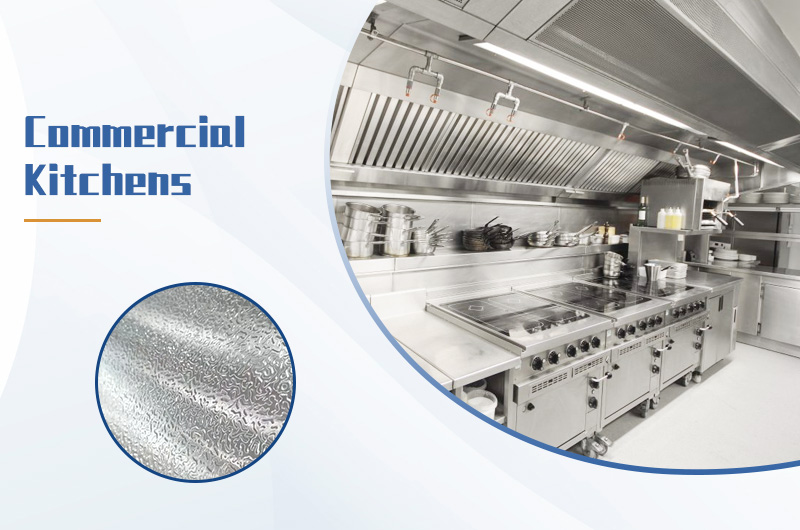

Commercial Kitchens

Recommended configuration — 1100 + 0.8mm + Stucco Pattern. It resists oil stains and is easy to clean. A restaurant chain reported that kitchen wall temperature dropped from 60℃ to 35℃, significantly improving the working environment for chefs.

Agricultural Machinery: Endures "Field Work"

Agricultural machinery encounters corrosive substances like mud, fertilizers, and pesticides during field work. Traditional steel heat shields can rust within 6 months, but Worthwill's aluminum heat shields solve this problem with long-lasting corrosion resistance:

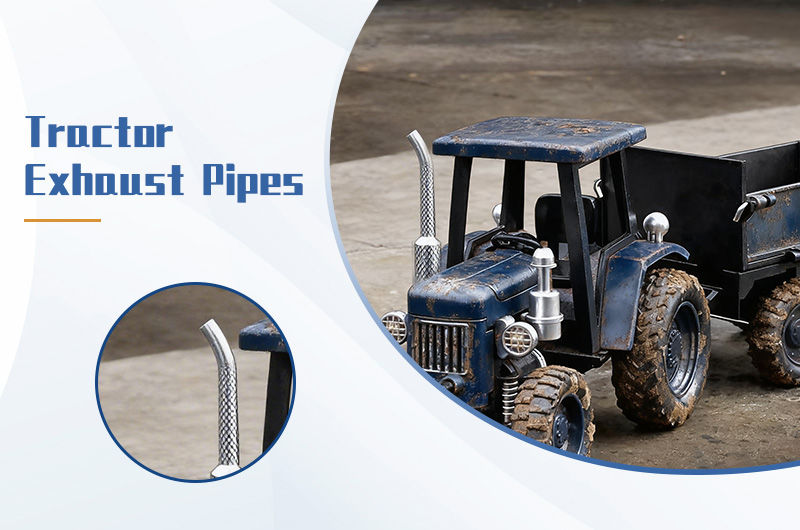

Tractor Exhaust Pipes

5052 + 1.0mm + Rhombus Pattern. Corrosion-resistant to mud and agricultural chemicals, no rust after 3 years of use in saline-alkali fields.

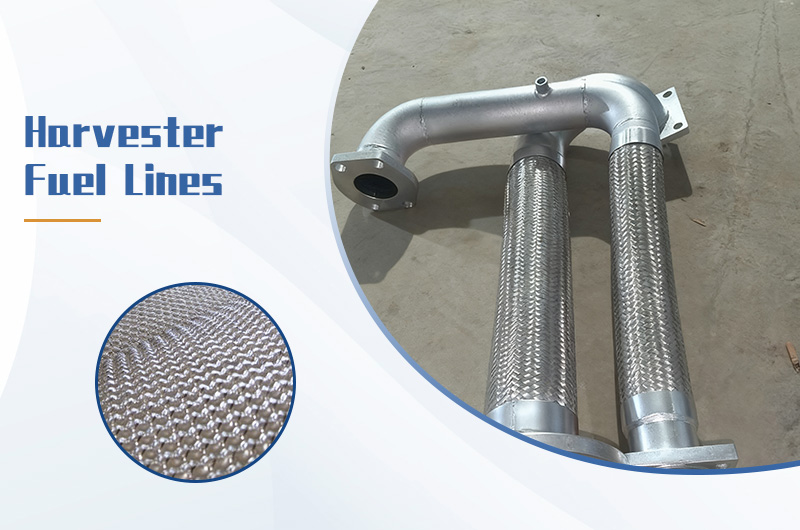

Harvester Fuel Lines

1100 + 0.5mm + Hemispherical Pattern. Lightweight (adds no significant load to machinery) and easy to install with simple hand tools.

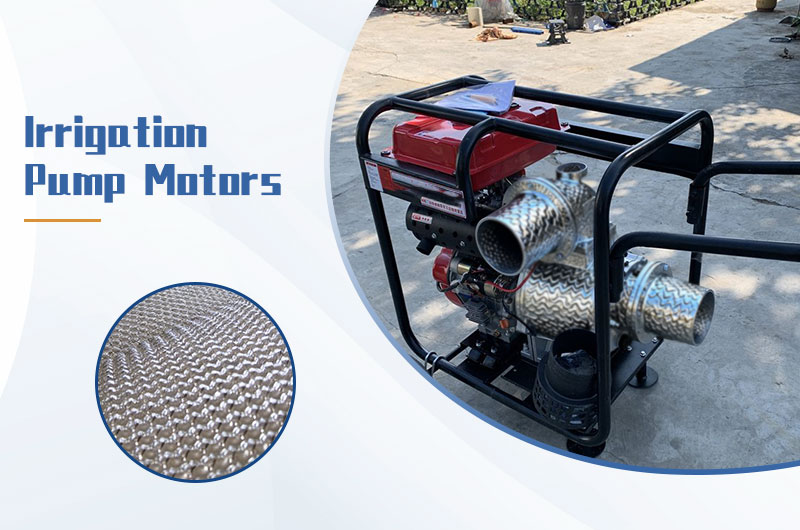

Irrigation Pump Motors

1060 + 0.3mm + Stucco Pattern. Reduces motor temperature from 75℃ to 55℃, effectively doubling the pump service life.

An agricultural machinery dealer commented: "Previously, customers kept coming back to replace rusted steel heat shields. Now that we recommend Worthwill's aluminum heat shields, we haven't received a single after-sales call in a year, and customer repurchase rate has increased by 30%."

Marine & Aerospace: Resists "Seawater & High Altitudes"

Marine and aerospace industries have extremely high material requirements — light weight, corrosion resistance (especially to seawater and salt spray), and reliable performance across temperature extremes. Worthwill's 5052 and 1050 alloy heat shields are proven choices for these demanding sectors:

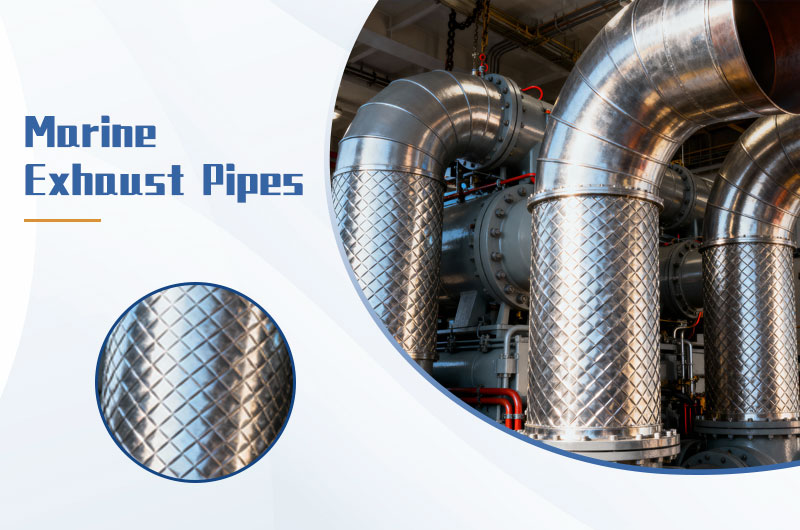

Marine Exhaust Pipes

5052 + 1.2mm + Rhombus Pattern. Corrosion-resistant to seawater, no rust after 3 years of service, and 66% lighter than equivalent steel heat shields.

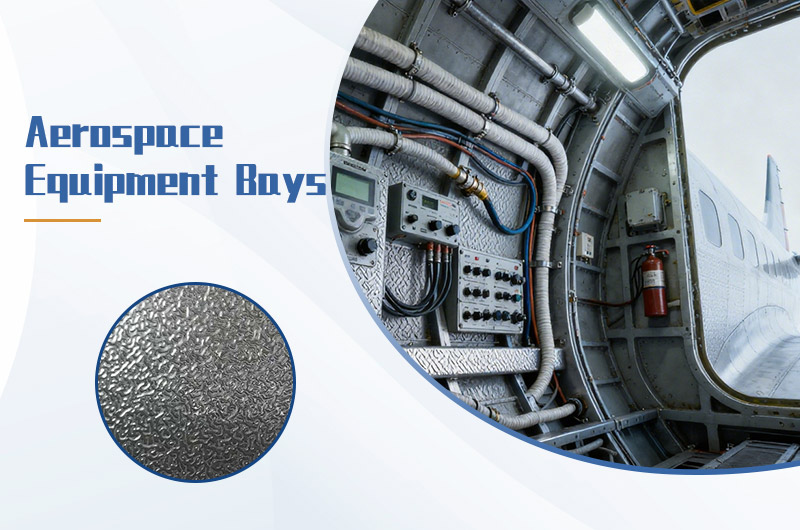

Aerospace Equipment Bays

1050 + 0.2mm + Stucco Pattern. Ultra-lightweight (minimal impact on takeoff weight) and withstands temperatures from −40℃ to +200℃, maintaining stable performance in high-altitude environments.

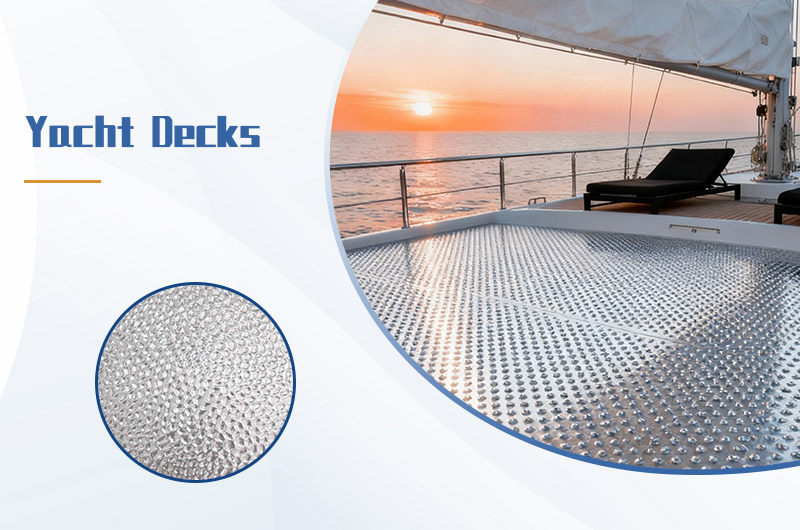

Yacht Decks

5052 + 1.0mm + Cobblestone Pattern. Aesthetic appearance, resistant to seawater immersion, and heat-insulating (prevents deck scalding from sun and engine heat).

Our Production & Customization Capabilities: We Can Make What You Need

As a source factory, Worthwill's core competitiveness lies in "customization capabilities" — whether it's special sizes, irregular structures, exclusive patterns, or brand logos, we can meet your needs.

OEM Customization: Full-Process Service from "Blueprint" to "Finished Product"

Many customers have unique design needs, such as: "I need a curved turbo heat shield" or "I want to print our brand logo on the sheets". Worthwill's OEM service process is simple and efficient:

1. Needs Communication: Provide blueprints or samples, and specify material, thickness, pattern, and quantity;
2. Plan Confirmation: Our engineers conduct feasibility analysis, optimize the design (e.g., suggesting adding reinforcing ribs to improve rigidity), and provide a quotation;
3. Sample Production: Free production of 1–3 samples for your testing and confirmation;
4. Bulk Production: Start bulk production after sample approval, with full process visibility (you can check production progress at any time);
5. Logistics Delivery: Choose express, freight, or container shipping according to your needs to ensure safe delivery.

A special vehicle factory once needed a "U-shaped exhaust heat shield" — after failing to find a supplier capable of producing it, they turned to Worthwill. We used 3003 alloy sheets and achieved the design through stamping + bending processes, with a bulk production cycle of only 15 days.

Quality Control: Only "Qualified" Sheets Leave the Factory

We understand that "no mistakes are allowed in thermal protection products", so we have established a rigorous "3 Inspections + 1 Destruction" quality control system:

• 1st Inspection — Material Testing: Use a spectrometer to verify alloy composition, ensuring compliance with standards (e.g., aluminum purity ≥99.6% for 1060 alloy);
• 2nd Inspection — Dimensional Testing: Use a laser thickness gauge to control thickness tolerance (±0.03mm), and calipers to verify length/width tolerance (±0.1mm);
• 3rd Inspection — Performance Testing: Randomly select 1% of products for 480-hour salt spray testing, high-temperature aging testing, and 180° bending testing (no cracks allowed);
• 1 Destruction — Batch Destruction: If any product fails a test, the entire batch is destroyed — no rework or discounted sales.

This strict quality control ensures that Worthwill's product qualification rate remains above 99.9%.

Packaging & Logistics: Ensure "Zero-Damage" Delivery

Although embossed aluminum heat shields have high rigidity, they may still be deformed by compression during transportation. Worthwill designs exclusive packaging solutions for different order types:

• Small-Batch Sheets: Separated by 5mm-thick cardboard, 10 sheets per pack, with a waterproof plastic bag on the outside;
• Large-Batch Coils: Fixed on wooden pallets, wrapped with waterproof film + anti-collision foam to prevent rolling during transportation;
• International Orders: Shipped in containers with internal supporting wooden frames to ensure no damage during long-distance sea transportation.

An overseas customer commented: "Previously, 30% of the sheets we bought from other suppliers were deformed and unusable after arriving overseas. Worthwill's packaging is professional — none of the 1,000 sheets were damaged, and they could be put into production directly."

How to Choose the Right Embossed Aluminum Heat Shield Sheet?

Step 1: Clarify Protection Needs

Answer 3 key questions: Which component needs protection (e.g., engine, exhaust pipe)? What is the maximum temperature it will face (radiant heat or ambient temperature)? Are there special environmental conditions (corrosion, vibration, weight limits)?

Step 2: Match Product Parameters

Determine the right alloy, thickness, and embossing pattern using the selection guides above. If unsure, contact our engineers for free consultation.

Step 3: Test Sample Performance

Before bulk purchasing, apply for free samples (up to 3 sheets, only shipping fees apply) to test thermal protection, installation fit, and durability in real scenarios. Place a bulk order only after confirming satisfaction.

About Embossed Aluminum Heat Shield Sheet Price

The price of embossed aluminum heat shield sheets varies based on the alloy grade, embossing pattern, thickness, and processing requirements. Generally, the price is calculated as the aluminum ingot price plus a processing fee. Factors that influence the processing fee include:

• Alloy type (5052 costs more than 1060 due to higher alloy content);
• Thickness (ultra-thin sheets below 0.3mm require more precise rolling);
• Embossing pattern (complex patterns like hemispherical cost more than stucco);
• Order quantity (larger orders benefit from economies of scale).

For an accurate quote, send us your specifications and we'll respond within 24 hours.

Frequently Asked Questions

What temperature can embossed aluminum heat shields withstand?

It depends on the alloy. The 1000 series (1050/1060/1100) has a melting point of approximately 645–657℃ and is suitable for reflecting radiant heat in moderate-temperature zones (e.g., firewalls, battery packs). The 3003 alloy (melting point: 643–654℃) and 5052 alloy (melting point: 607–649℃) offer higher strength at elevated temperatures, making them suitable for zones near exhaust systems. Note: aluminum heat shields work primarily by reflecting radiant heat (up to 90%), so the shield's surface temperature remains well below the heat source temperature.

Can embossed aluminum heat shields replace steel heat shields?

Yes, in most applications. Embossed aluminum heat shields offer higher thermal reflectivity (90% vs. 60–70%), 66% weight reduction, and far superior corrosion resistance. They are already the standard choice for major automotive OEMs. For extremely high-temperature direct-contact applications (above 500℃ sustained), consult our engineers for the optimal alloy and thickness recommendation.

What is the minimum order quantity (MOQ)?

For standard in-stock sizes, there is no MOQ — even a single sheet can be shipped. For custom sizes, the typical MOQ is 500 kg (approximately 370 sheets of 1000mm × 1000mm × 0.5mm). We also offer trial-order options for first-time customers.

How long does custom production take?

Standard sizes ship within 3–5 business days. Custom sizes and OEM orders typically take 10–20 business days depending on complexity and quantity. Rush orders can be accommodated — please inform us of your deadline when inquiring.

Do you provide samples?

Yes. We offer up to 3 free samples per inquiry — you only pay shipping. Samples are typically shipped within 3 days of request confirmation.

Take Action Now: Start Your "Efficient Thermal Protection" Journey

If you're tired of equipment failures, cost waste, and customer complaints caused by excessive heat, it's time to choose Worthwill embossed aluminum heat shields — a thermal protection solution truly designed to "solve problems".

1. Inquire for a Quotation: Call +86 157 8058 3990 (WhatsApp/Phone) or email sales@worthwillaluminium.com, specifying your needs (alloy, size, quantity). We will provide a detailed quotation within 24 hours;
2. Apply for Samples: If testing is needed, request free samples during consultation — we will ship them within 3 days;
3. Confirm the Order: After sample approval, confirm order details (production cycle, logistics method) and pay a deposit to start production;
4. Receive & Inspect: Upon receipt, unpack and inspect the goods. Pay the balance only after confirming the quantity and quality are correct.

Why Choose Worthwill?

Direct Factory — Not a Middleman

We control the entire process from aluminum ingot smelting to finished product delivery, enabling full specifications, stable quality, fast response, and flexible customization — even small and medium-sized enterprises can purchase easily.

Global Certification Endorsement

Compliant with mainstream international standards including China's GB/T 33227-2016, US ASTM B209, Japan's JIS H4000, and EU EN 485. We have also obtained the IATF 16949 automotive industry certification (audited by BSI), supplying major OEMs worldwide with zero quality complaints for over 3 years.

Full-Process Independent Production

Smelting of high-purity aluminum ingots (99.7%), 4 imported embossing lines (4 patterns, adjustable depth 0.3–1.2mm), ±0.05mm precision cutting, and 3-stage quality inspection (composition / tolerance / corrosion resistance). Unqualified products are destroyed — never reworked or sold at a discount.

Your Thermal Protection Partner

We provide more than just products — we solve thermal protection problems and create value. We look forward to cooperating with you.
